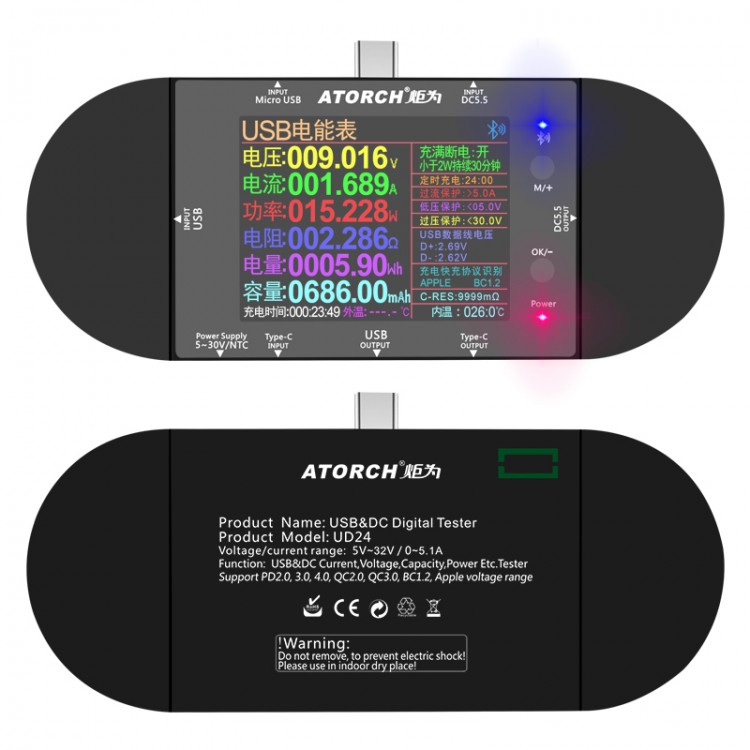

ATORCH UD24 USB Voltmeter Voltage Current Meter DC Digital Tester 2.4" Screen Multiple Interfaces

ATORCH UD24 USB Voltmeter Voltage Current Meter DC Digital Tester 2.4" Screen Multiple Interfaces

Notice:
- There is a layer of protective film on the screen, please tear off it when you are ready to use.

Download File:
1.User manual, PC software installation instructions, PC software and APP for Android: http://www.mediafire.com/folder/9r973dly7uvui/UD24
2. For IOS APP: search for E_test in the APP store for iPhone to download
3. For Android APP: search for E-test in Google play to download

Description:
It can be used as a USB tester or as a DC voltmeter. It is a high-end product created by the wisdom of the industry!

It supports online testing for Android, IOS, and PC system APP.

Technical Parameters:
- Voltage measurement range: 5V~32.0V
- Current measurement range: 0.00~5.10A
- Timing time: 999 hours 59 minutes 59 seconds
- Input interface: Type-C/Micro USB/USB
- Output interface: Type-C/USB
- Timing charging reminder setting: 24-hour countdown (any set value)
- USB D+ voltage range: 0V~2.99V
- USB D- voltage range: 0V~2.99V
- Refresh time: > 500mS/ times
- Measurement rate: about 0.5 times/sec
- Alarm mode: siren sound + display prompt
- Display type: 2.4" color screen with Chinese and English measurement interface
- Self-consumption current: < 0.02A
- Working temperature: 10°C to +60°C
- Working humidity: 10 to 80°C (no condensation)
- Working pressure: 80~106kPa

Package Included:
- 1 x UD24 Tester
- 1 x Metal Storage Box

Note:
- Battery is not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

UD24 Startup screen and function test interface:
1. 6-digit high-precision interface
2. USB Meter Display
3. DC Meter Display
4. DC Percentage Display


QC3.0/2.0 Quick charge protocol triggers automatic detection of multiple quick charge protocols:


Five-fold intelligent protection, safe charging and double safety:
According to their actual needs, the user can set the full power-off switch, full power-off parameter conditions, timing charging time, and over-current, over-voltage, low-voltage and other parameters, so that this equipment can be fully automated and unattended according to your needs. The set parameters run automatically, and the real-time monitoring well automatically cuts off the power according to the corresponding settings to protect your charging equipment in all aspects. From then on, your charging becomes more safe, interesting and playable!
1. FCOP: Full power Cut off (ON/OFF), you can set it yourself when the power is < 1W for 1 minute, it will power cut off
2. TC: Timed charging (ON/OFF), you can set the time period of 01:00-24:00 to charge regularly, when it reaches the setting, it will automatically power cut off
3. Over-current protection: you can set the range of 0.0A-5.1A by yourself
4. Over voltage protection: 01V-36V range can be set by yourself
5. Low voltage protection: 00V-35V range can be set by yourself

360° rotating screen on all sides satisfies reading at any angle

UD24 line resistance measurement function for Android/Type-C cable resistance detection
- According to the connection method shown below, first measure the current battery no-load voltage, and then add the output load. At this time, you can read the current battery internal resistance
- The internal resistance calculation formula of this table: (no-load voltage-loaded voltage) / current current = battery internal resistance


USB and Type-C Test Application Range:
- Connect and test various USB and Type-C interfaces and various battery devices
- Multi-port design-multi-use and multi-play

Battery power percentage:
- This meter can freely set the corresponding full voltage value and the lowest value of the discharged voltage according to the battery type in the background by the user. After the system calculates the percentage according to the threshold set by the user, it will display the percentage discoloration through the battery symbol (when it is greater than 30%, it will display green; when it is less than 30%, it shows yellow; when it is less than 10%, it shows red).
- When the display range is between 1% and 100%, the red light of POWER on the panel lights up, and the relay output interface outputs a high level at this time to control the relay to connect the current path. When it exceeds the range of 1%~100%, the red light goes out and the relay outputs a low level to disconnect the current path, so as to ensure the safety protection of charging and discharging of the battery, avoid the risk of damage to the battery due to overcharging and over-discharging, and can also be used for other purposes of over-voltage and low voltage disconnection protection.


Battery internal resistance detection function
- According to the connection method shown below, first measure the current battery no-load voltage, and then add the output load. At this time, you can read the current battery internal resistance.
- The internal resistance calculation formula of this table: (no-load voltage-loaded voltage) / current current = battery internal resistance


DC Power Supply Test Application Range:
- Connect and test various DC power supplies and equipment
- Multi-portion design, one thing, multi-use, multiple play

1) For Apple Mobile APP:
Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection DL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and Measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc.

2) For Android phone APP:
Scan the QR code on the back of the host to download the corresponding APP software or APP for Android: search E-test at Google play to down load. After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of DL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can)

3) Computer Bluetooth wireless online APP:
First add the Bluetooth device to the serial port device of DL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it. Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online

Voltage accuracy evaluation
Precision testing of large professional instruments


Current accuracy evaluation
Precision testing of large professional instruments


Product background parameter setting:
UD 24 Menu V5.7
01: Chinese English
02: Clear cumulative data
03: Voltage calibration: 005.110V
04: Current calibration: 000.000A
05: Display Brightness: 9
06: Standby Brightness: 9
07: Enter Standby Time: 60S
08: Temp Correction ([n) 026.9
09: Temp Correction ou): 035.6C
10: BAT Vol percentage (Low): 08.00V
11: BAT Vol percentage (Full): 16.60V
12: Over-Power : 100W
13: Default Settings
14: Exit
