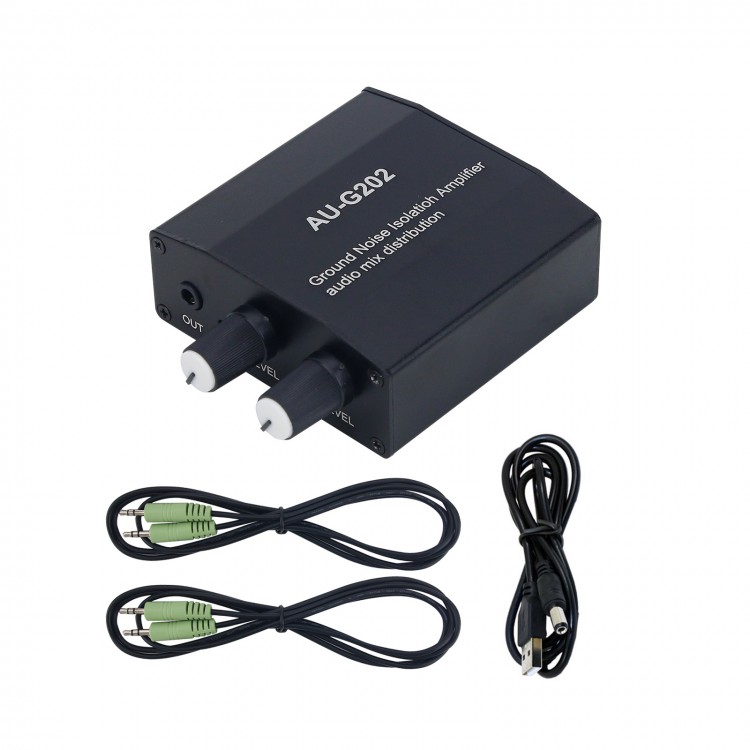

AU-G202 Ground Loop Noise Isolator Audio Mixer Kit w/ 2 Inputs 2 Outputs for Computer Game Consoles
Description:
The supply voltage of the AU-G202 is DC5-18V, the quiescent current is about 40mA, the output impedance is 16Ω-600Ω, and the output power is 900mw*2/32Ω.
Its connectors are 3.5mm stereo sockets. With either input, it supports two-way output. In addition, it supports two-way input and mixed output.
Two input ends can input two different audio sources at the same time. The audio sources can be plugged in at the same time and will not affect each other. The output ends can be connected to two headphones or two amplifier speakers at the same time.
Attention:
- The product can only eliminate interference generated by common ground, but cannot eliminate noise caused by other causes.
Specifications:
- Size: about 6.4 x 6.3 x 2.5cm/2.5 x 2.5 x 1"
- Weight of main unit: 91g/0.2lb
Package Included:
- 1 x AU-G202
- 2 x Audio cables
- 1 x Power adapter
