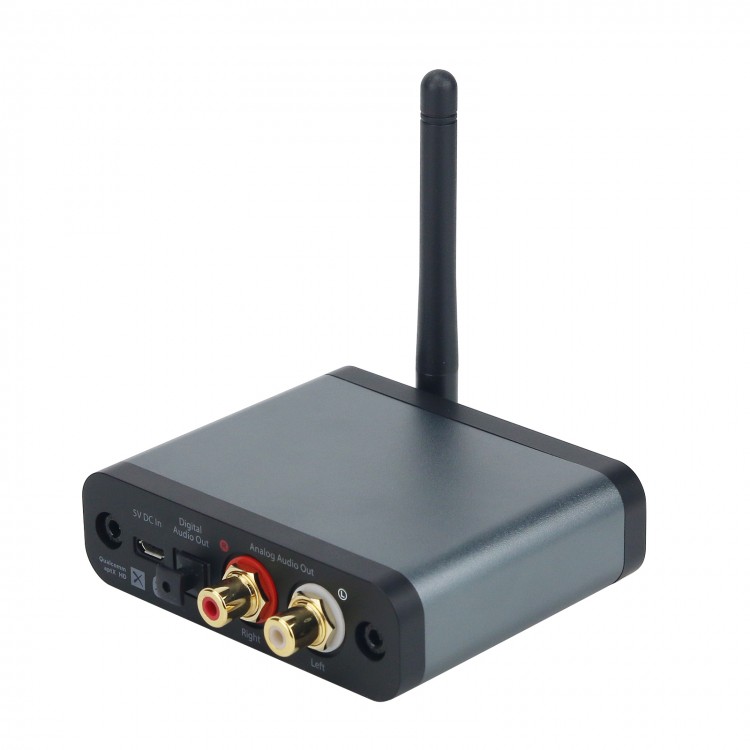

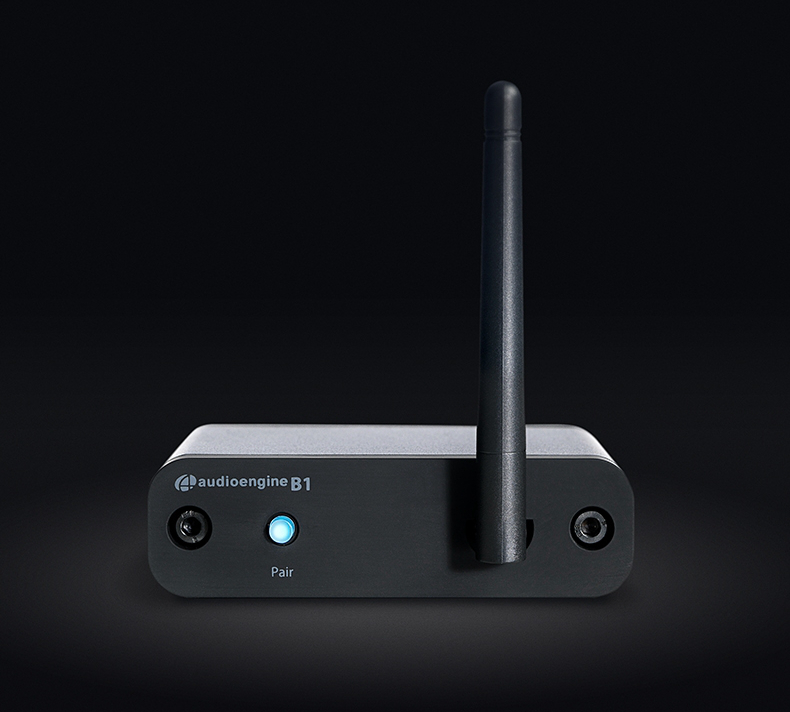

Audioengine B1 Mini Hifi Bluetooth 5.0 DAC Desktop Audio Receiver Decoder 30M/100FT Transmission

Audioengine B1 Mini Hifi Bluetooth 5.0 DAC Desktop Audio Receiver Decoder 30M/100FT Transmission

Features:
- Bluetooth 5.0, wider coverage, faster transmission rate, lower power consumption, backward compatibility, compatible with the old Bluetooth versions
- Encoding technology for aptX HD: This audio technology ensures that devices that support wireless Bluetooth can provide high-definition audio. This technology protects audio data during audio transmission, providing a listening experience better than CD.
- Independent DAC high-performance: AK4396 is well known for its high signal-to-noise ratio and low distortion. It is a professional high-performance decoder chip. >100dB signal-to-noise ratio, distortion + noise <0.02%
- External antenna, ultra-long transmission distance. The transmission distance of ordinary Bluetooth is often less than 10 meters, while the B1's precision-tuned external antenna allows the wireless transmission distance up to 30M/100FT
- Optical digital output: The pre-installed optical output port of B1 allows you to connect your own audiophile decoder to give full play to the performance of the audio system
- Connect easily, enjoy remotely
- Hifi level circuit: For Hi-Fi level products, the importance of power processing, circuit and peripheral design is often higher. Our experienced engineers have realized the precision configuration of triple voltage regulator and filter in such a small volume

Product Parameters:
- Bluetooth version: Bluetooth 5.0 audio
- Compatible mode: for aptX HD, aptX, AAC, SBC
- Required: 5V 200mA
- Effective distance: 100 feet (30 meters)
- Decoding chip: For AKM AK4396
- Power filter: 3-level redundancy adjustment
- Frequency response range: 10Hz~20kHz (+/-0.5dB)
- Crosstalk: >-86dB
- Delay: 30ms
- Input: Bluetooth
- Output: Stereo analog RCA/digital optical (SPDIF)
- Maximum output level: 2.0V RMS
- Output impedance: 57 ohm
- Signal to noise ratio: >100dB (DC to 20kHz)
- Distortion + noise: <0.02% (1kHzFS96kS/s)
- Input bit depth: 24bit (over sampling)
- Input bit rate: determined by Bluetooth

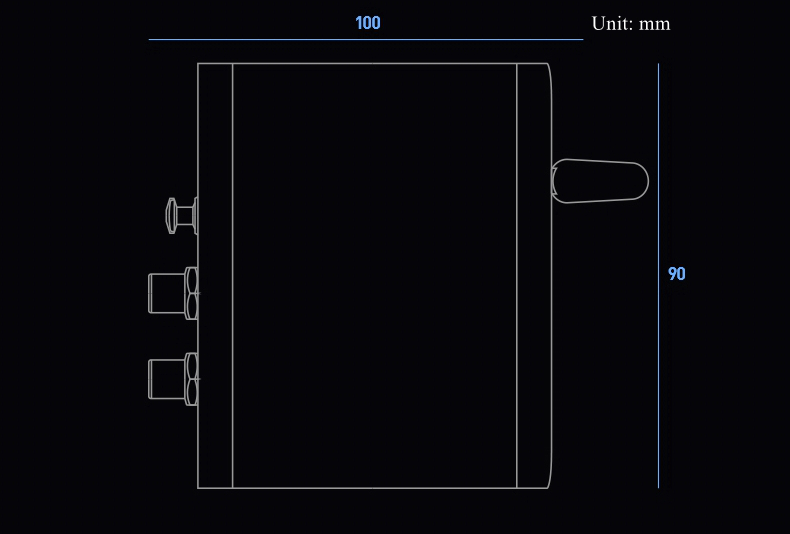

- Product size: 90 x 100 x 25mm
- N.W.: 377g

Package Included:
- 1 x Set of DAC

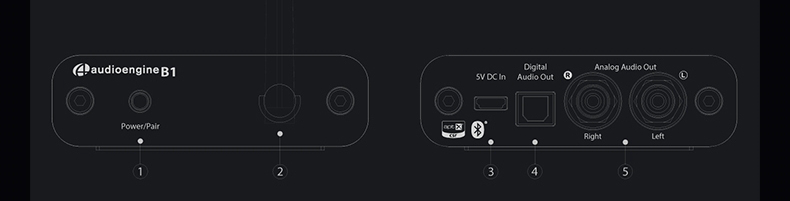

① Power Switch/Pair Button
② External Antenna
③ Power Supply Input
④ Optical Output
⑤ Analog Audio Output

Note:
Before purchasing, please check whether your amplifier interface matches our product. If you are not sure, you can take photos and contact us for confirmation. If the product is returned due to interface problems, we will not accept it. Thank you!

FAQ:
Q1: What does the LED indicator on B1 mean?
A1: If it is always on, it means that B1 turns on and is currently connected to a Bluetooth-enabled device. If it turns on and flashes, it means that B1 is powered on, but not currently connected to your device. If it is off (plugged in), it means that B1 is on standby and not connected to your device. In this state, the Bluetooth device can still search for B1. So just use your device to connect to B1 and it will be automatically woken up.

Q2: The LED light turns bright orange instead of white, what does it mean?
A2: When the LED light changes from white to bright orange, it means that B1 works in the mode for aptX HD or aptX, which is a more HD Bluetooth encoding format.

Q3: If I watch a movie or music video, will my music be delayed?
A3: The delay time of B1 is about 30ms (milliseconds), so when you watch a video, you will not feel that the audio and video are out of sync.

Q4: Can B1 be used on partition walls? Will it affect signal transmission?
A4: Actually, the maximum working distance depends on your Bluetooth transmitter device. According to our laboratory test, B1 can receive a Bluetooth signal up to 30 meters away when separated by a wall.

Q5: My computer for Windows cannot work normally with B1.
A5: B1 is compatible with various Bluetooth devices that support streaming audio and is plug-and-play. For Windows computers, please make sure that your operating system has been updated to the latest version. Visit the official website of your computer manufacturer to get the latest version Bluetooth driver and technical support.
