AUTOOL SDT-202 Smoke Automotive Diagnostic Leak Detector Smoke Leakage Test 12V



I. Packing List.
1.Main Unit
2.Hook (with hand-tighten nuts)
3.Rubber stopples (with serial specification)
4.Taper stopple
5.Taper pipe
6.30ml oil bottle
7. User manual

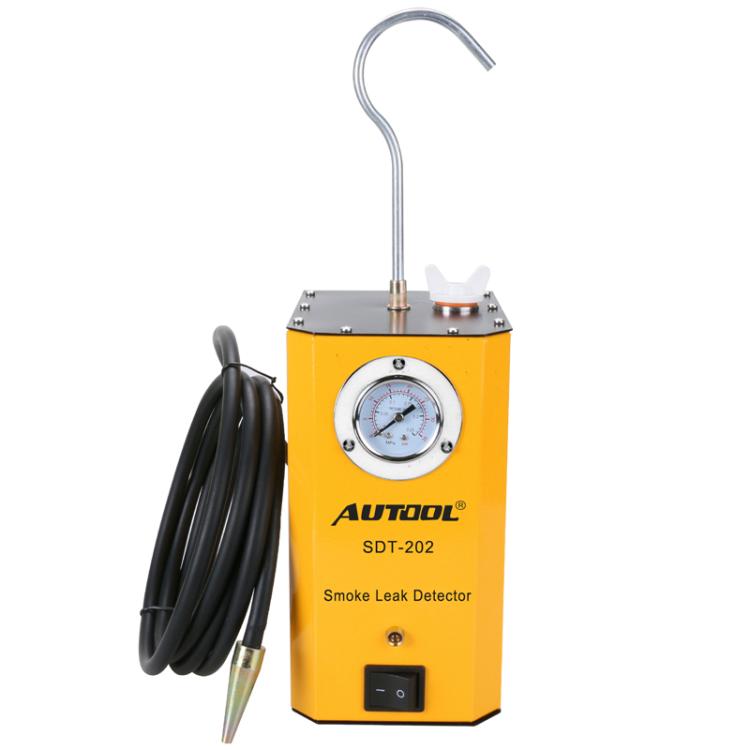

II. Main Unit Structure:
SDT-202 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank.
SDT-202 is for all pipe systems except EVAP.

Hook: To hang the detector when detecting
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Smoke output tube: The smoke outlet which connecting with detection port
Power clip: To connect with vehicle battery. The voltage is DC12V.

Cautions:
1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2.New oil can be filled with only when the smoke is light,and it can’t be filled over 15ml every time.
3.Before filling new oil, please pour out the remaining oil in the detector.
4.Please replace the detector oil regularly.

III. Maintenance
With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the service life of smoke generated part, so please change smoke and oil regularly.
1.Before filling new oil, please pour out the remaining oil in the detector.
2.When the smoke output has water drops, please replace with new oil.
3.Liquid paraffin and baby oil are OK.
4.Please fill new oil with equipped oil bottle

IV. Product Information
Power: DC12V, vehicle battery
Smoke output value: 6l/min
Built-in air supply
