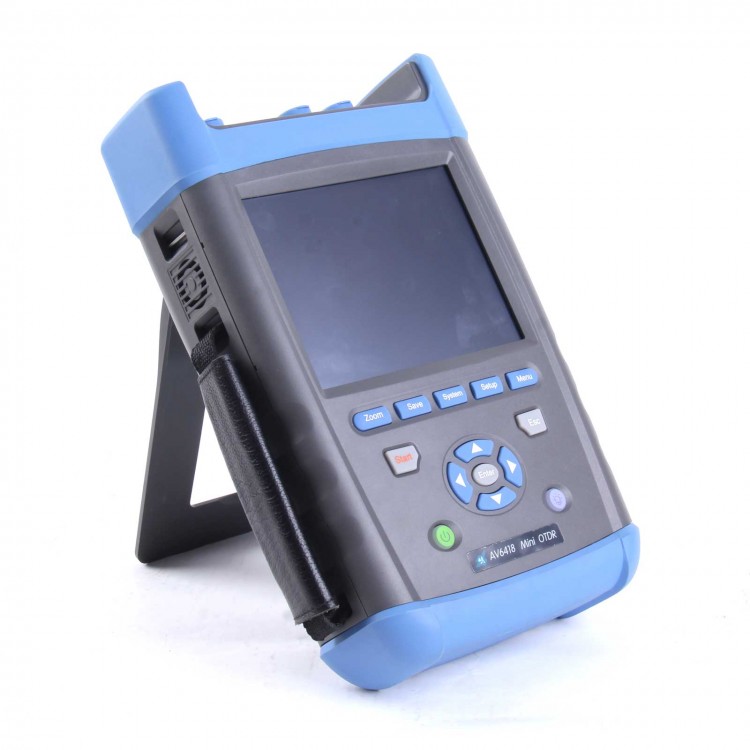

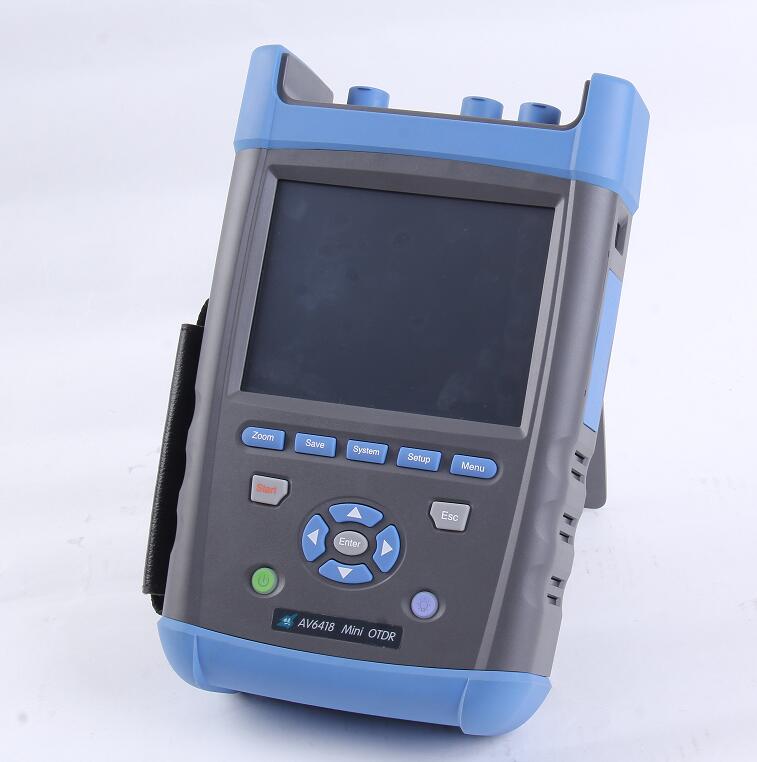

AV6418 OTDR Optical Time Domain Reflectometer for FTTx Network Testing

AV6418 OTDR Optical Time Domain Reflectometer for FTTx Network Testing

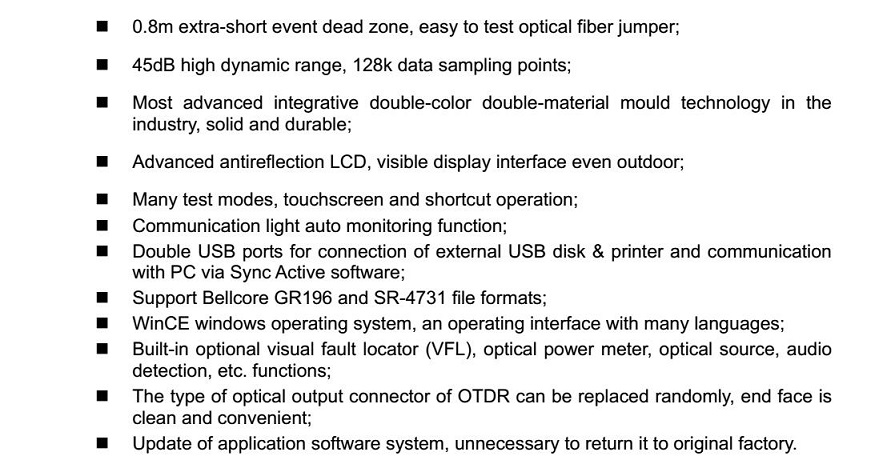

Description:
- AV6418 OTDR is a high performance measuring instrument with multifunction designed for testing FTTx network.It offers three measuring modes:manual mode (including real time mode and average mode),auto mode and dead zone mode.

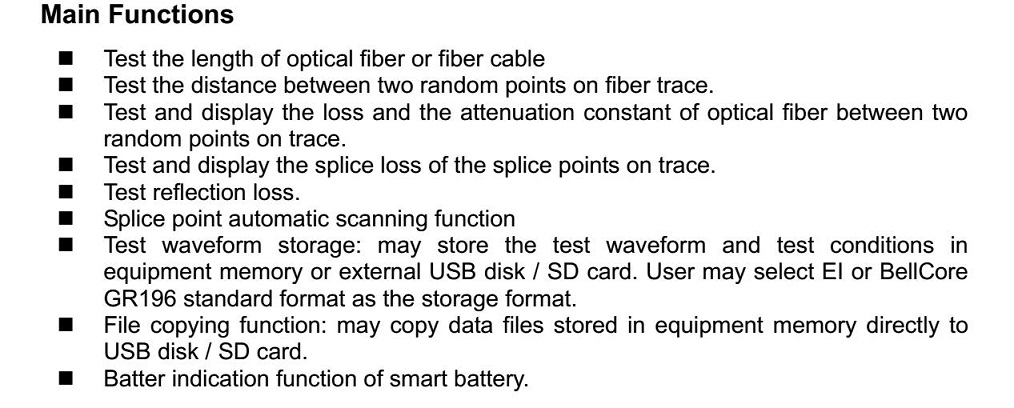

- It's mainly used to measure the physical characteristics of optical fiber under test,such as the length,the transmission loss and the splice loss etc.It can also locate the faults or breaks of optical fiber.It's widely applied in the manufacture,construction and maintenance in optical fiber communication system.

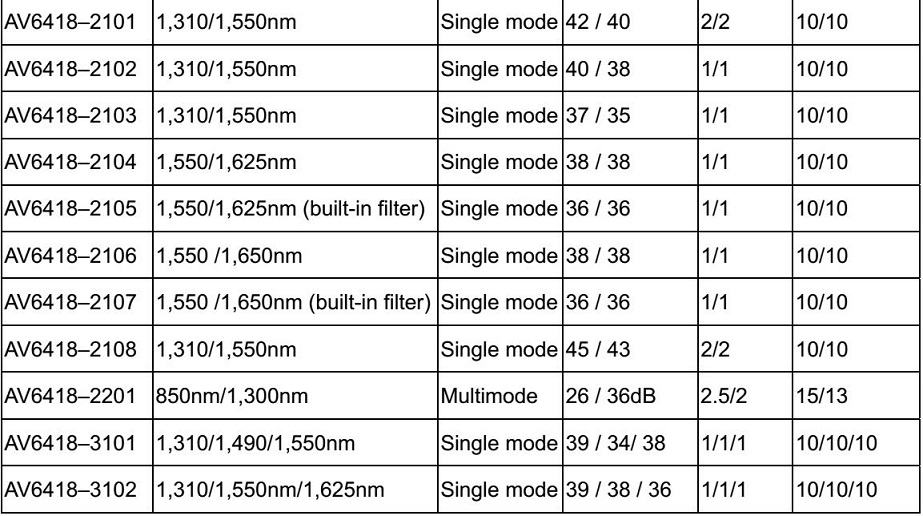

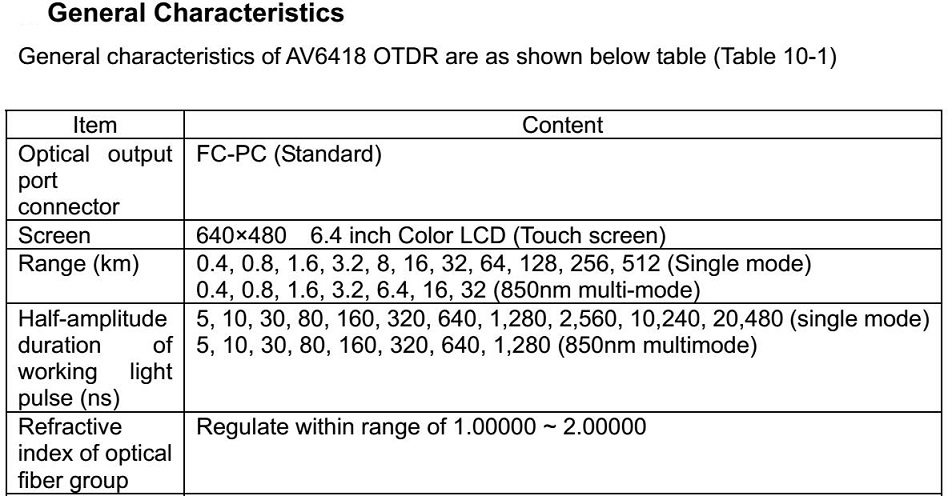

Specifications:

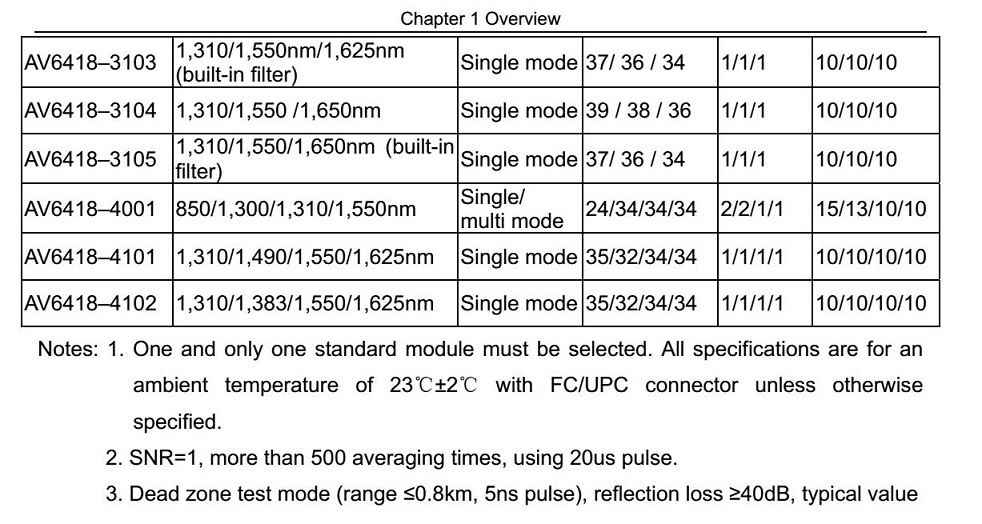

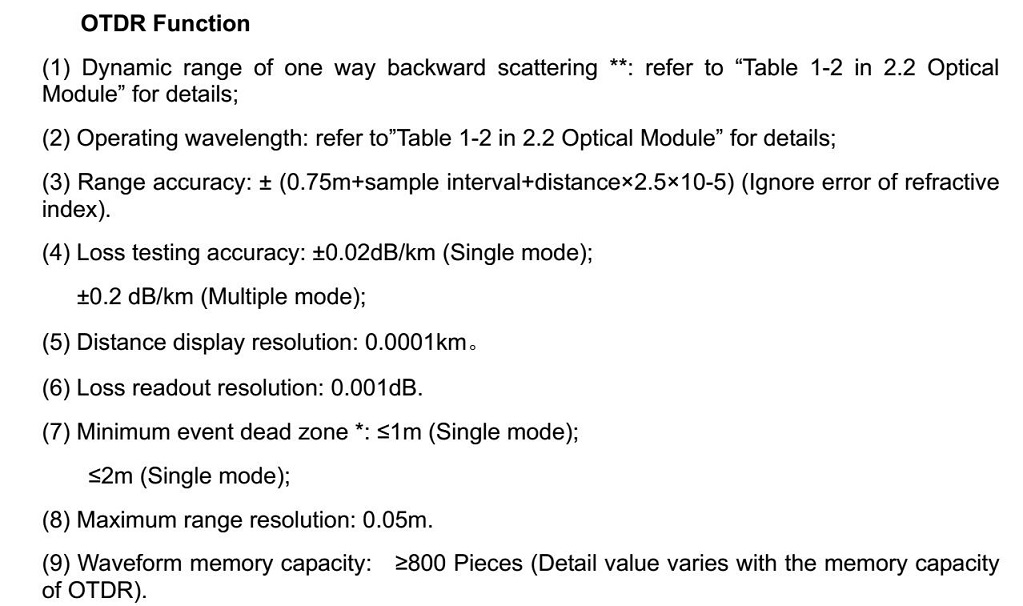

- Dynamic range:42/40dB
- Distance uncertainty:±(1m + sample space + measurement distance×0.003%)
- Sampling resolution:0.05,0.1,0.2,0.5,1,2,4,8,16m
- Distance range:0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(SMF)；0.4,0.8,1.6,3.2,6.4,16,32 (MMF of 850nm)
- Pulse width:5,10,30,80,160,320,640,1280,5120,10240,20480ns；5,10,30,80,160,320,640,1280 (MMF of 850nm)
- Loss threshold:0.01dB
- Sampling points:Up to 128K
- Linearity:0.05dB/dB
- Loss resolution:0.001dB
- Memory capacity:≥800traces(built-in),≥65500traces(2GB SD storage)
- Group refractive index setting:1.00000 to 2.00000 (0.00001steps)
- Distance unit:km,m,kft,ft

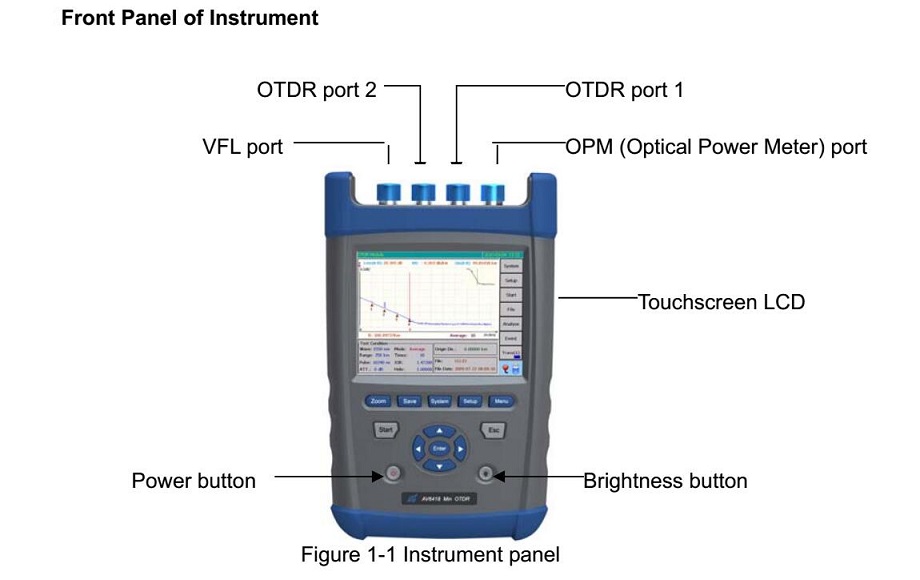

- Display:640*480,6.5 inch TFT-LCD (touch screen)

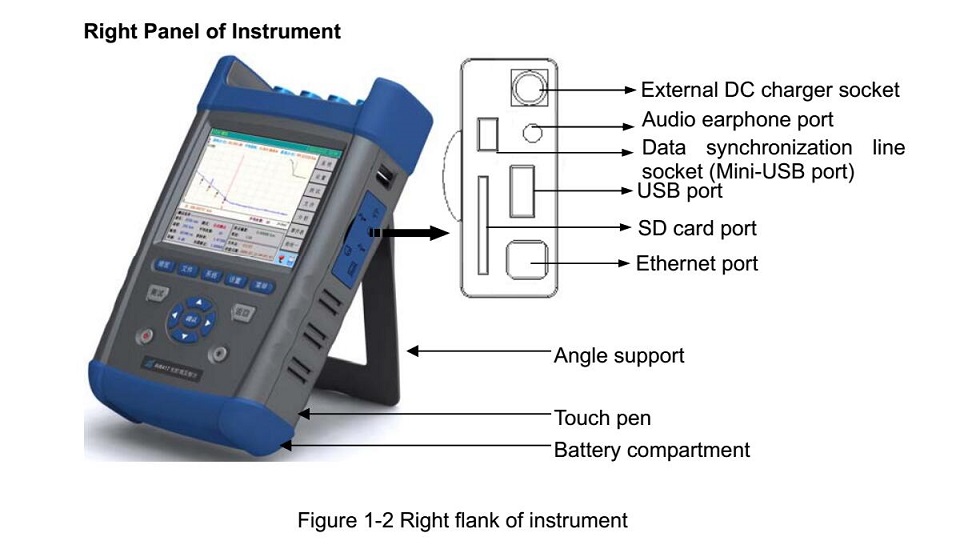

- Interface:USB,Min-USB,Ethernet,earphone,SD
- Optical connector:FC/SC/ST (universal connector)

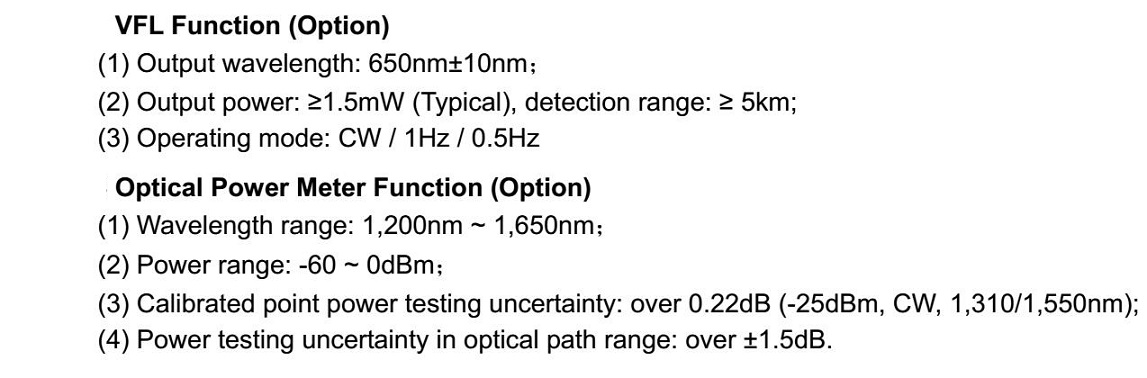

- VFL:650nm±10nm,2mW(typical);CW/1Hz

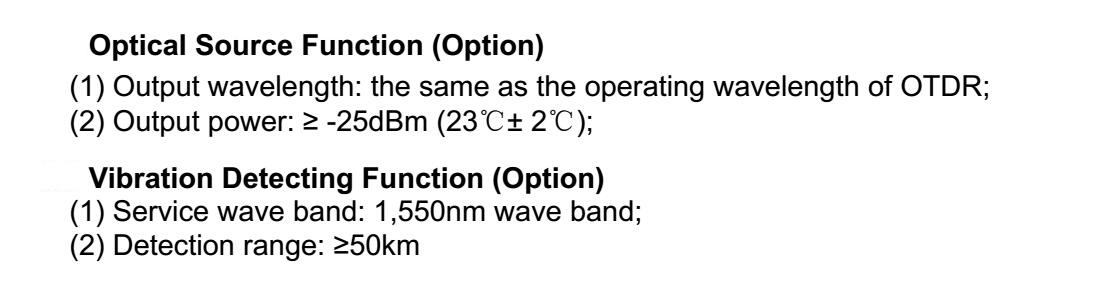

Optical Power Meter:
- Wavelength range: 1270nm to 1700nm
- Measurement range: -60 to 3dBm
- Measurement accuracy:+-5%(-10dBm, CW)

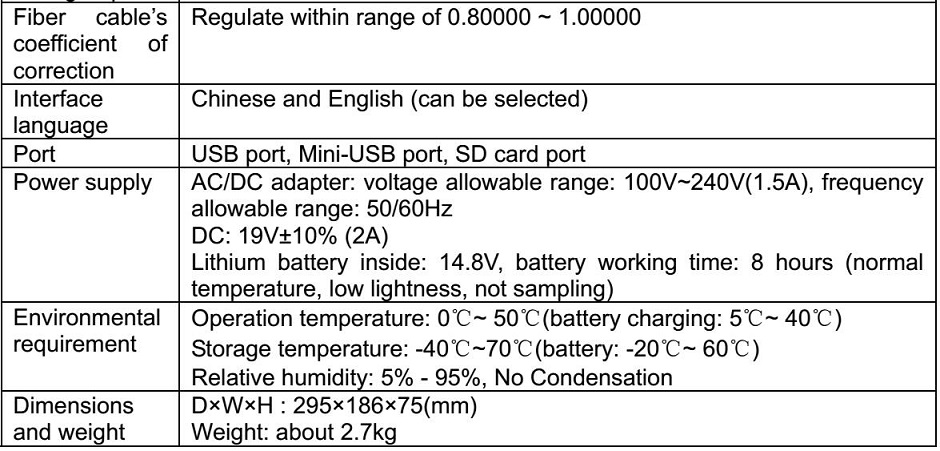

Power supply:
- AC adapter 100 to 240V,50/60Hz,1.5A;DC:19V±2V(2A)

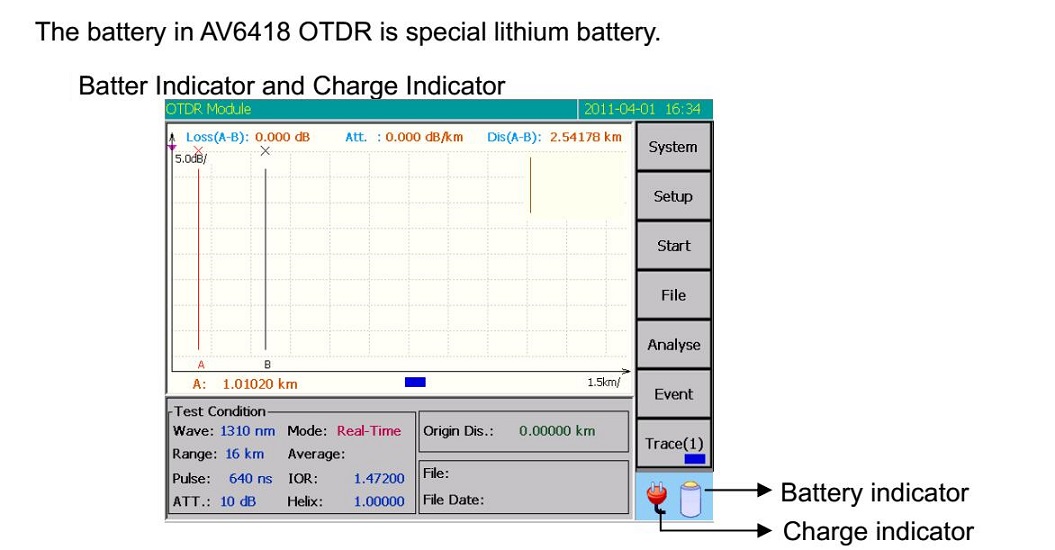

- Built-in Lithium battery:14.8V,operating time≥8 hours

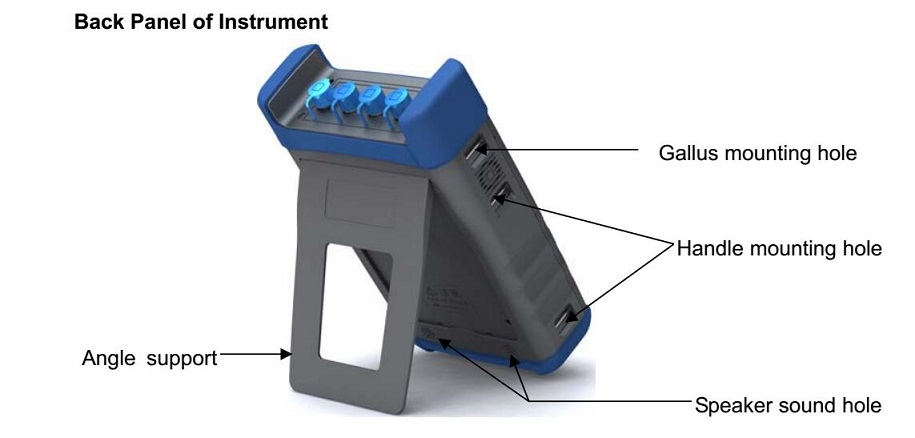

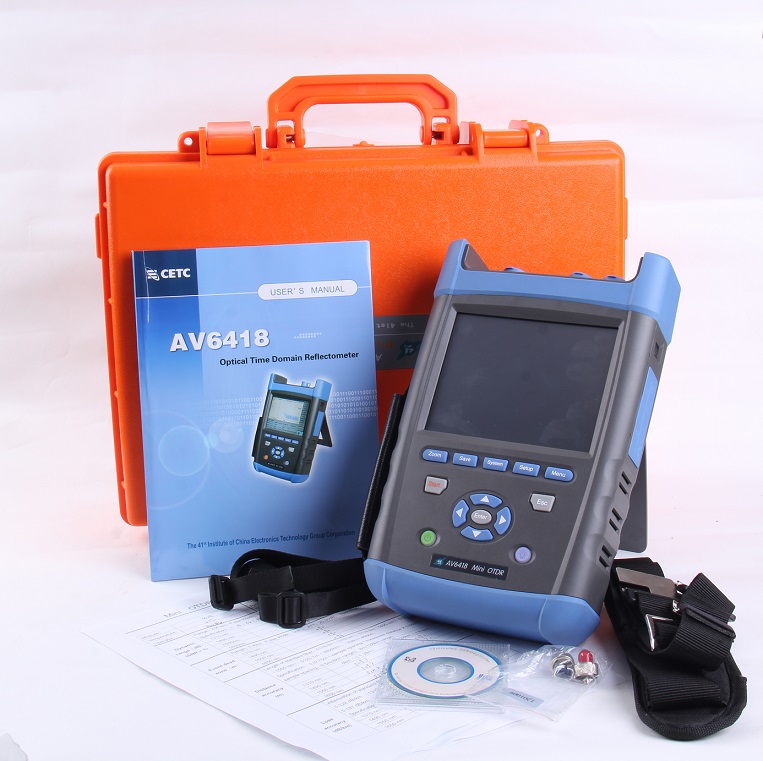

Package List:
- 1 x AV6418 OTDR
- 1 x Power line
- 1 x AC/DC power adapter
- 1 x ST adapter
- 1 x SC adapter
- 1 x Quality certification
- 1 x Engineering plastic case
- 1 x User manual
