AWithZ UF20B Supercapacitor Spot Welding Machine Battery Spot Welder (US Standard) with 99 Gears

AWithZ UF20B Supercapacitor Spot Welding Machine Battery Spot Welder (US Standard) with 99 Gears

Features:
UF20B Super-capacitor Spot Welder
* The UF20B Super-capacitor Spot Welder delivers concentrated energy for welding 0.4mm materials! With thousands of welding tests and in-depth material research, we've optimized six key factors to achieve precise adjustments for countless applications. Featuring a modern aesthetic design, this high-quality spot welder excels in both performance and appearance.

Professional Welder for Multiple Scenarios
* Widely applicable for: Power tool repairs, household appliance maintenance, small to medium battery assembly, button battery welding, smartphone repairs, metal splicing and more.

Millisecond Energy Concentration & Dual-Pulse Technology
* Powerful performance—capable of welding 0.4mm thickness and even copper materials!

Brand New Spot Welding Machine
* It supports millisecond energy concentration and powerful dual-pulse technology.
* Capable of welding: nickel-plated sheets up to 0.4mm, copper sheets up to 0.15mm, steel sheets up to 0.4mm and pure nickel sheets up to 0.25mm
* 10.5KW maximum output power
* 1750A maximum current
* 0.4MM maximum welding thickness

High-Quality Supercapacitor & Continuous Welding Power
* No recycled or used capacitors! Only premium new super-capacitors are selected, ensuring safety, durability, and reliability.
* More Stable: Millisecond energy burst with dual-pulse technology; stays cool during continuous use, no tube blowouts.
* Longer Endurance: Real-time energy storage supports continuous welding, with 100% improved endurance.
* More Powerful: 10,500W high power delivers strong welding for 0.4MM thickness; capable of welding copper!
* Long Lifespan: Up to 500,000 welding cycles – built for durability.

Thousands of Fine-Tuned Modes for Precision Welding
* AWithZ has identified six core factors and developed over ten thousand fine-tuning modes to match the characteristics of different materials and thicknesses.
* Paired with an intelligent handheld welding pen or used with a foot pedal, the welder machine ensures stronger, more precise, and highly efficient welds!
* 99 adjustable levels
* Manual and automatic modes
* Preheating time: 1–10ms
* Interval time: 1–20ms
* Trigger time: 0.5–5.0s
* Continuous welds: 1–2 times

Smart Handheld Welding Pen for Precise Triggering
* On top of automatic welding, AWithZ introduces a smart handheld welding pen, allowing you to precisely control trigger timing for more detailed and accurate spot welding.
* Detachable Alumina-Copper Welding Pins: Only high-purity alumina-copper alloy for durability & safety.
* Manual Welding Button: Enables you control the trigger timing with precision.
* Thick Copper Pen Wire: Features low resistance and low energy loss, and stays cool during use. Total length is 40cm.
* Comfortable to Use

Multiple Welding Modes for Flexible Use
* AT Automatic Mode: Intelligent sensing with automatic welding trigger. Fast and efficient—ideal for batch operations.
* MT Smart Handheld Mode: Trigger welding via manual button control. Precise and detailed—perfect for precision tasks.
* MT Foot Pedal Mode: Trigger welding using a foot pedal. Also precise and detailed—suitable for delicate and accurate operations.

Multiple Safety Protections
* Equipped with a high-quality safety chip, temperature sensors, and intelligent safety algorithms, this device ensures secure operation through both software and hardware protection.

Additional Features
* Quality chip
* Impact protection
* Voltage regulation protection
* Short-circuit protection
* Low-temperature protection
* High-temperature protection
* Overcharge protection
* Over-discharge protection

Specifications:
* Brand: AWithZ
* Product Name: Spot Welder
* Model: UF20B
* Gear Adjustment: 99-level adjustment
* Capacitor Type: Super-capacitor
* Shell Material: Aluminum Alloy + Plastic
* AC Input: 100~240V 50-60Hz
* Output Voltage: 6V (MAX)
* Output Current: 1750A (MAX)
* Output Power: 10.5KW (MAX)
* Product Dimensions: Approx. 181mm x 95mm x 80mm
* Net Weight: Approx. 1.25kg

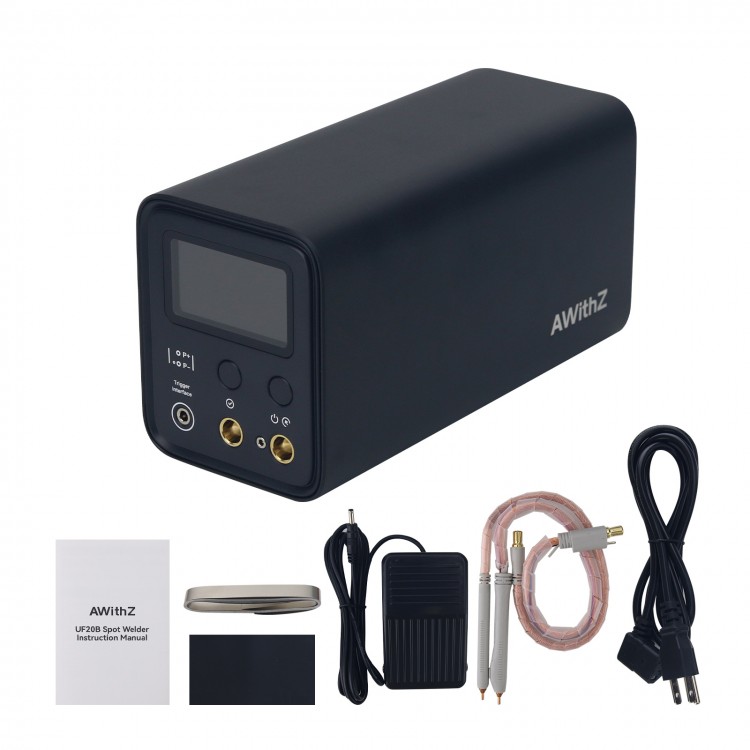

Packing List:
* 1 x Set of Spot Welder

Packaging Details:
* Weight: 2.1kg

Attention:
* The above data is based on laboratory tests conducted by AWithZ and is for reference only. Actual results may vary depending on the environment.
* Batteries are not included.
