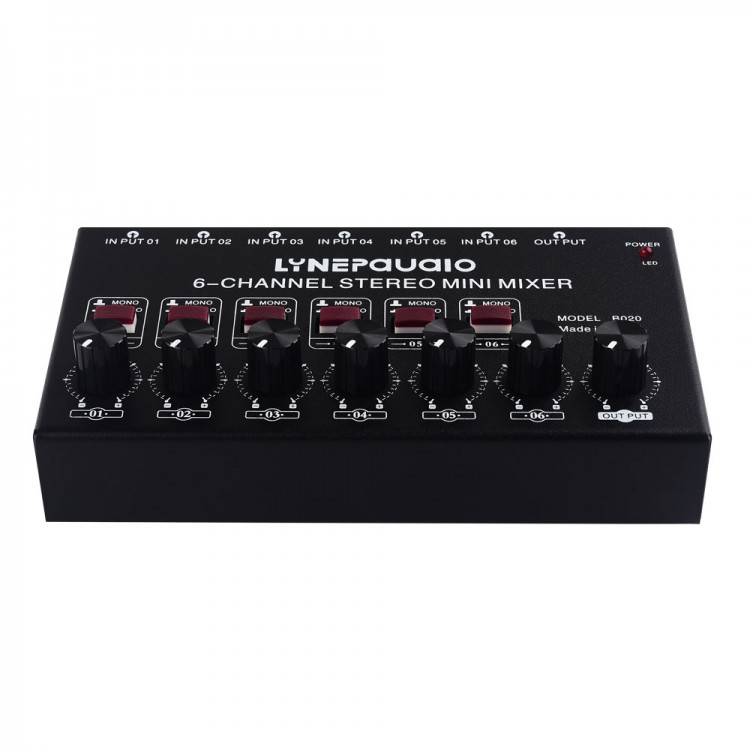

B020 6-Channel Stereo Mini Audio Mixer Mixing Console for Electric Blowpipe/Guitar/Keyboard/Drum

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.74
  • Price in reward points: 437 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.87 $41.99 $40.68 $38.93 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

B020 6-Channel Stereo Mini Audio Mixer Mixing Console for Electric Blowpipe/Guitar/Keyboard/Drum

Description:

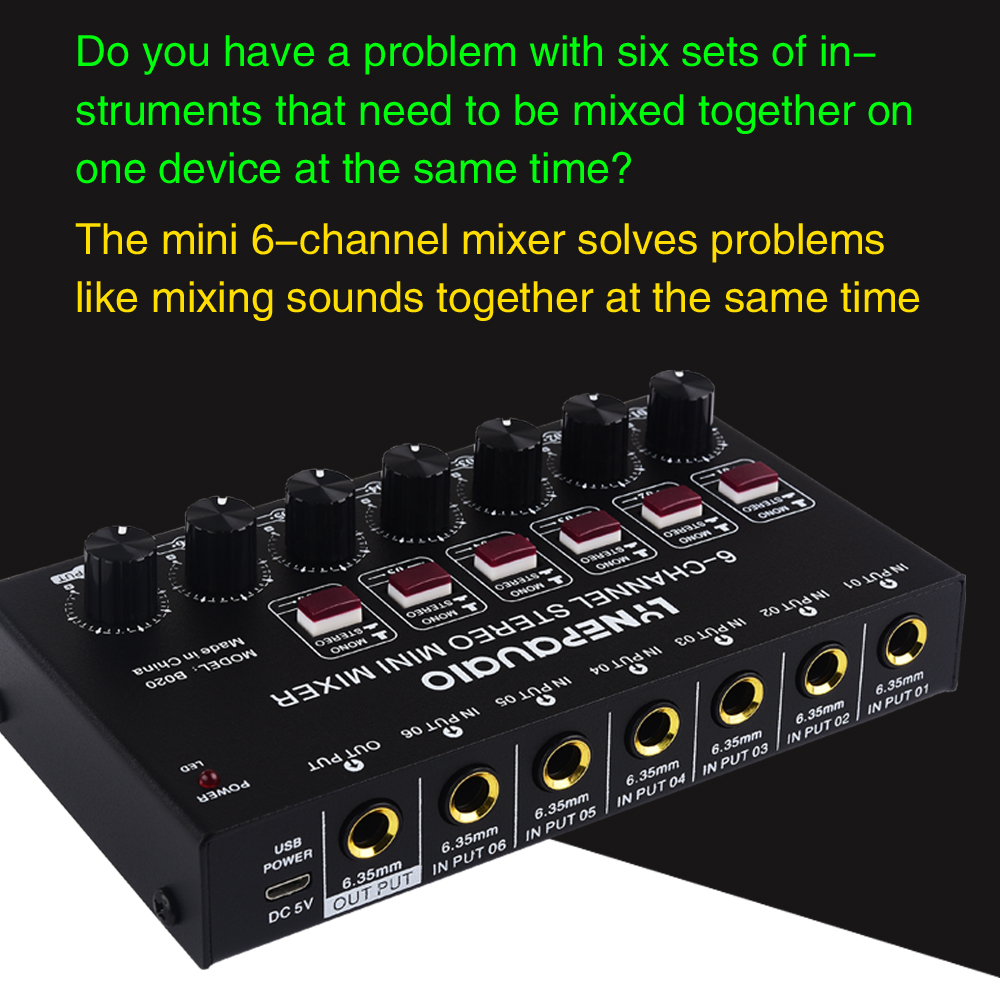

Do you have 6 groups of musical instruments that need to be mixed and played out on one device at the same time and are troubled by the sound?

A powerful mini 6-channel mixer can solve the problem of mixing together to sound out at the same time and so on.

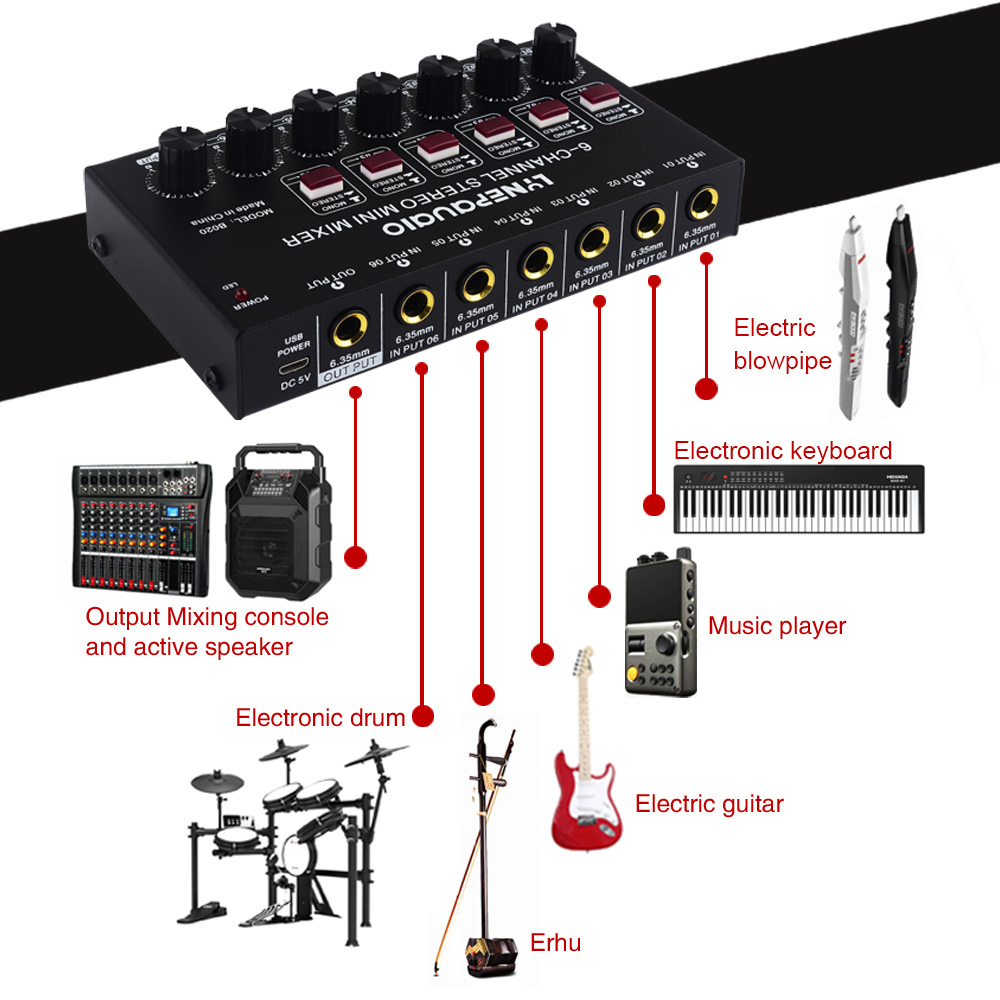

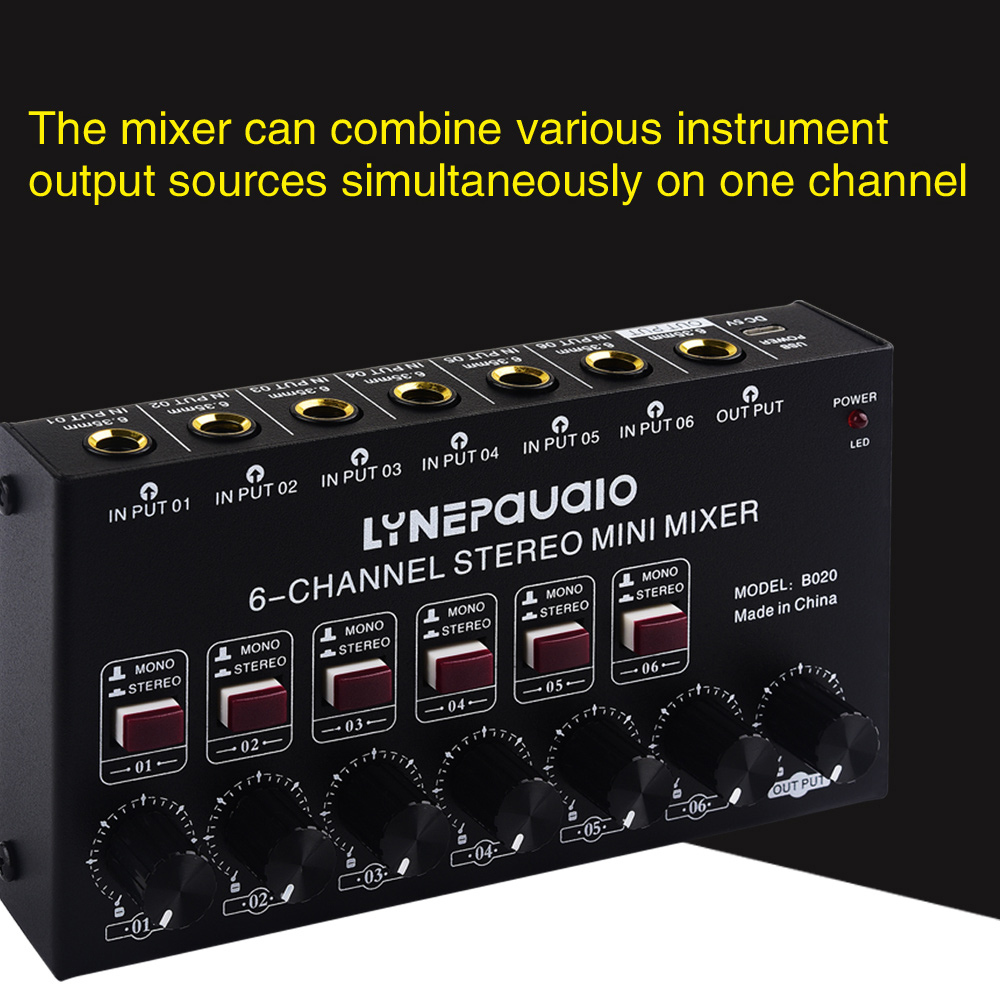

1. Various audio signal sources and musical instruments can be mixed and output on one channel at the same time. For example, the signals of electric blowpipes, electric guitars, electric drums, electronic keyboards, MP3 players and mobile phone music can be mixed and output to active speakers or mixers.

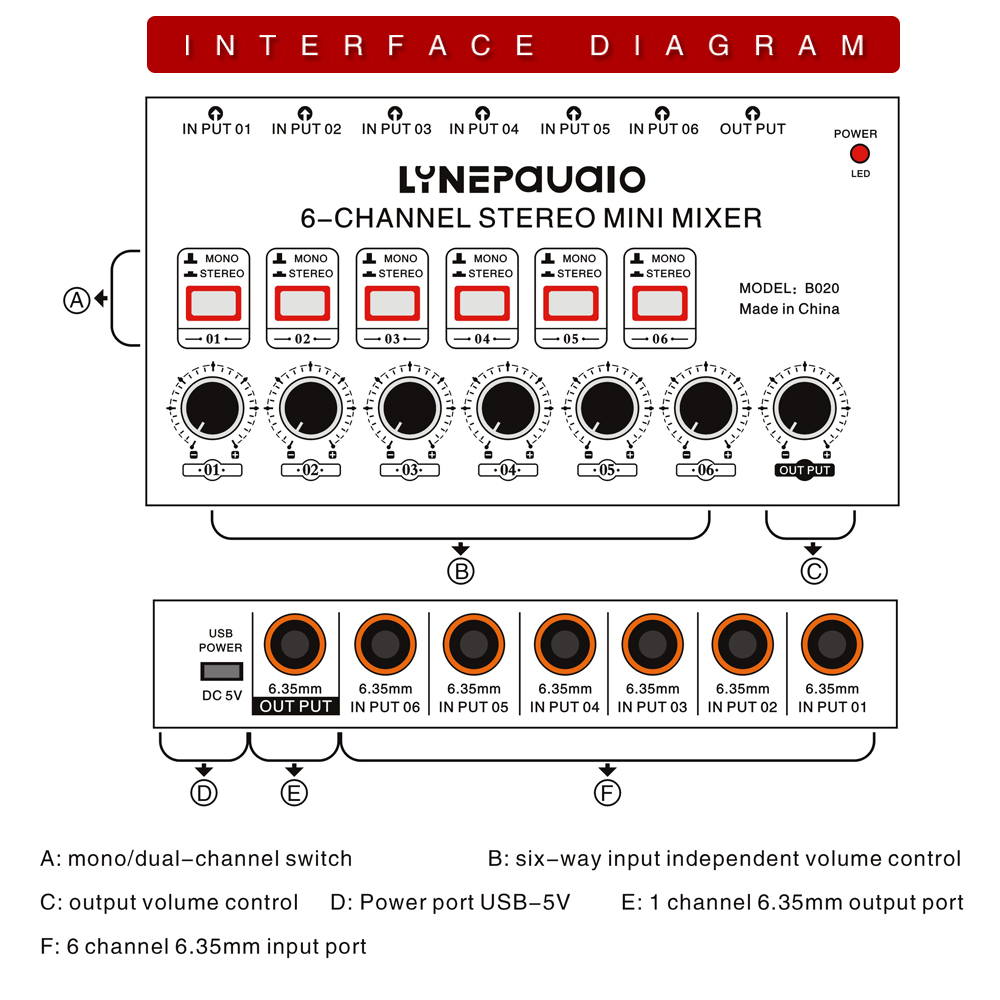

2. The mixer provides 6 groups of stereo mixing inputs. It can also support mono input. With 6.35mm input and output interfaces.

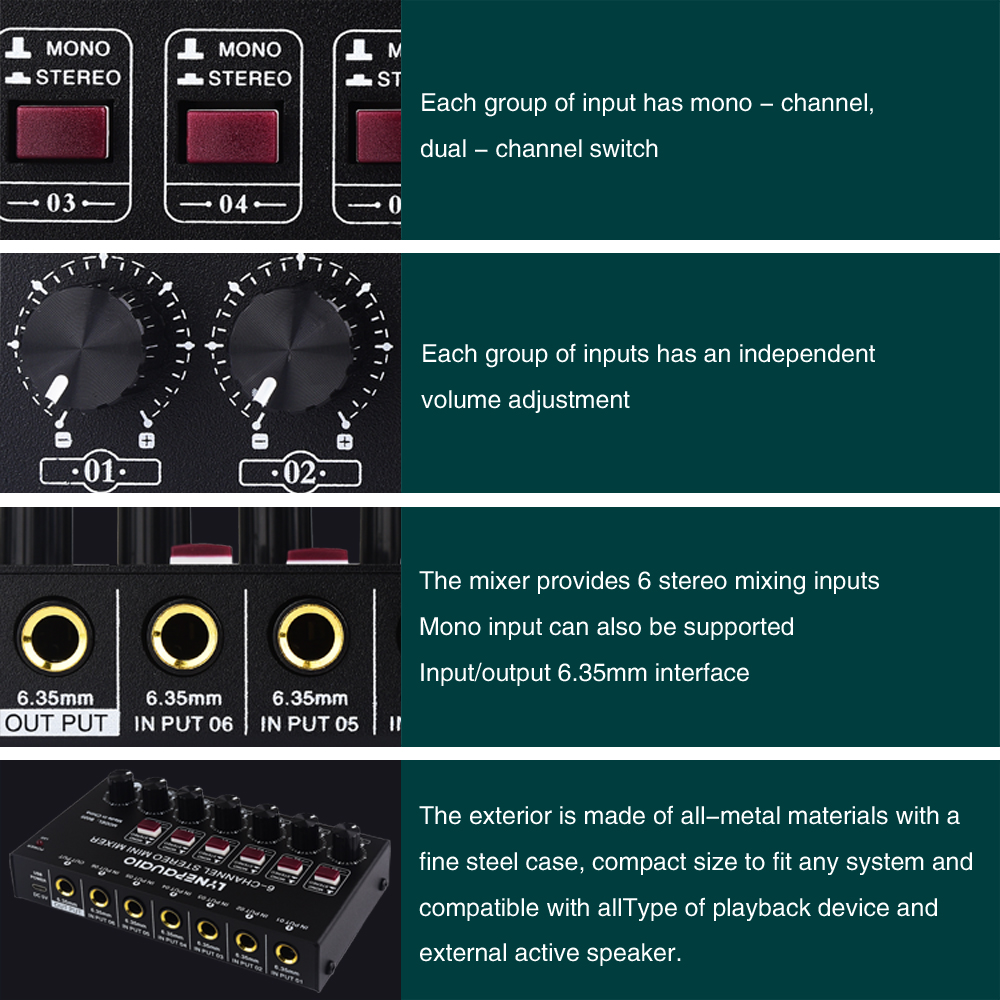

3. Each group of inputs has independent volume adjustment and mono/dual channel transfer switch.
4. Widely used: suitable for the mixing of most electronic musical instruments.

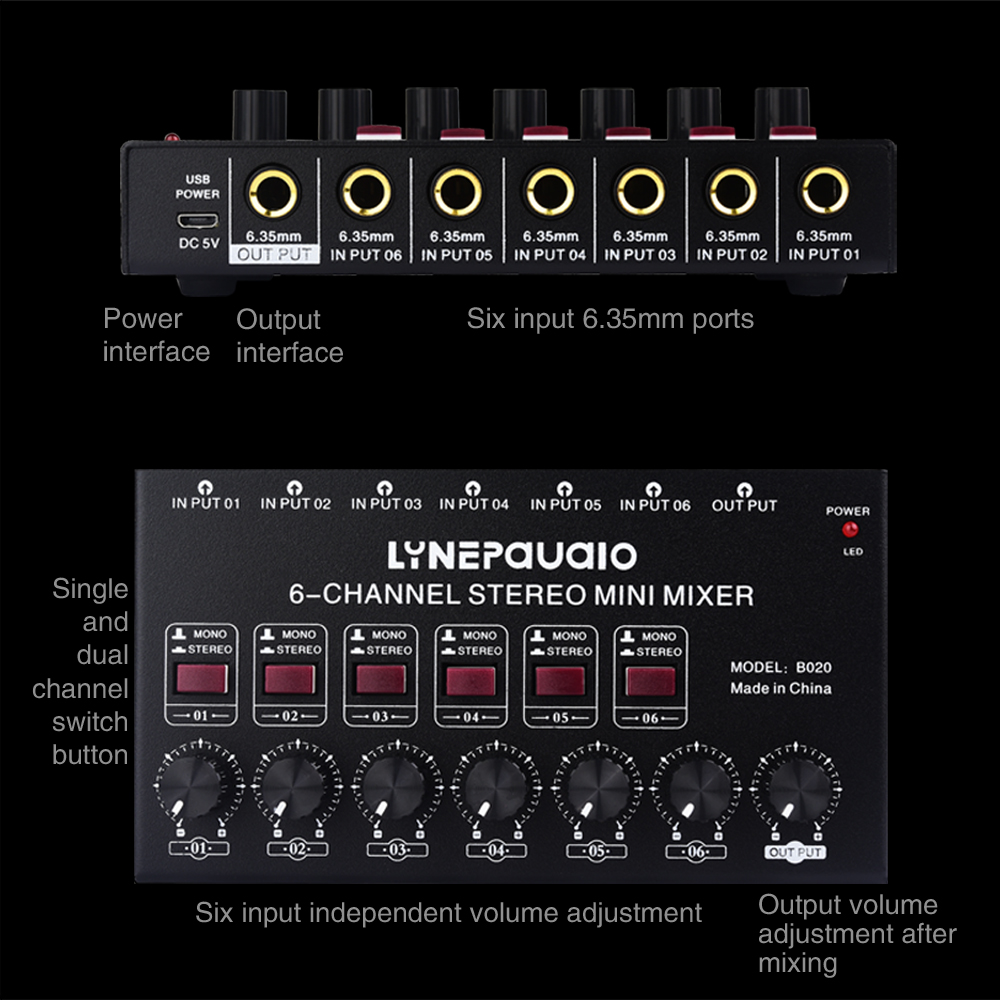

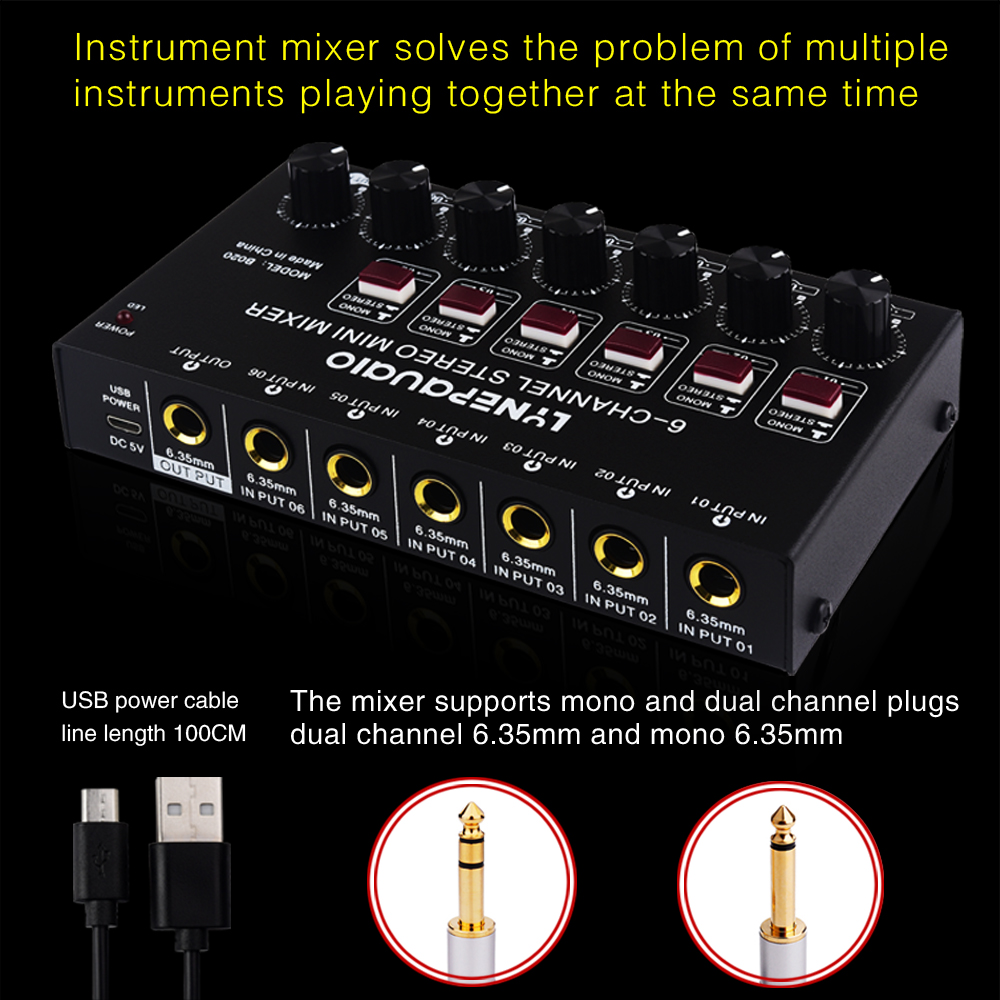

5. Simple operation: input and output adopt 1/4 TRS 6.35mm interface. Each channel has a separate toggle button, making switching between mono and stereo audio inputs more convenient and intuitive.
6. Power supply mode: DC DC-5V power supply. It is convenient for users to use in a variety of occasions. Power can be supplied via charger adapter and power bank. The voltage of the power supply equipment is DC5V, over 500mA (excluding notebook PC and desktop computers).

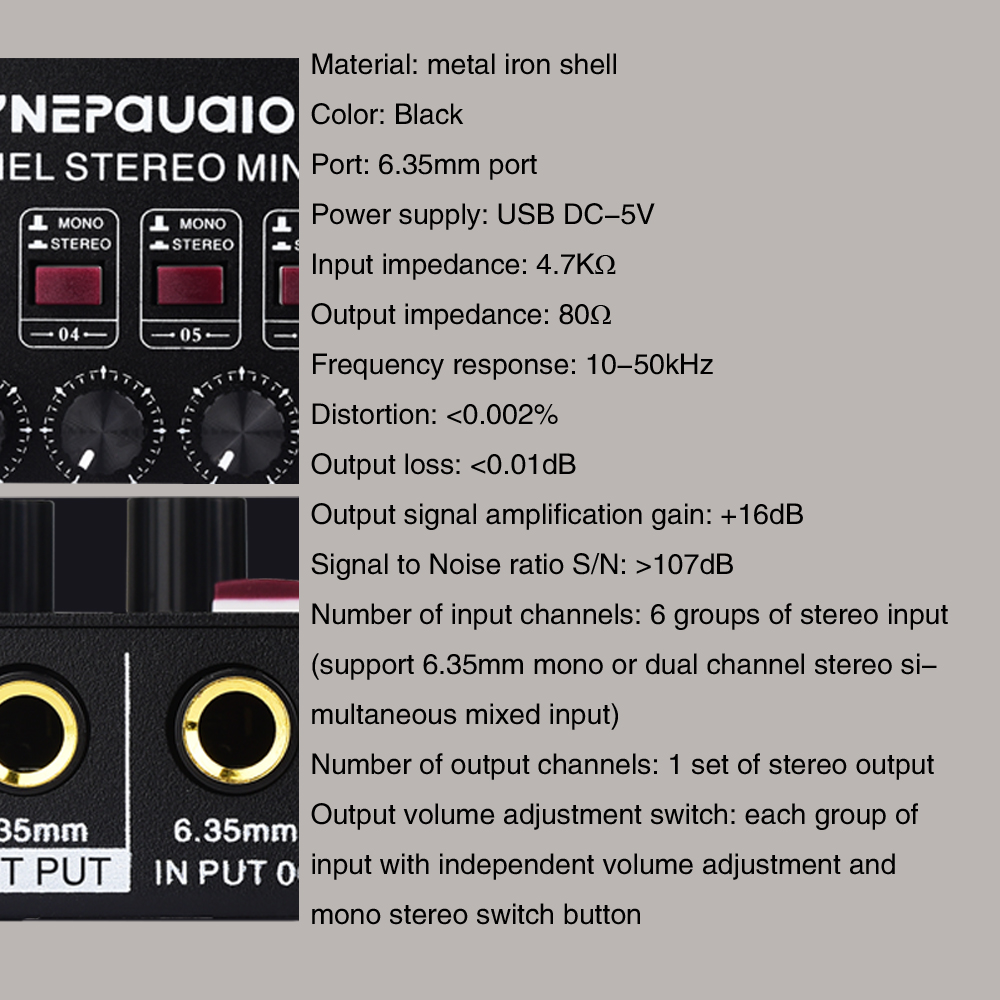

Product Parameters:
- Material: iron shell
- Color: Black
- Interface: 6.35mm connector
- Power supply: USB DC-5V
- Input impedance: 4.7KΩ
- Output impedance: 80Ω
- Frequency response: 10-50kHz
- Distortion: <0.002%
- Output loss: <0.01dB
- Output signal amplification gain: +16dB
- SNR: >107dB
- Number of input channels: 6 groups of stereo input (support 6.35mm mono or dual channel stereo mixed input at the same time)
- Number of output channels: 1 group of stereo output
- Output volume adjustment switch: each group of inputs with independent volume adjustment and mono stereo switch button
- Net weight: 0.35kg/0.8lb

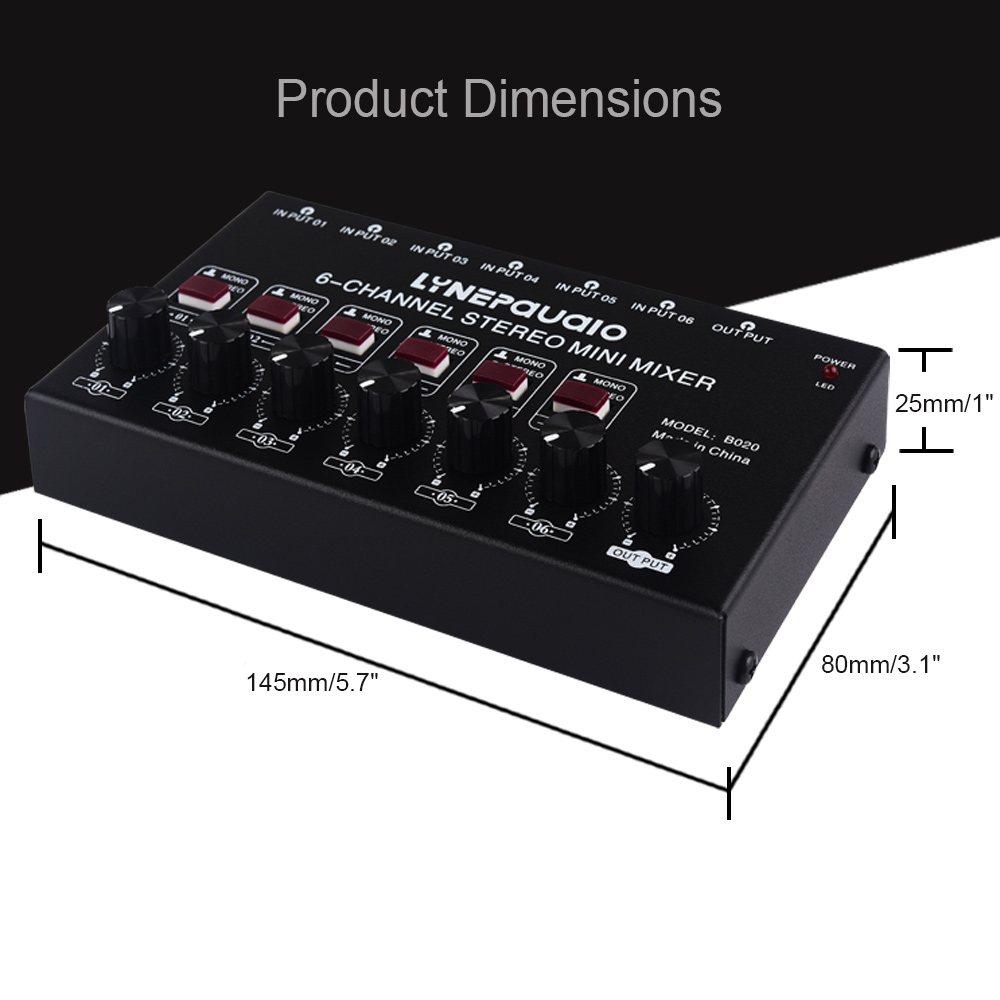

- Product size: 145 x 80 x 25mm/5.7 x 3.1 x 1" (LxWxH)

Package Included:
- 1 x B020 mixer
- 1 x DC-5V power adapter
- 1 x 100cm/39.4" USB power cable
