B210 70MHz ~ 6GHz SDR Software Defined Radio Development Board Duplex 4-Channel SDR Replacement for ETTUS B210
Specification:
- 1 x Size: 156 x 98mm
- Supported frequency: 70MHz - 6GHz
- TX port: 2
- RX port: 2
- USB3.0 interface
- DC interface: 6V, If GPSDO is not applicable and only single channel transceiver is used, external power supply is not required. If GPSDO or dual channel transceiver is used, external power supply is required.
- For Spartan 6 XC6SLX150 FPGA;
- AD9361 dual-channel RF transceiver chip, supports a maximum sampling rate of 61.44Mhz/s
- The built-in clock precision on the board is 2PPM, supports GPSDO or external reference clock, and the highest precision can reach 1PPB (0.001PPM).
- Support for UHD, for GNURADIO, for OPENBTS, for OPENBTS-UMTS, for SRSLTE, for openair interface, for gps-sdr-sim; it can support for openbts dual bts with the dual channel transceiving of B210, one board support dual bts.

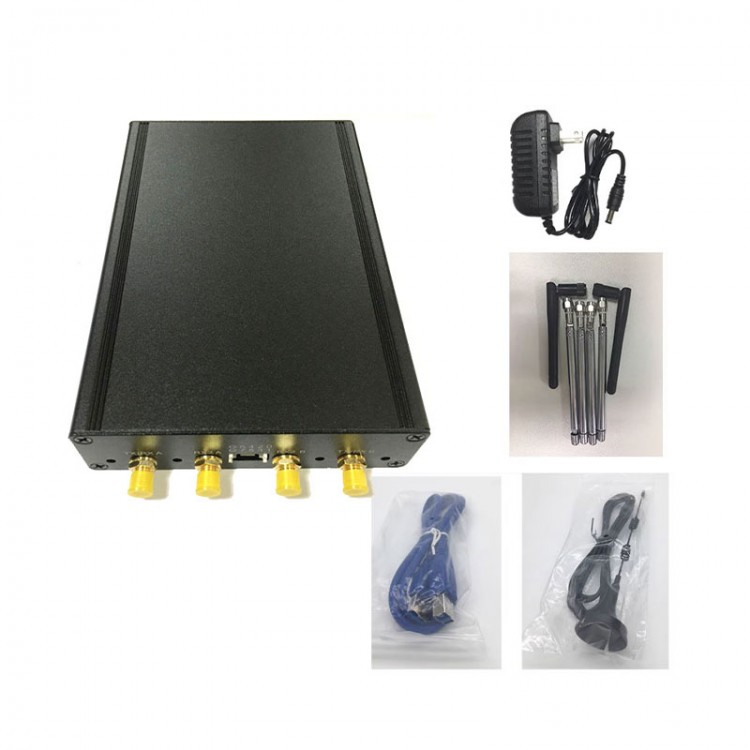

Package Included:
- 1 x Development Board
- 1 x Aluminum Alloy Case
- 7 x Antenna
- 1 x USB3.0 Data Cable
- 1 x Power Adapter
Note:
- Please contact our customer service to get the driving installation information after receiving the product.
