Product Description:

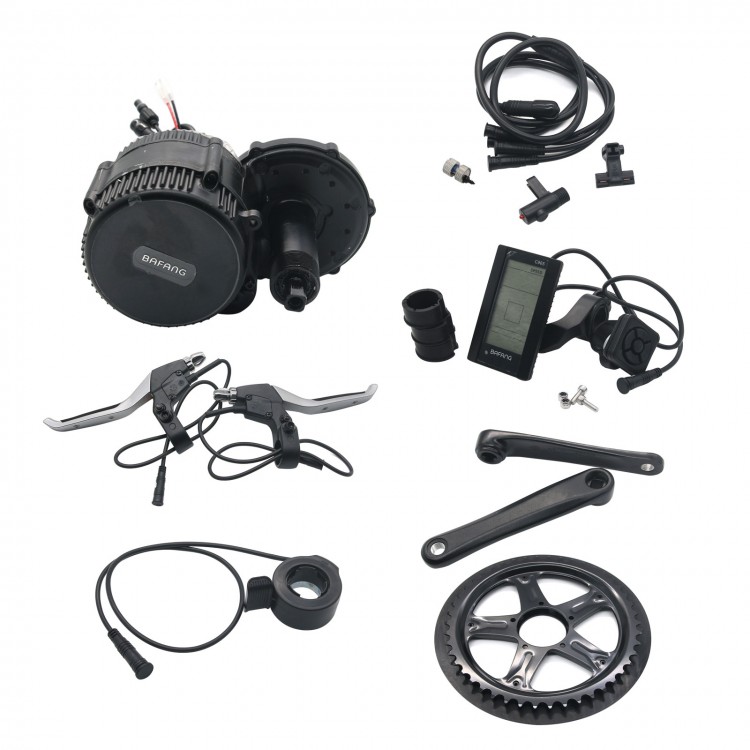

- RisunMotor/BAFANG 48V 750W 8Fun Brushless Geared Mid-Drive Motor Conversion Kits with integrated Controller and LCD Display
- Integrated Controller:With an integrated speed sensor,this mid-drive motor,which is compatible with standard bikes,has a rated power of 500-750W,a reduction ratio of 1: 21.9 and a maximum torque of 100-120 N.m,providing ideal power for vehicles.Light but strong and efficient,this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes.This motor is black.
- Leadtime:It will take about 5-7 days for us to build and test this new battery pack for you.
Specification:
- Position: Mid Motor.
- Construction: Geared Motor.
- Rated Voltage (DCV): 36/48V.(36/48V)
- Loading of 0W (Rpm): 110/130rpm.
- Rated Power (W): 500-750W
- Max Torque: 100 N.m.
- Efficiency (%): ≥ 80%.
- Pedal Sensor: Speed sensor.
- Shaft Standard: JIS
- Weight (kg): 4.2 kg
- Speed Detection Signal (Pulses/Cycle): N/A
- Reduction Ratio: 1:21.9
- Magnet Poles (2P): 16
- Noise Grade (dB): < 55 dB
- Hall Sensor: optional
- Connector: Waterproof.
- IP: IP 65
- Certifications: CE/EN 14764/ROHS
- Volume: 0.02cbm
- Size:31x25x26cm(LxWxH)
Package List:
- 1 x Electric Bike Conversion Kit
