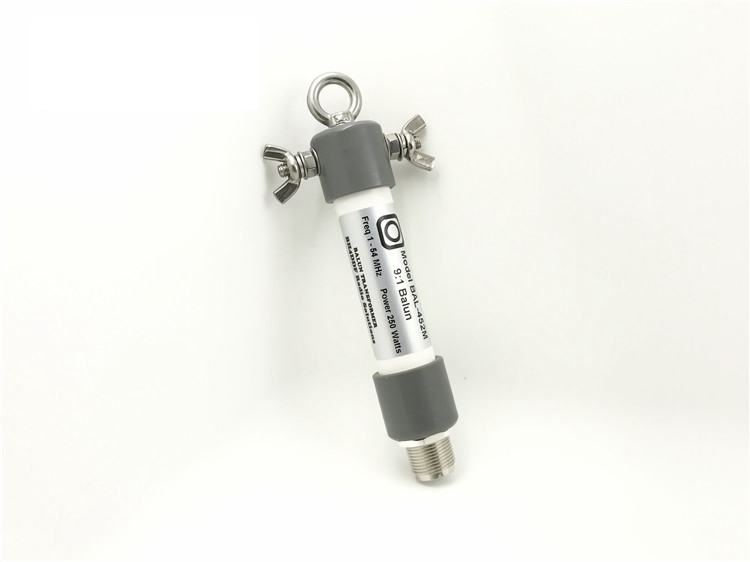

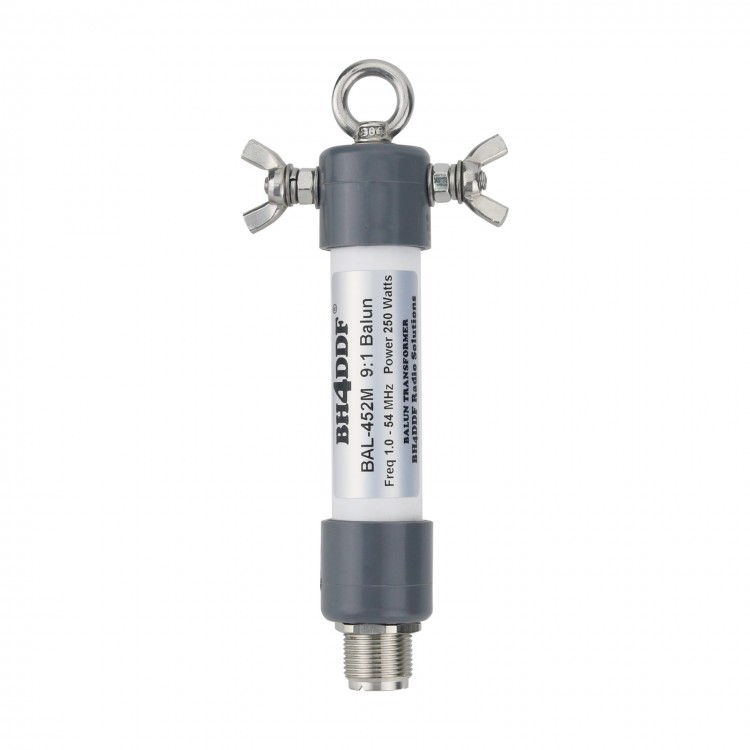

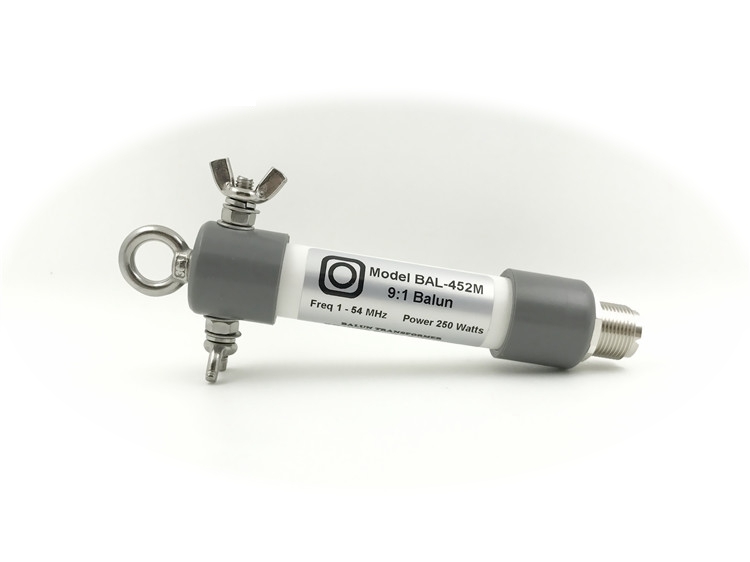

BAL-452M 9:1 Mini Balun Balance to Unbalance Transformer for Shortwave Antenna with Low Attenuation Loss for BH4DDF
Description:
- After several rounds of testing and selection of high-quality accessories, the frequency of BAL-451 9:1 Balun covers 160m-6m. It is made of high-quality ferrite thickened nickel-zinc high-frequency magnetic rod by manual winding. The amateur frequency full band SWR is less than 1.1, the continuous power rate is 250w, and the instantaneous power is up to 350w.

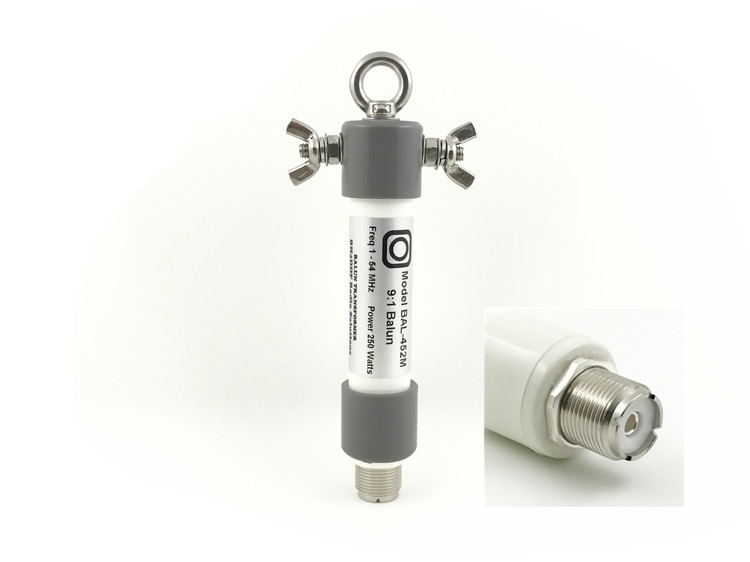

- It is also used the nickel-plated SO-239 connector for RCOMTECH with lower attenuation loss.
- It is easy to erect and it has excellent waterproof performance. The pipe size is only Φ 20 x 110mm, U-shaped bolt is used to fix it on the support rod.
Specification:
- Frequency range: 1.0-54MHz
- SWR: ≤1.1
- Rated impedance: 450 ohm
- Power: 250W SSB, PEP 350W
- Size: Φ20 x 110mm
Package Included:
- 1 x Balun
