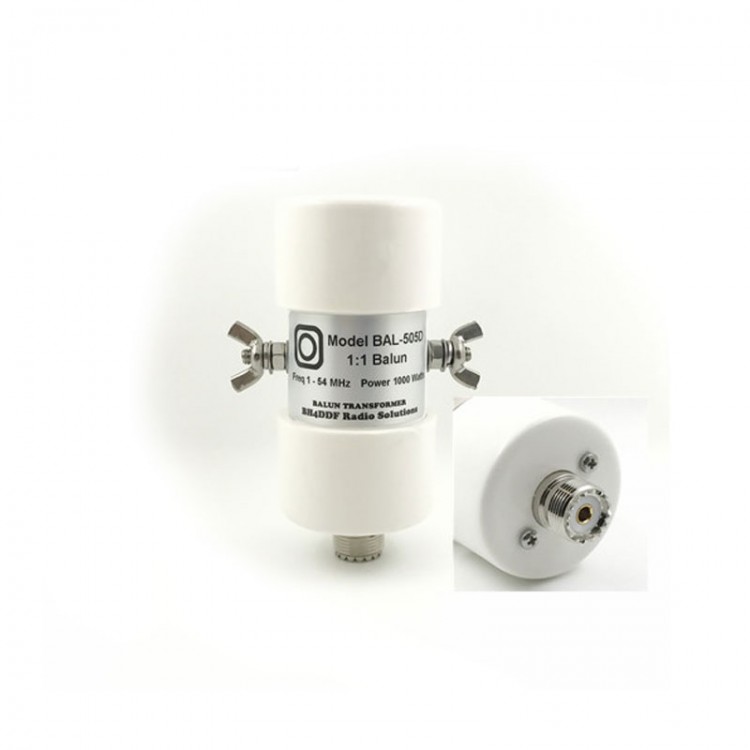

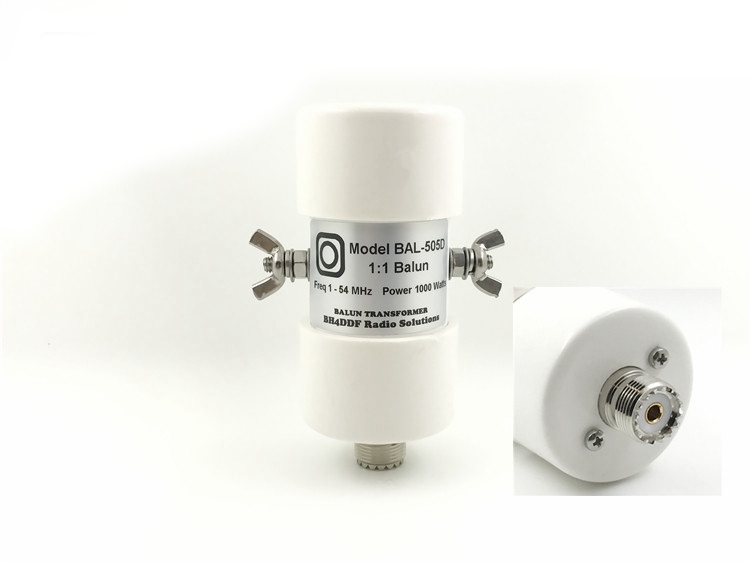

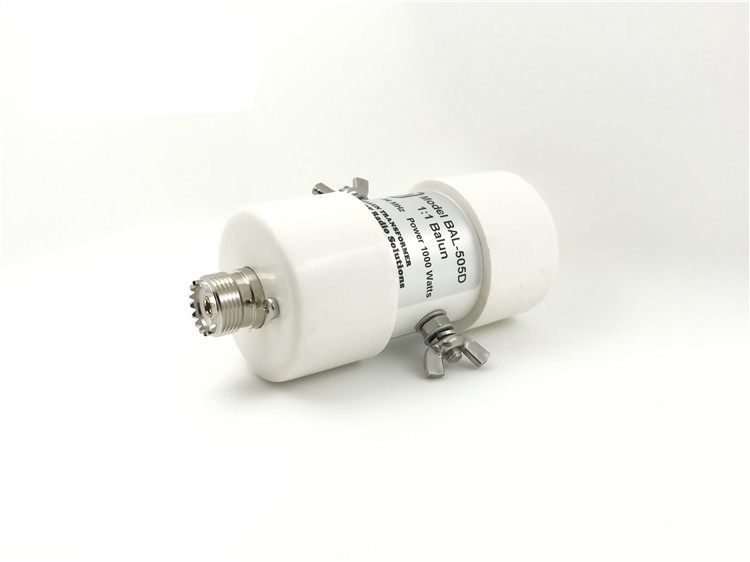

BAL-505D 1:1 Balun Balance to Unbalance Transformer for Shortwave Antenna with Low Attenuation Loss for BH4DDF
Description:
- BAL-505D 1:1 Balun is applicable to the antennas (positive V and negative V) for Yagi and for Dipole. After several rounds of testing and selection of high-quality accessories, the frequency covers 160m-6m. It is made of high-quality ferrite thickened nickel-zinc high-frequency magnetic rod (dual core) by manual winding. The amateur frequency full band SWR is less than 1.1, the continuous power rate is 1000w, and the instantaneous power is up to 1500w.
- It is also used the nickel-plated SO-239 connector for RCOMTECH with lower attenuation loss.
- It is easy to erect and it has excellent waterproof performance. The pipe size is only Φ forty-six x 90 mm, U-shaped bolt is used to fix it on the support rod.
Specification:
- Frequency range: 1.8-54MHz
- SWR: ≤1.1
- Rated impedance: 50 ohm
- Power: 1000W SSB, PEP 1500W
- Size: Φ46 x 90mm
Package Included:
- 1 x Balun
