Battery Tester BTS-2002 Capacity Tester Battery Charge Discharge Tester
Product Details:
This BTS-2002 Battery Tester provides a quantitative and accurate measurement of some of the basic parameters of batteries. Features with 6 basic functions:
Comprehensive Testing of Battery Parameters:
- Voltage Test: (For the Li-ion battery in protection status, this function can be automatically woken up.)
- Loading Voltage Difference Test
- Internal Resistance Test
- Charge Test
- Discharge Test
- Over-current Test (For Li-ion battery only)
- Test Short-circuit Protection Time
- Identification Resistor 1 (or thermal resistor) Test
- Identification Resistor 2 (or thermal resistor) Test
For quick testing, those functions with measureable values can be set with upper and lower limit values
Capacity Test
Internal Resistance Test
Charge Test
Discharge Test
Instrument Factory Commissioning (Finished by the producer, not for customers)
Application:
- It can be used for testing 18650 and other cylindrical, square lithium batteries, polymer batteries, nickel-chromium, nickel-metal hydride batteries and lead-acid batteries.
Parameters:
Testing Range:
- Voltage Measurement Range: 0-10V Resolution: 10mV
- Current Measurement Range: 0-10A Resolution: 1mA
- Battery Internal Resistance Range: 0-1000mΩ Resolution: 1 mΩ
- Identifying Resistance Range: 0.1-999.9kΩ Resolution: 0.1 kΩ
- Battery Capacity Range: 0-60000 mAh Resolution: 1mAh
Speed of Measurement:
- Static Test (Voltage Test, Internal Resistance Test, Charge Test, Discharge Test, Over-Current Test, Short-Circuit Test): 0.1-0.3s
- Capacity Test (1C Current Charge & Discharge): 3-4hours
Accuracy of Measurement:
- Accuracy of Voltage Measurement: 10V ± 1% (After Calibration)
- Accuracy of Current Measurement: 2A ± 2%, 10A ± 5%
- Accuracy of Internal Resistance Measurement: 1000mΩ ± 2%
- Accuracy of Identifying Resistance: 10KΩ ± 2%
- Accuracy of Capacity Measurement: 10AH ± 2%
Specifications:
- Voltage of Power Supply: 220V ± 10%, 50Hz
- Power Consumption:>50W
- N.W.: 5 kg

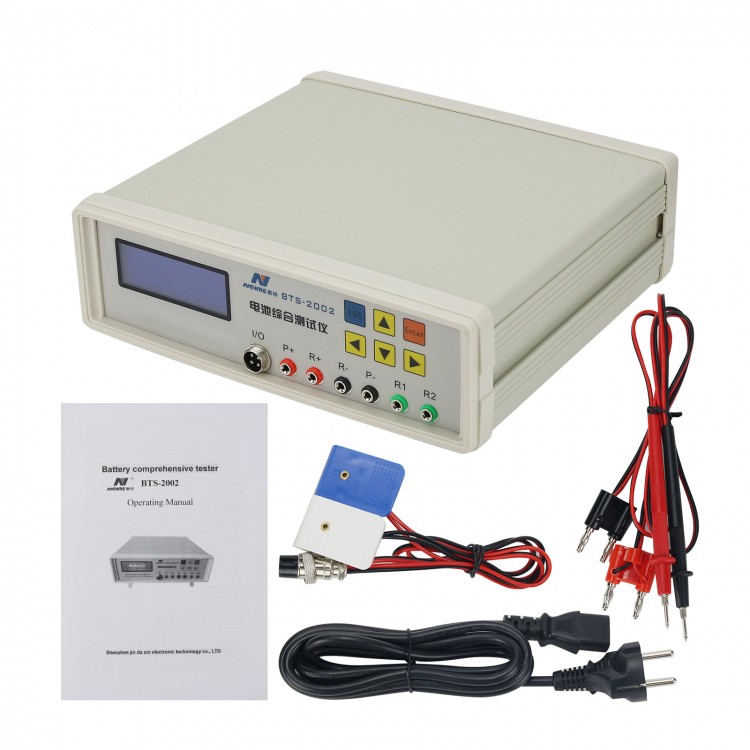

Package Included:
- 1 x BTS-2002 Battery Tester
- 1 x Tester Pen
- 1 x Clip
- 1 x Power Cable
- 1 x User Manual
