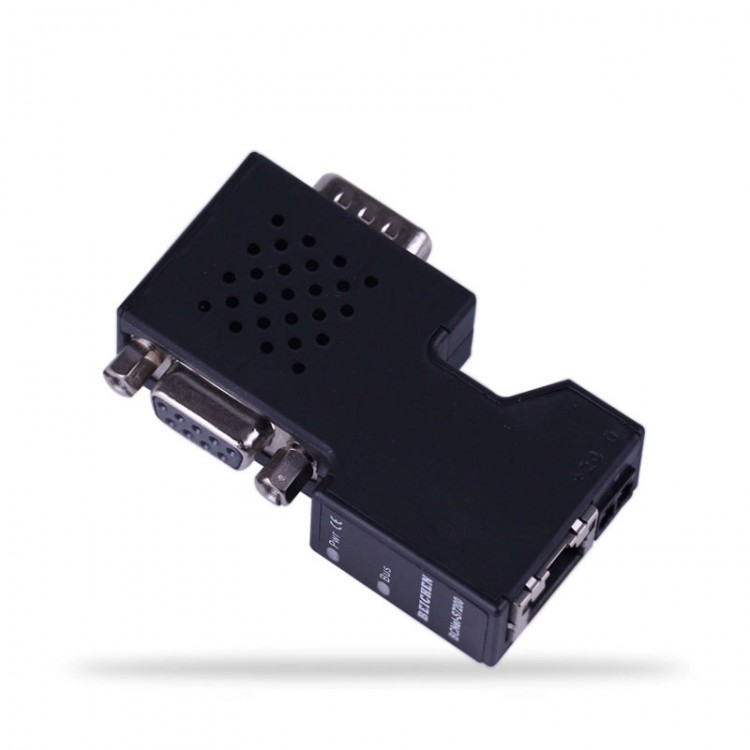

BCNet-S7200 Bridging Type Ethernet Module PLC Data Acquisition Module PPI to TCP Ethernet Communication Processor

BCNet-S7200 Bridging Type Ethernet Module PLC Data Acquisition Module PPI to TCP Ethernet Communication Processor

Description:
- BCNet-S7200 is used for Ethernet data collection of Siemens S7-200/SMART S7-200 PLC, making it very convenient to build a production management system.
- BCNet-S7200 does not occupy the PLC programming port, that is, the programming software/upper computer software monitors and collects PLC data through Ethernet, while the touch screen can communicate with the PLC through the extended RS485 port.
- BCNet-S7200 supports the vast majority of SCADA software in the industrial control field, as well as Siemens S7TCP Ethernet protocol and ModbusTCP protocol.

Model classification:
- BCNet-S7200 straight through type: The DSUB9-pin female port of BCNet expansion can be connected to touch screens for Siemens and for Proface, multiple master station cables, and communication boards.
- BCNet-S7200 bridging type: BCNet's extended DSUB9-pin female port can be connected to touch screens for MCGS, for Weinview, for Delta, for Kinco, etc.

Function:
- Supports multi master communication, and the expansion port can be connected to a touch screen or other master stations.
- Parameter settings and running diagnostics can be performed on devices through a WEB server or the configuration diagnostic tool BCDevice.
- 9.6Kbps ~ 187.5Kbps adaptive baud rate.
- Directly installed on the PPI communication port of the PLC or the communication port of EM277 without the need for external power supply.
- Support for Siemens S7 Ethernet communication driver, including for MicroWIN, and support for WinCC to directly connect to S7-200 via TCP/IP.
- Users can use advanced language programming (such as VB, VC, C #, etc.) according to the BCNetS7 protocol to achieve data communication with S7-200, facilitating the development of production management systems.
- Provide BCNetS7 OPC server for free, supporting for SCADA communication with PLC via OPC channel.
- Integrated with Modbus TCP server, the Modbus data area can be automatically or edited mapped to the S7-200 register.
- Can simultaneously achieve S7TCP connection and Modbus TCP communication, supporting up to 32 upper computer connections.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, Bus
- Programming software: for STEP7 MicroWin
- Configuration software: for WinCC, for MCGS, for KingView, for Force Control, for FameView, for IFIX, for INTOUCH, for LABVIEW, etc.
- OPC software: for KepWare OPC, for BCNetS7 OPC
- Diagnostic and parameter setting tool: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: PLC communication port
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% (non-condensing)
- Installation method: plug and play
- EMC: 2014/30/EU
- Size: 65 x 30 x 17mm
- Weight: 60g

Ethernet Interface: Link/Active indicator, line sequence adaptation
- Interface type: RJ45 female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for Siemens S7TCP, for Modbus TCP, for OPC, for TCP/IP protocol open
- TCP connections: Maximum 32

S7 Interface: RS485
- Interface type: DSUB 9-Pin Male
- Transmission speed rate: 9.6K, 19.2K, 187.5K, baud rate adaptation
- Supported protocol: PPI/MPI slave station

HMI Interface: RS485
- Interface type: DSUB 9-Pin Female
- Transmission speed rate: 9.6K, 19.2K, 187.5K
- Supported protocol: PPI/MPI slave station
- Devices: for Siemens, for MCGS, for Weinview, for Delta, for Konco, etc.

Package Included:
- 1 x Acquisition Module
