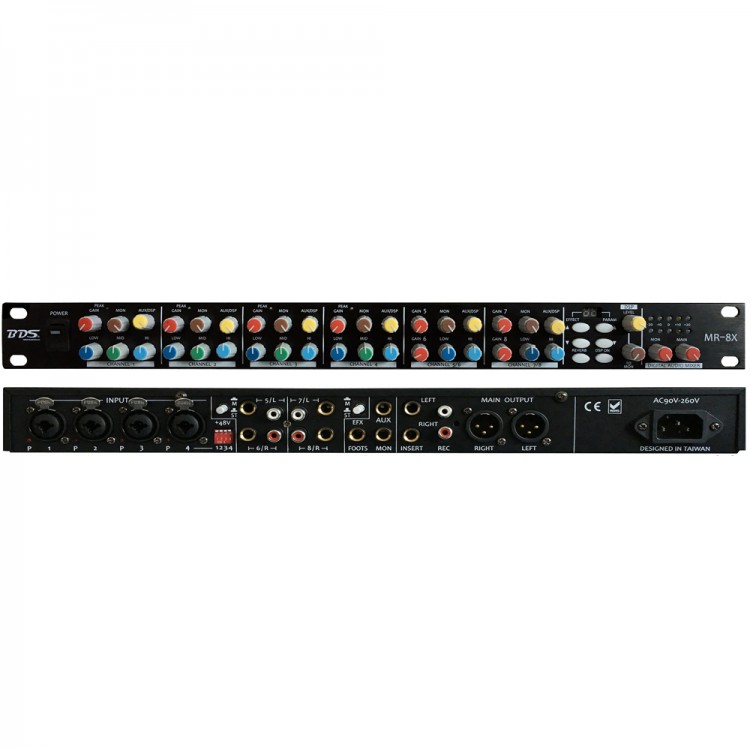

BDS MR-8X 8CH Digital Audio Mixer Mixing Console w/ 100 Kinds of Effects for Speakers Amp Microphone
Features:
- Designed in Taiwan by BDS
- 1U compact rack body size
- High quality main control board
- Analog appearance and digital control
- 4 groups of dual-function XLR input sockets (48v)
- 2 groups of stereo jack 6.35mm or RCA input socket
- Mono and stereo switch (become 4 groups input)
- Main output with insert socket
- Channel 1-4 with balanced adjustment of treble, mid-tone and bass
- Foot switch effect control socket
- 100 groups of effects designed by BDS
- Output signal level 5 sections
- Aux and Mon output socket
- Channel 5-8 with balanced adjustment of treble and bass
- Every input with Aux and Mon output
- Support AC90V-260V power supply
Specifications:
- Power supply: AC90V-260V (50Hz/60Hz)
- Power consumption: 10W-15W
- Gain: mic input: 55dB; line input: 40dB; stereo input: 24dB
- EQ: MIC input: ±15dB, low 60Hz, mid 2.5KHz, high 12KHz; STEREO input: ±15dB, low 60Hz, high 12KHz
- Frequency response: Any input 22Hz-40KHz ±0.5dB
- THD at 1KHz: < 0.008%
- Output level: XLR: normal +4dbu, max +23dbu, output impedance 100ohms; RCA (JACK): normal -2dbu, max +17dbu, output impedance 100ohms; AUX: normal -2dbu, max +23dbu, output impedance <10ohms; MON: normal +4dbu, max +23dbu, output impedance <10ohms
- DSP EFFECT: ECHO, DELAY, FLANGER, PITCH and REVERB
- Dimension: 483 x 44 x 130mm/19 x 1.7 x 5.1"
- Weight: 2.5Kg/5.5 Lb
Package Included:
- 1 x Set of Mixing Console
