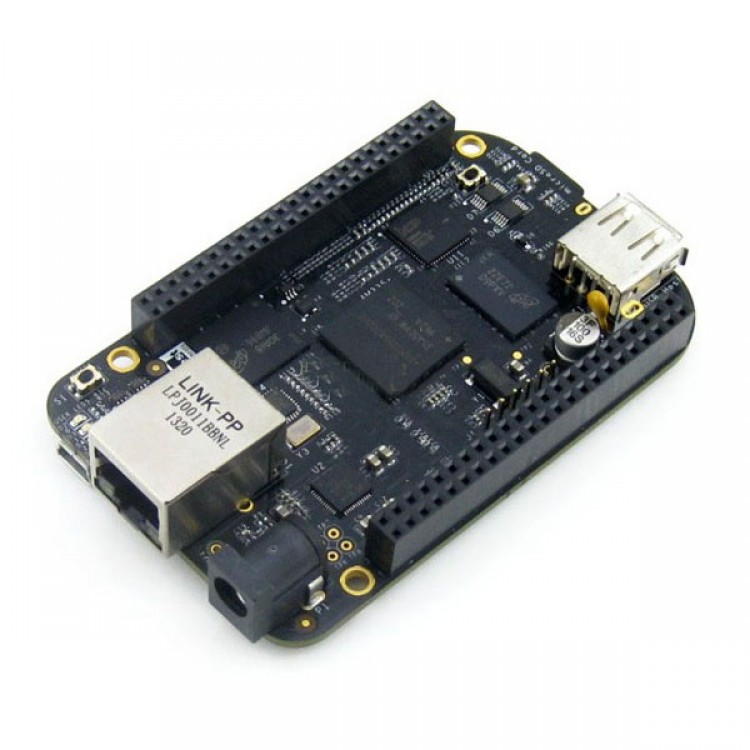

BeagleBone AM335x Development Board Cortex-A8 BB Black Rev.C Original

BeagleBone AM335x Development Board Cortex-A8 BB Black Rev.C Original

Description:
- Processor:TI Sitara AM335x, 1GHz, 2000 MIPS
- 1 GHz ARM ® Cortex-A8
- SGX530 Graphics Engine
- Programmable Real-Time Unit Subsystem

Memory
SDRAM: 512MB DDR3L 800MHZ
eMMC Flash:
Rev B: 2GB (discontinued)
Rev C: 4GB (as of 2014.05.21)
SD / MMC Connector for microSD
Power management: TPS65217CPMIC is used along with a separate LDO to provide power to the system
Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header

Power Source
miniUSB USB or DC Jack
5VDC External Via Expansion Header

Connectivity
High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
10/100M Ethernet (RJ45)
User Input / Output
Reset Button
Boot Button
Power Button
LED power indicator
4 user configurable LEDs
Video / Audio Interfaces
HDMI D type interface
LCD interface
Stereo audio over HDMI interface
Expansion Interfaces
LCD, UART, eMMC
ADC, I2C, SPI, PWM
Operating Power:5V 0.35A
Board Size:3.4 x 2.1
