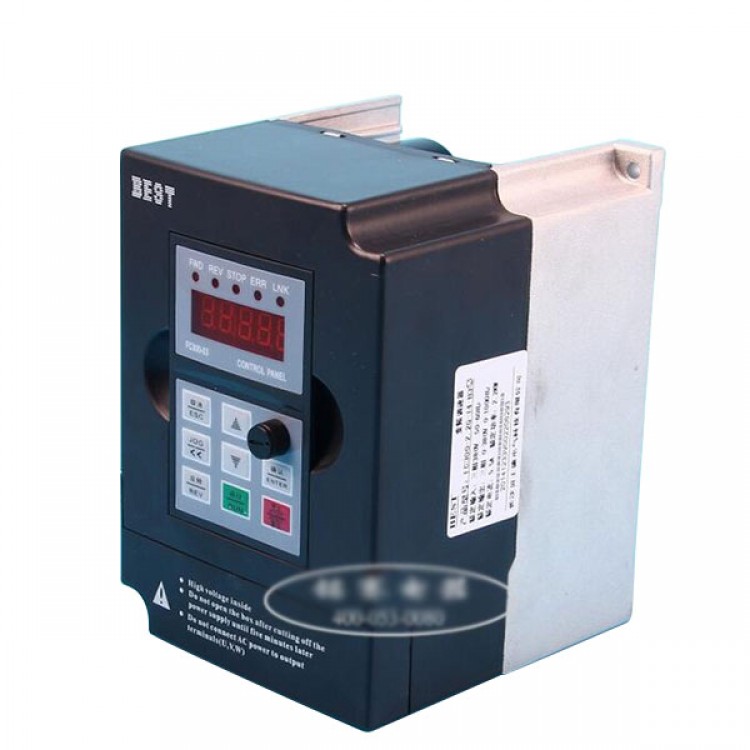

BEST Frequency Converter Drive Power Router Inverter 2.2KW CNC Engraving and Milling Machine

BEST Frequency Converter Drive Power Router Inverter 2.2KW CNC Engraving and Milling Machine

Product parameters:
- Product Type: FC300-B4-2.2G/T2
- Rated input voltage: 220V single
- Rated Input Frequency :50-60Hz
- Rated output voltage: three phase 0-220V
- Rated output frequency :0-1000Hz
- Rated output current:11A
- Rated Power: 2.2kw
- Dimensions: Length 180mm, Width 100mm, Height 155mm
- Packing: inside is shockproof packaging, outer carton packing
- Main features: F300 series are equipped with an independent cooling fan to force air cooling.
- Carrier frequency :1.0-12KHZ arbitrary.

Product Features:
- F300 Series engraving machine spindle-specific optimized converter , dual capacitor ! Low noise !
First, the frequency control
- Range : 0.10 ~ 1000.00Hz
- Accuracy: Digital: 0.01% ( -10 to 40 degrees Celsius ) ; Analog : 0.1% (25 ± 10 ° C )
- Keyboard Settings mode : 0.01Hz can be set directly
- Analog setting mode: external voltage 0-5V ,0-10V ,4-20mA ,0-20mA
- Other features : Low frequency , start frequency , stop frequency , three skip frequencies can be set

Second, the general control
- Deceleration control : four segments deceleration time ( 0.1-6500 s ) arbitrary choice
- V / F curve : can be arbitrarily set V / F curve
- Torque control: Torque boost can be set to a maximum starting torque at 1.0Hz up to 150% when
- Multi-function input terminal: 6 multi-function input terminal , to achieve 8-speed control , the program runs , four segments deceleration switch , UP, DOWN function, counter, external emergency stop and other functions
- Multi Output: relay output , open collector output , to achieve operation, zero speed , counter, external abnormalities, such as running indication and alarm
- Other features: automatic voltage regulator (AVR), deceleration stop or free -stop, DC braking , automatic reset and then start , frequency tracking , PLC program control , motion control around the carrier is adjustable up to 16KHz , etc.

Third, the protection function
- Overload Protection : G -type machine : 110 % of rated current 10 minutes ; 150% rated current / 1 minute , 180% rated current / 1 sec
P-type machine: 100% of rated current 10 minutes ; 150% rated current / 1 sec
- Over voltage : 220V line : DC voltage > 400V; 380V line : DC voltage > 800V
- Insufficient voltage: 220V line : DC voltage <200V; 380V line : DC voltage <400V
- Instantaneous power failure restart : Momentary frequency tracking mode after restart
- Stall Prevention : acceleration / deceleration stall prevention operation
- Output short circuit : Electronic circuit protection
- Protection : Normalized current, overvoltage , undervoltage , overload , overheating, voltage stall prevention , current anti-stall , etc.
- Other features: Reverse restrictions and direct start after power failure reset function, parameter lock etc.

Package included:
- 1 x Frequency converter
