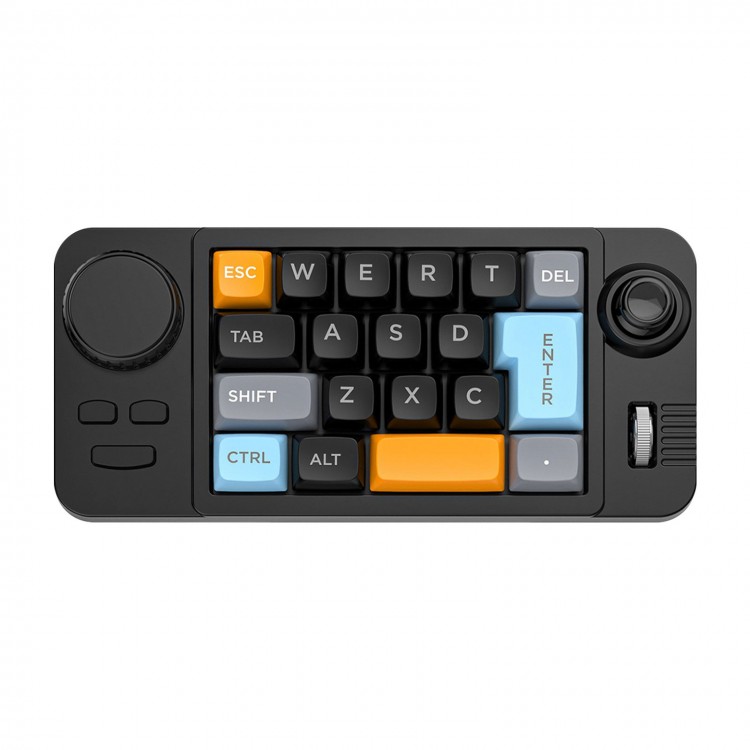

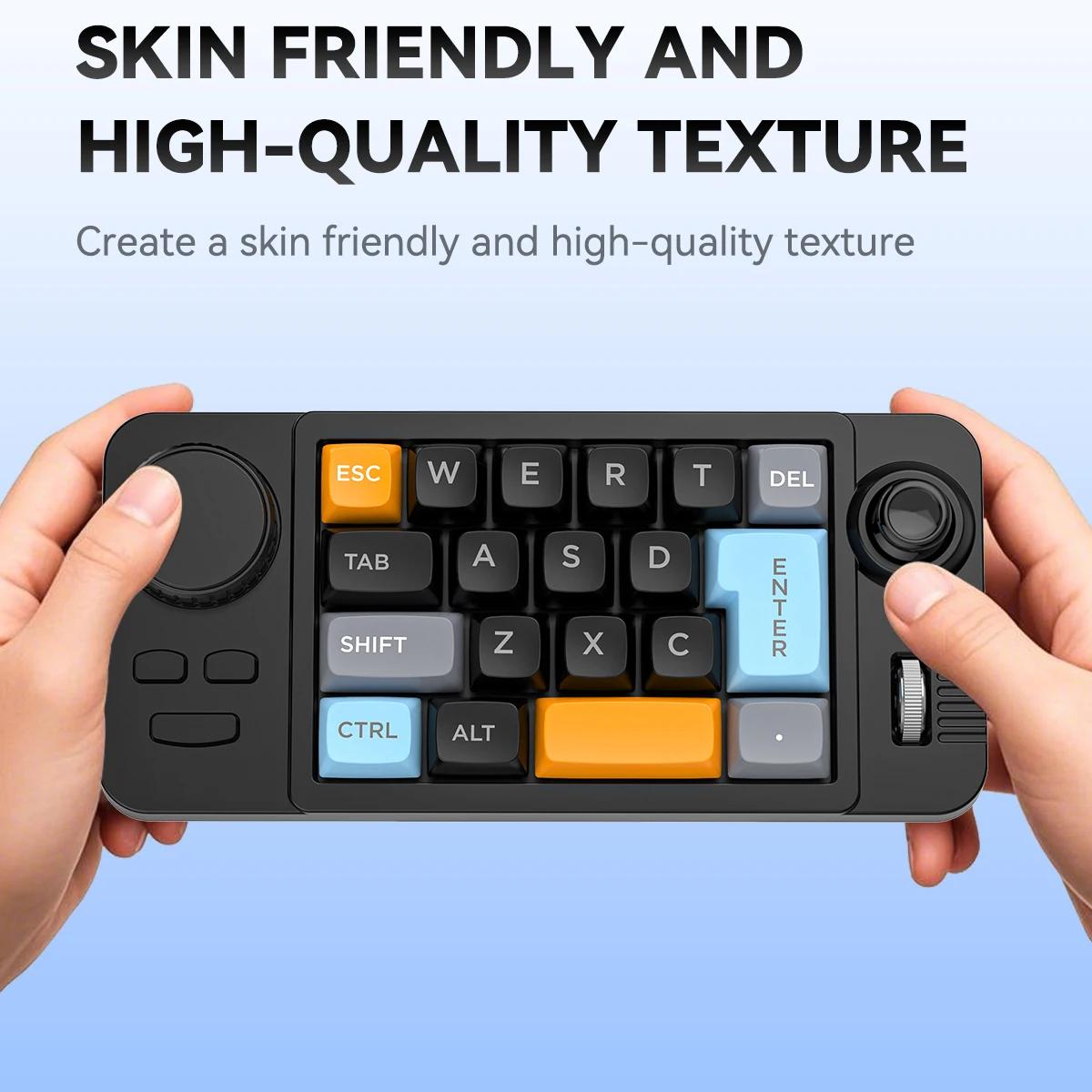

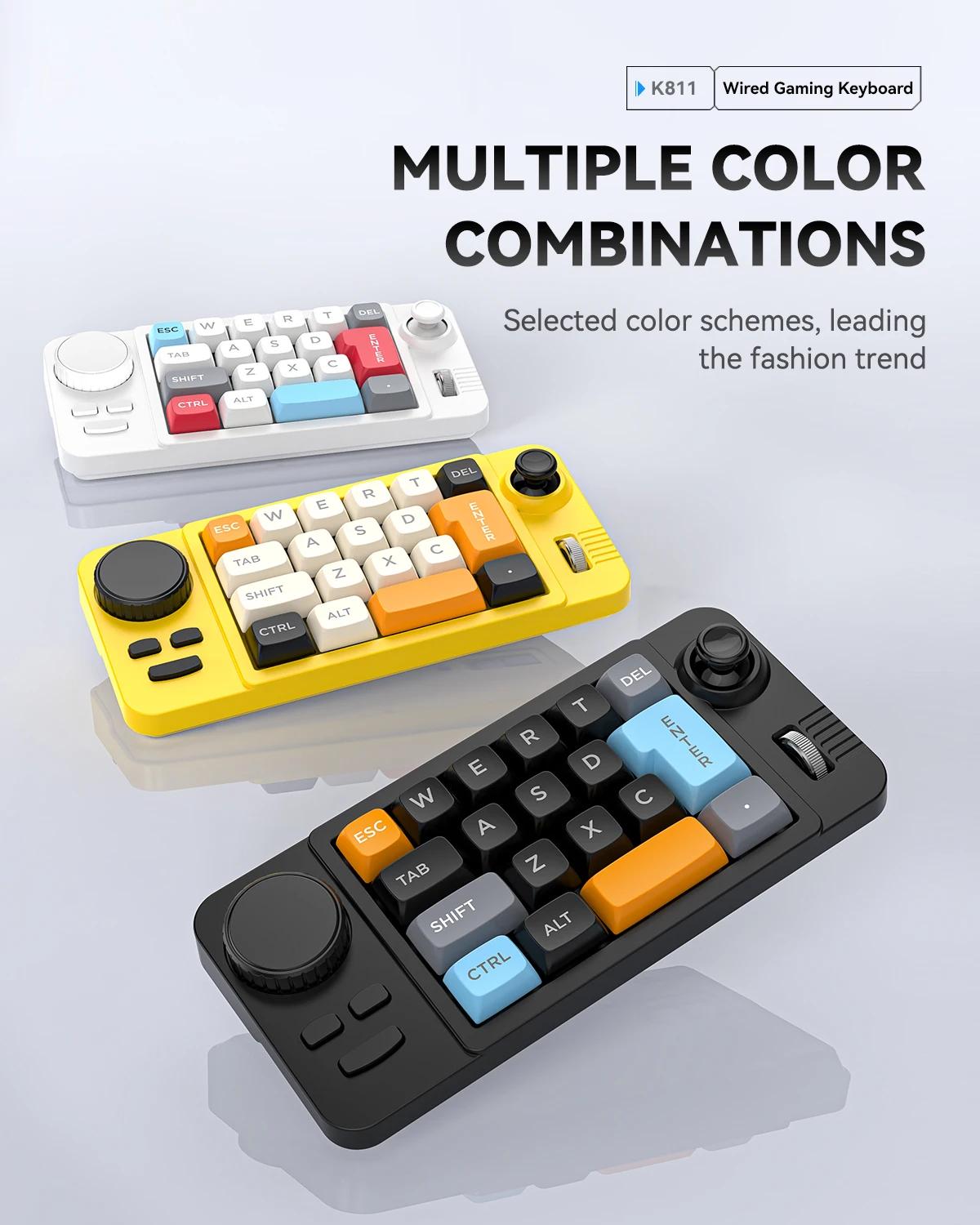

Black Mini Programmable 19-Button Onboard Macro Keyboard Mechanical Red Switch Keyboard with Colorful Light Effects
Features:
- Keyboard type: 19 key onboard macro keyboard
- Keyboard size: 202mm x 94mm x 38mm
- Keyboard weight: 238±5g

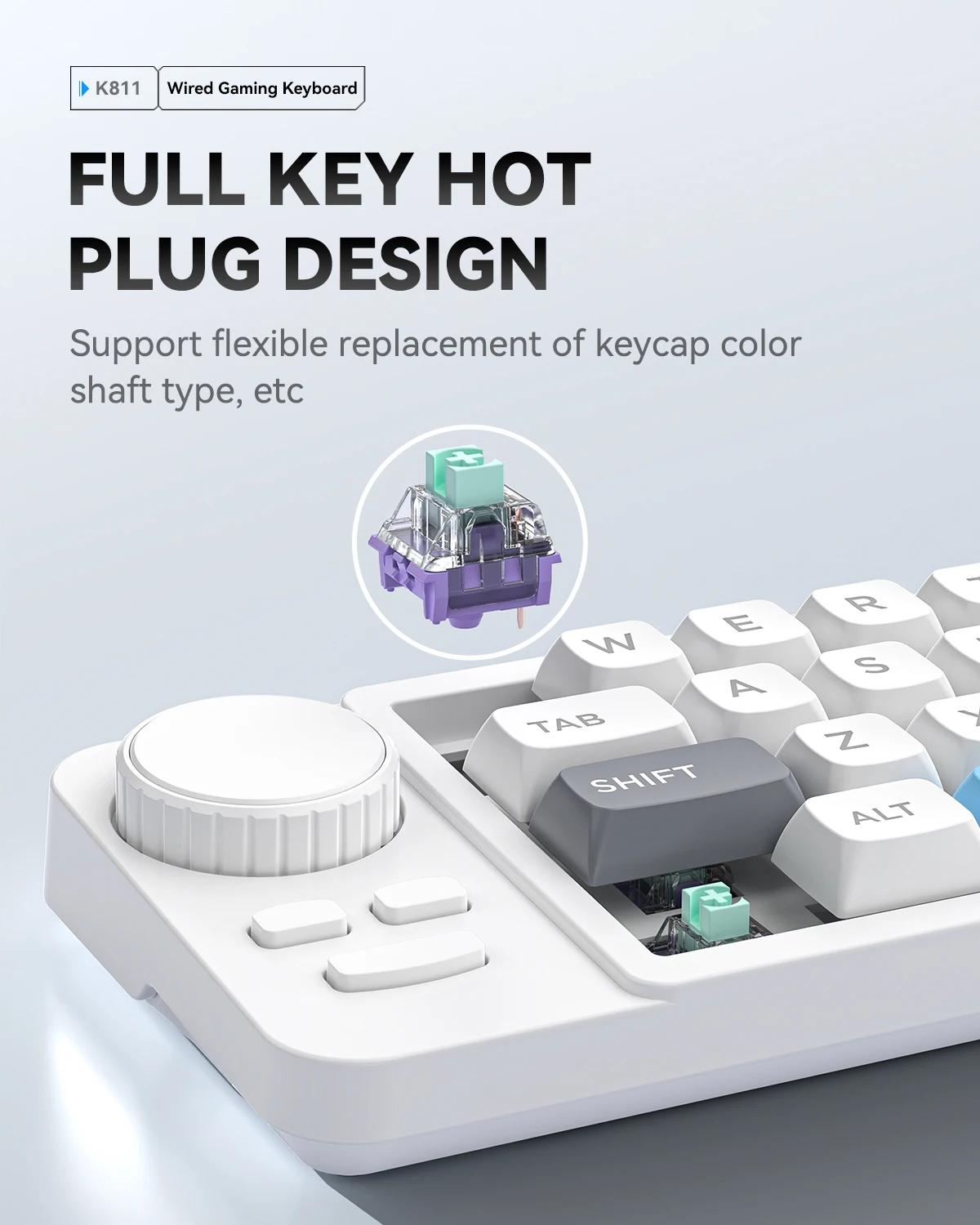

- The keys on this keyboard are pluggable shafts.
- This keyboard has a total of 22 programmable keys, 1 programmable 4-way joystick, 1 adjustable macro knob, and 1 adjustable macro scroll wheel.
- This keyboard has 2 modes that can be switched (press the joystick to switch).

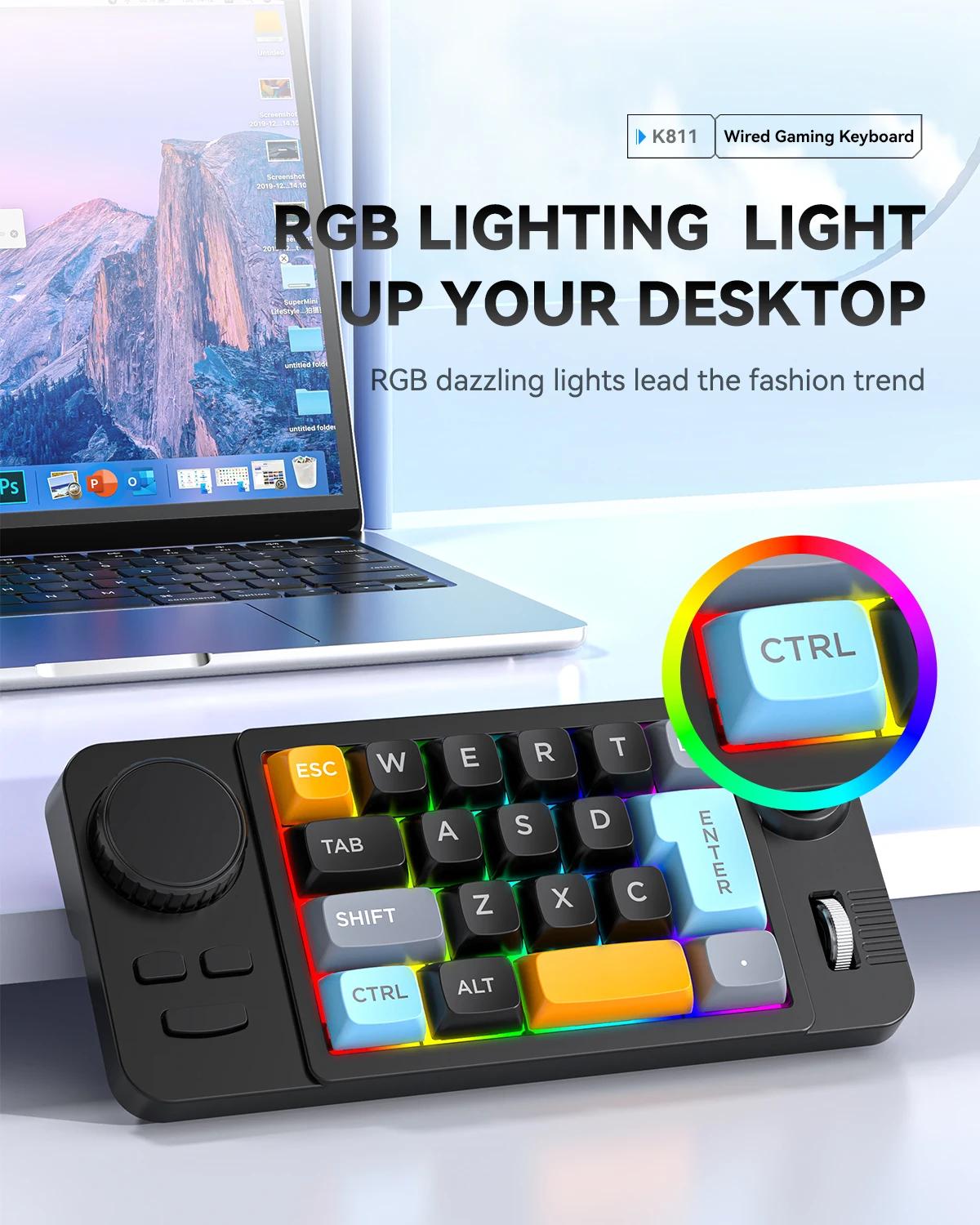

- 10 types of lights + turn off lights.

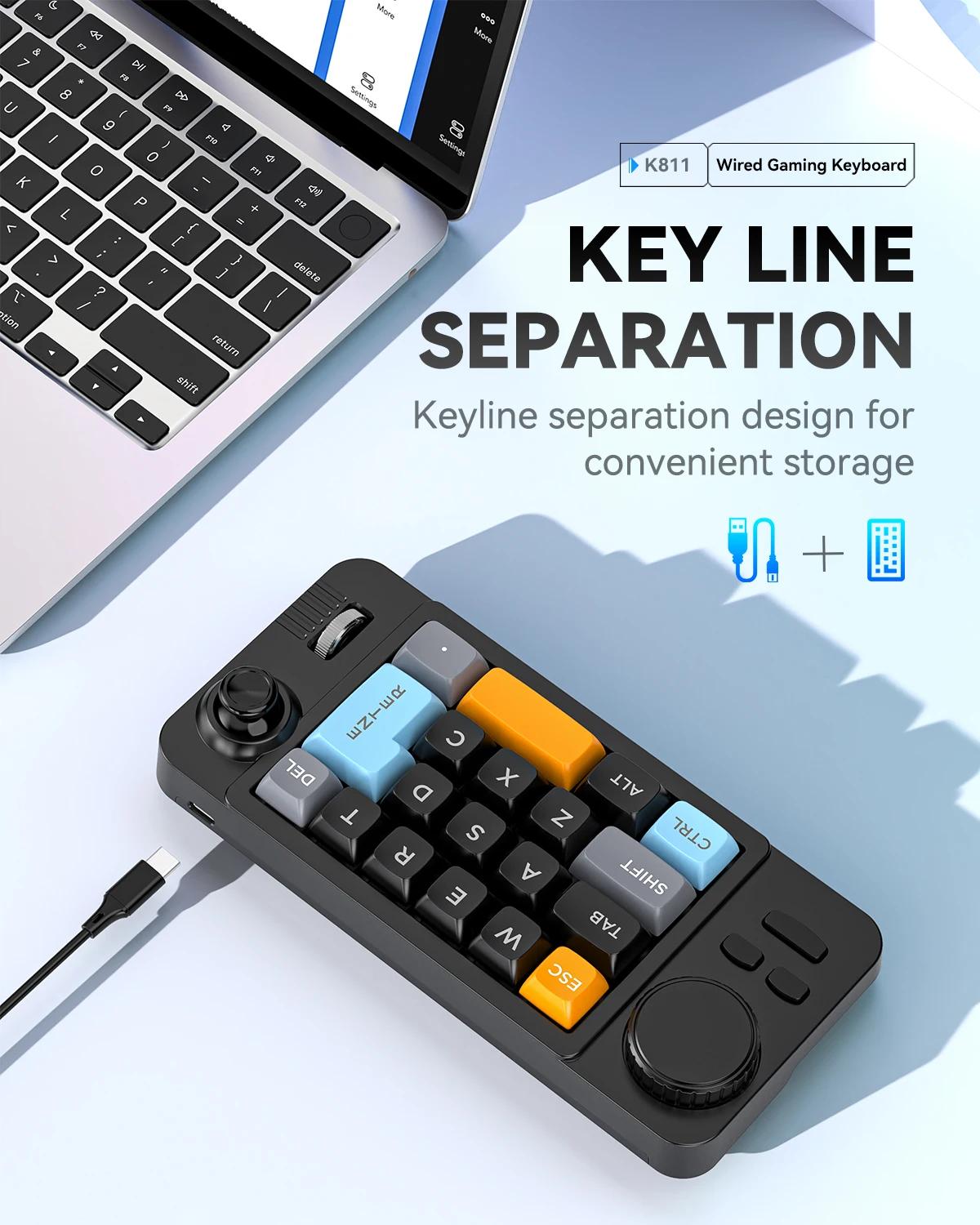

- This keyboard is a wired keyboard and does not have a wireless version.
- The keyboard supports macro recording with up to 440 keys, such as Ctrl+C.
- Macros are onboard macros that are permanently valid after being set and saved (except for some functions).
- The functions of opening website addresses, opening programs, and sending text require continuous opening of the settings software to run in the background, which is not an onboard macro function.
- The driver settings only support for Windows.
- Macro supports gray loop, hold down loop, press on to stop with any key.
- KVM virtual machines require administrator privileges to be used.
Precautions:
- This device is onboard storage, and the device's settings information and macro data are saved inside the device. There is no need to open software during use. Replacing the computer does not require setting up and can still be used (some functions are not onboard: opening website addresses, sending text, opening programs, etc.)
- Due to chip design limitations, the macro information within the entire device can only store 440 key information. If you need a macro to implement a large amount of key information (such as one click copy), please do not purchase this device
- K811 total macro capacity: 440 buttons, 880 steps.
- K811 sends text with a capacity of 120 characters.

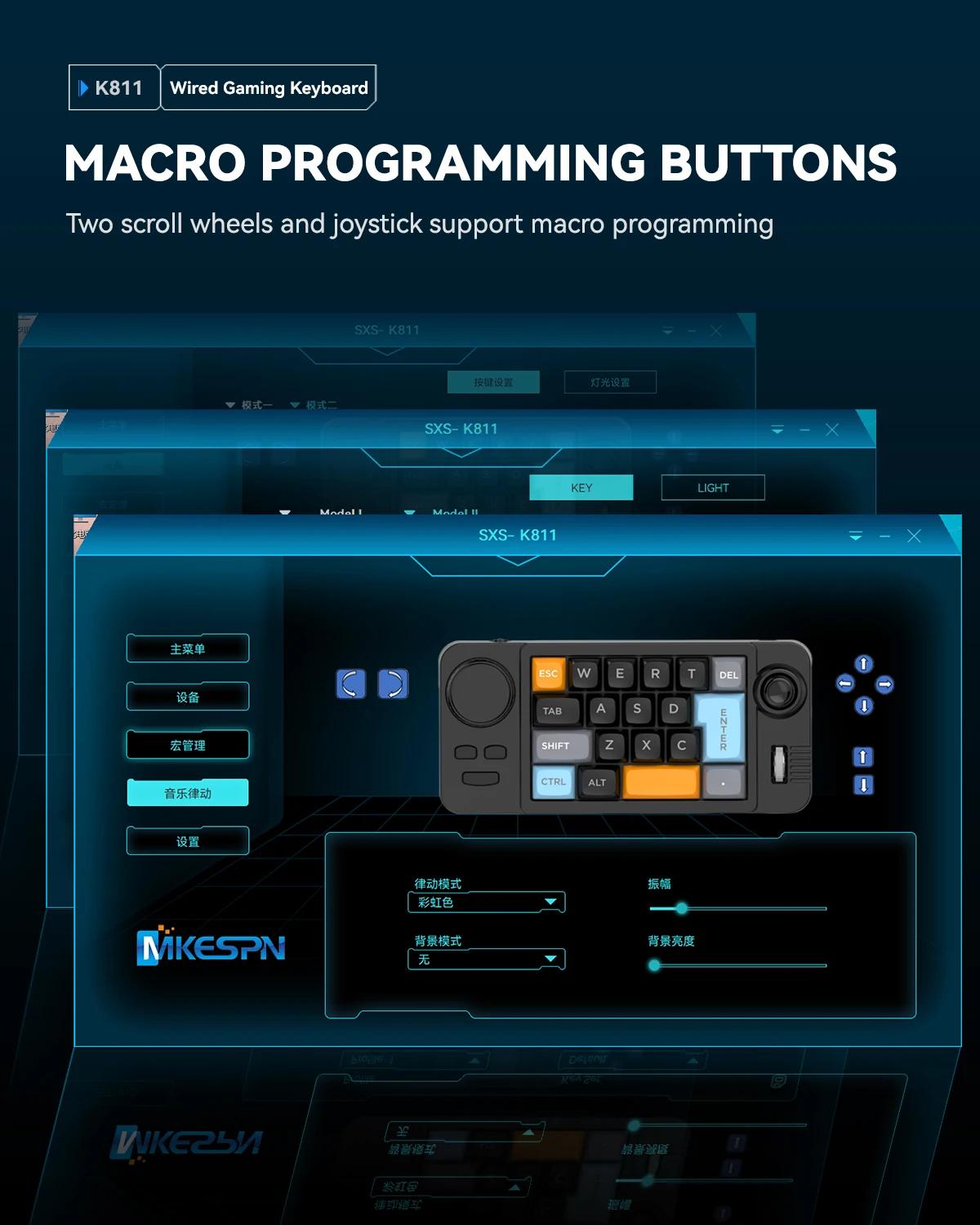

- Please contact our customer service for the device drivers after receiving the product. Settings and macro editing operations need to be completed within the drivers. Remember to save the drivers after use for easy editing next time.
- Some basic shortcut operations, such as the previous and next songs, volume +, volume -, etc., all have default options that can be set directly without the need to write macros.
- Screen specified coordinate movement is not supported in macro editing because hardware macros run within the device and cannot obtain screen information. However, they can be shifted up, down, left, and right from the current mouse position, with a resolution of 15 pixels each time, and can be inserted multiple times.
- Shortcut key settings do not limit the number of keys, allowing for multiple key presses such as shift+alt+ctrl+A+B+C, as well as multiple shortcut key combinations required by some IDE software: ctrl+A Ctrl+B
- Sequential key macros support up to 300 key inputs, such as hello or one click password input. Macro only supports buttons.
- The device can only run one macro at a time and cannot run multiple macros at the same time. When other macros are triggered, the previous macro will interrupt its operation (This feature can be used to write blank macros as interrupt functions).
- The driver only supports fixed latency and does not support random latency.
- The maximum time for macros is greater than 30 minutes (excluding loops).
- Macro loops support per loop, hold down the loop, press the start key and press any key to stop, and the loop is the entire macro loop. It does not support individual loops for certain steps.
- All device data is in one-way write mode and cannot be read from the device's macros and settings using the driver. Therefore, please save the original data of the macros written in the driver (devices that have purchased pre written macros cannot use the driver to read macros)
- The K811 keyboard only has 2 macro modes, which can be switched by pressing the joystick.
- This keyboard requires a standard 5V power supply from the computer. The unstable conversion of 5V by the car cigarette lighter can cause high voltage surge circuits and burn out. Please do not purchase for use in automobiles.

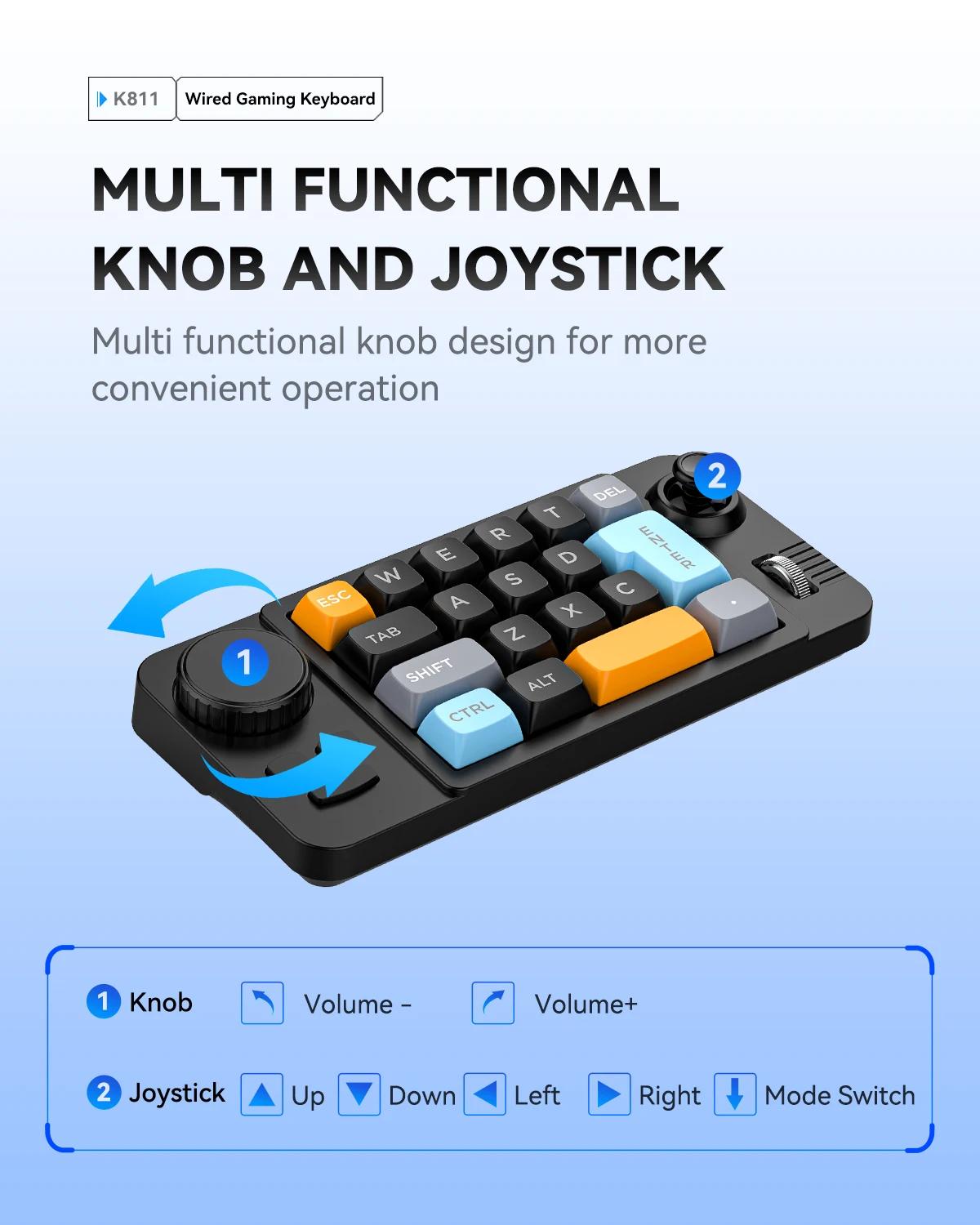

- The joystick of the keyboard is a 4-way joystick, which defaults to keyboard up, down, left, right, and the macro can be changed. The mouse cannot move freely and can only move in one direction at a time. There is a key difference between this keyboard and a regular keyboard, and it is not suitable to change the keys to play games as a regular keyboard, as the keys will be uncomfortable.
Package Included:
- 1 x Keyboard
