Blue MA-50 14-50MHz 200W 50ohms Portable Positive V Telescopic Shortwave Antenna V1.0 Female Connector
Specification:
- Brand: HAM SPACE
- Model: MA-50
- Frequency range: 14 - 50MHz (support negative V DIY for frequency below 14MHz
- SWR: <= 1.5
- Weight: 1430g (included storage bag)
- Input impedance: 50ohms
- Withstand power: 200W (CW and FT8 halve)

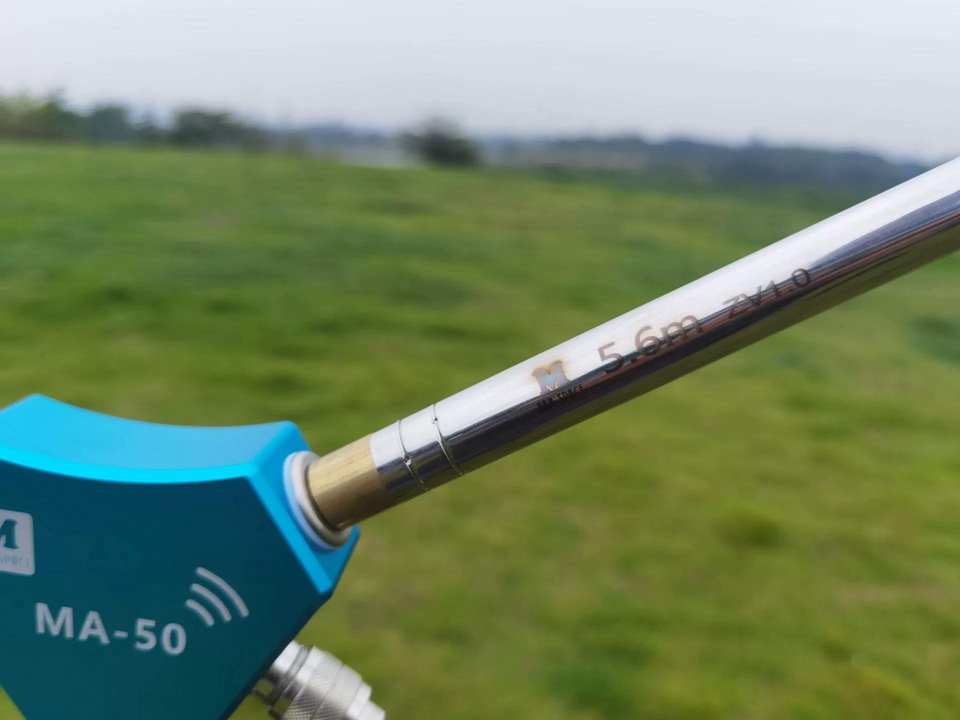

- Rod length: 5.6m
- Rod interface: M10
- Feeder interface: M female connector
- Balun base interface: M14
- Balun material and process: aluminum alloy + anodization
- Storage bag size: 57.5 x 11 x 7.5cm
Rod Length Recommends:

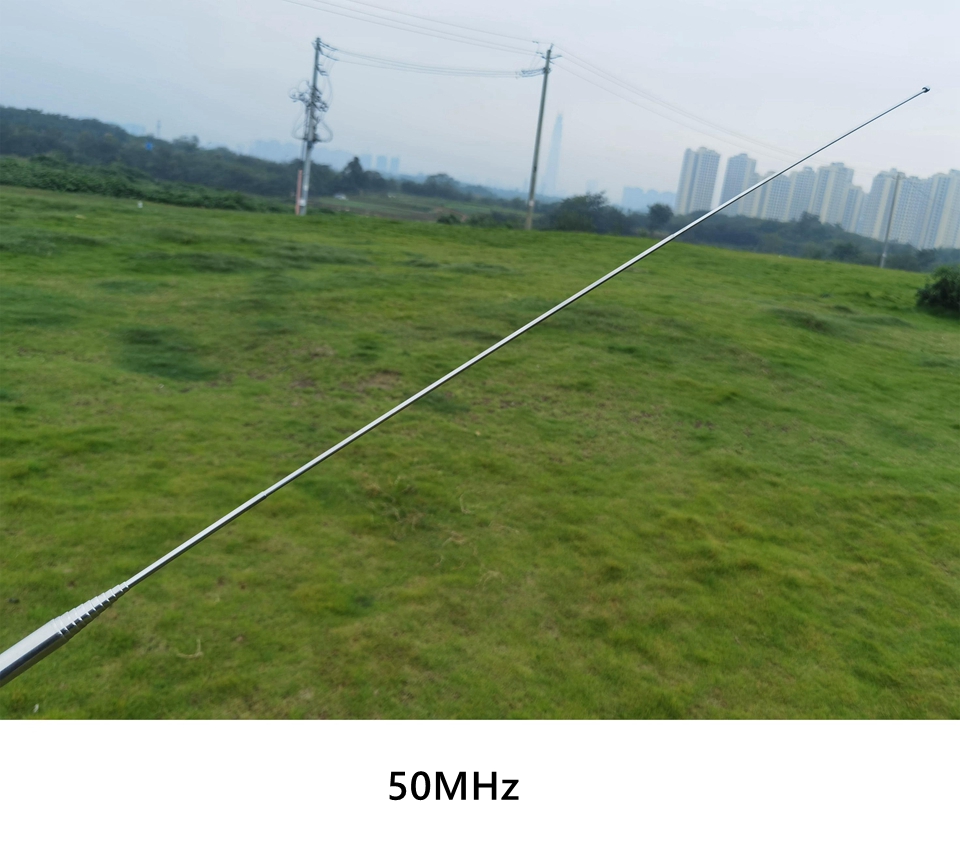

- 50MHz: pull out 2 sections + 10cm
- 28MHz: pull out 5 sections + 15cm

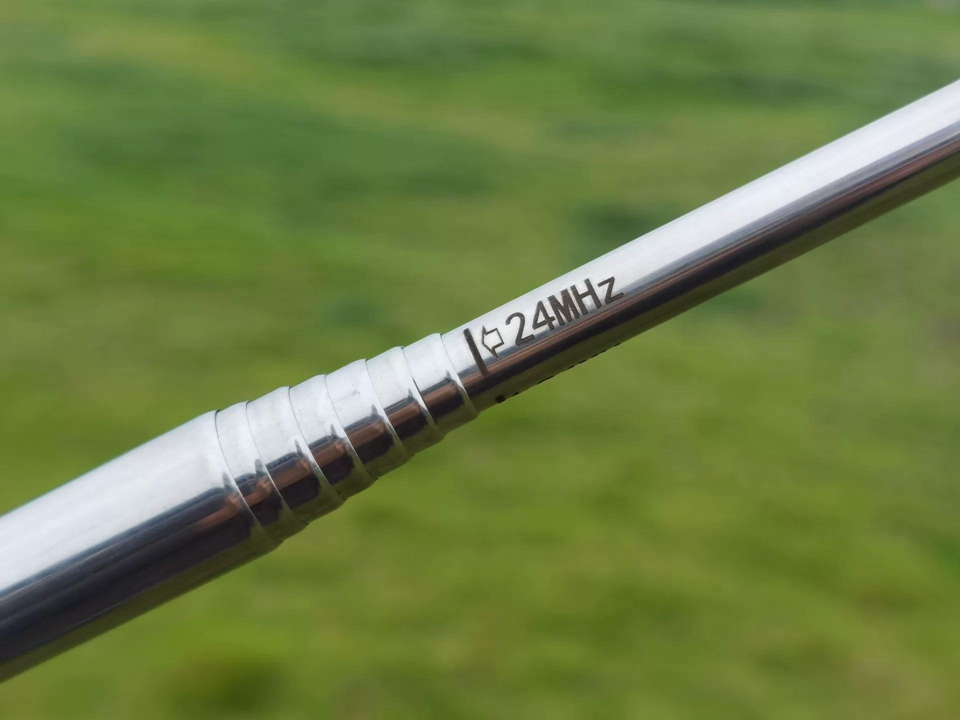

- 24MHz: pull out 6 sections + 15cm

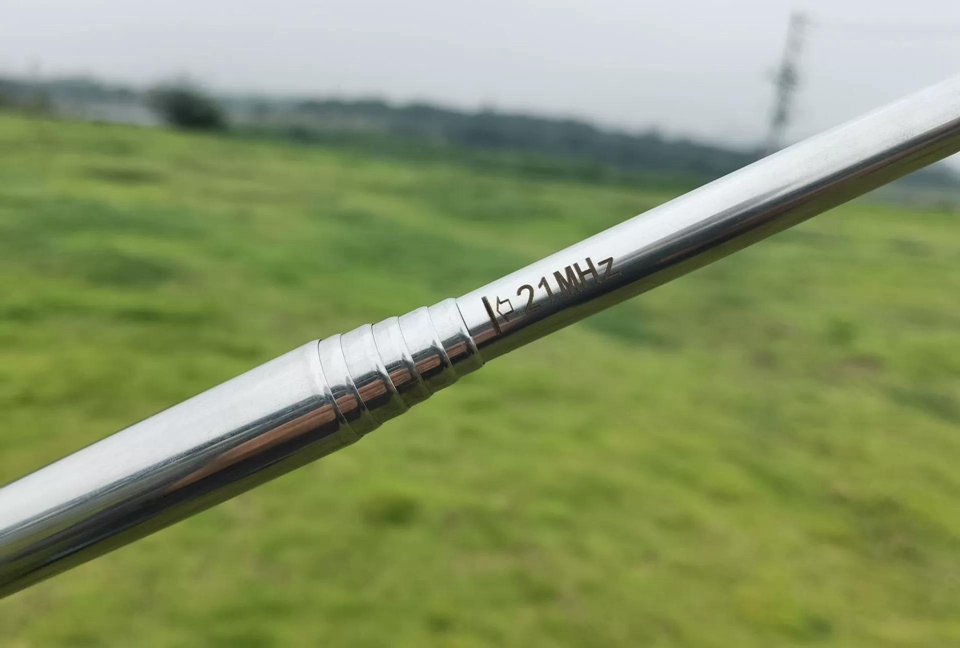

- 21MHz: pull put 7 sections + 25cm

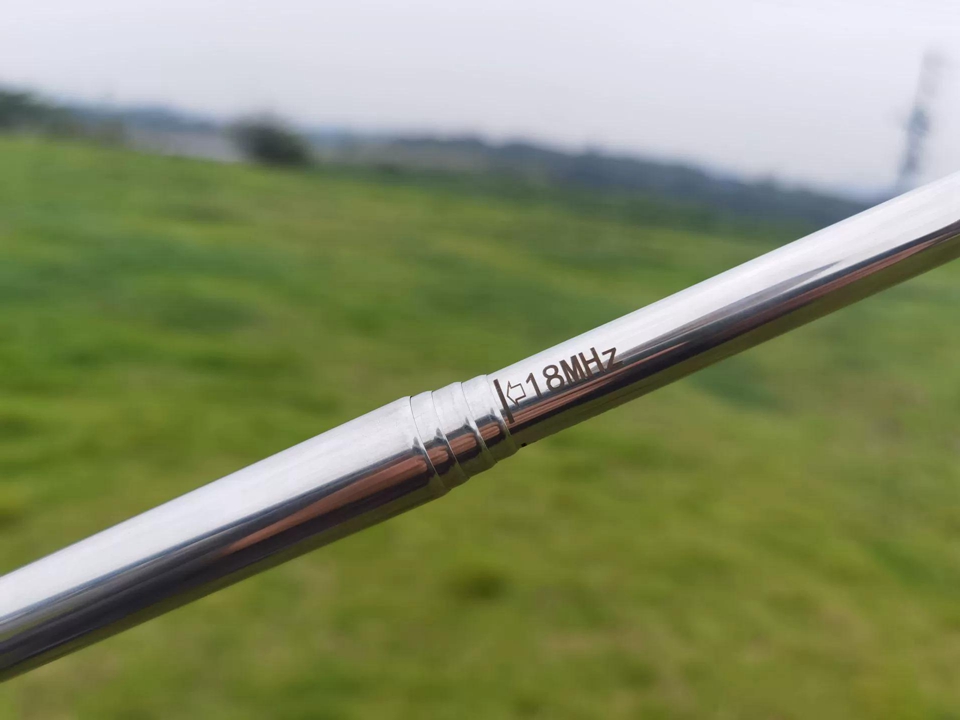

- 18MHz: pull out 9 sections + 10cm
- 14MHz: pull out 12 sections + 7cm
- Note: it is recommended to start from the thinnest section.

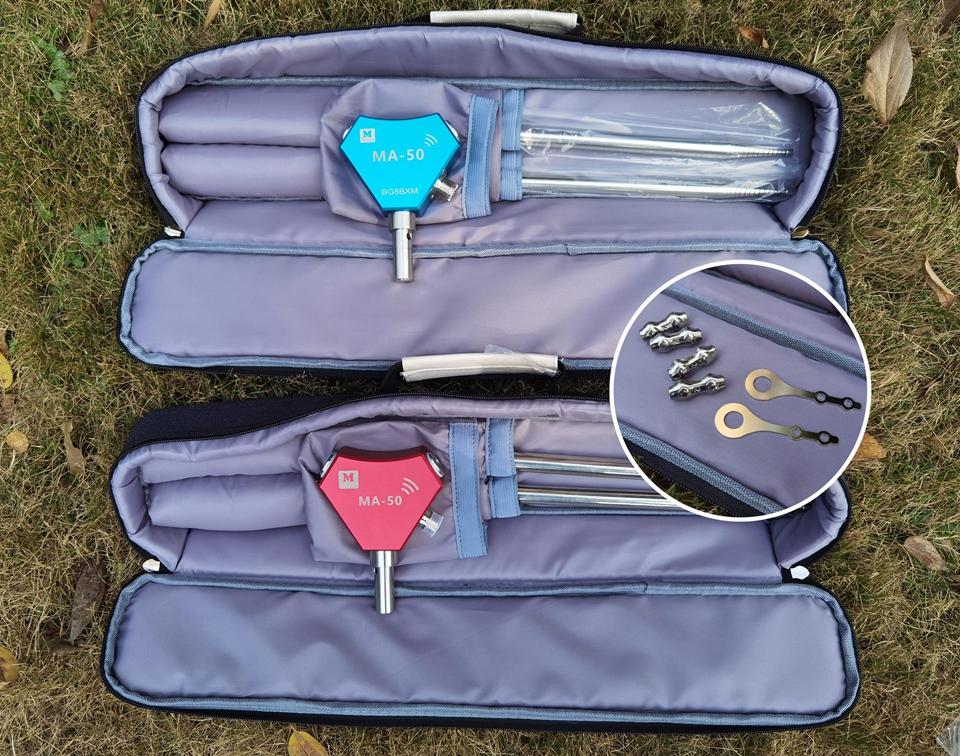

Package Included:

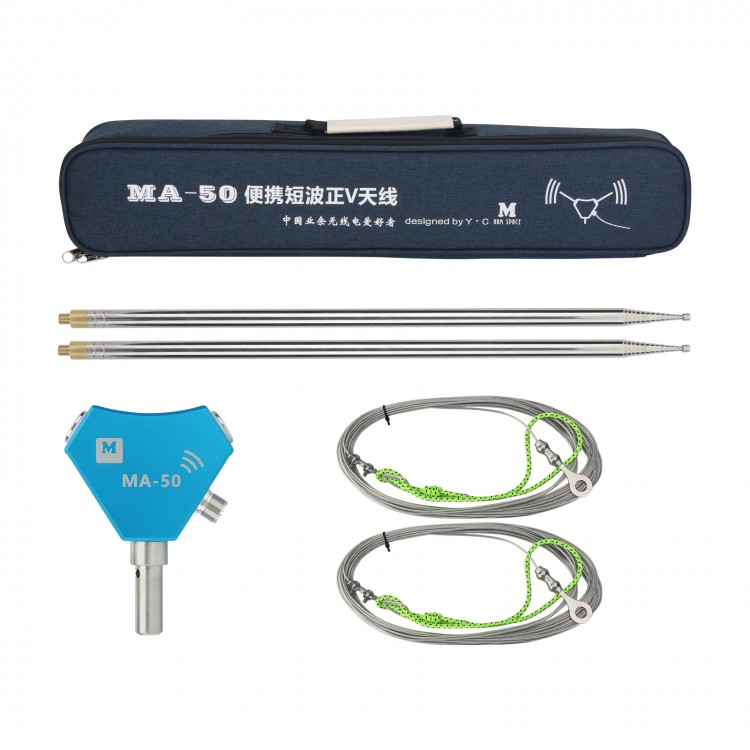

- 1 x Set of Antenna
Note:

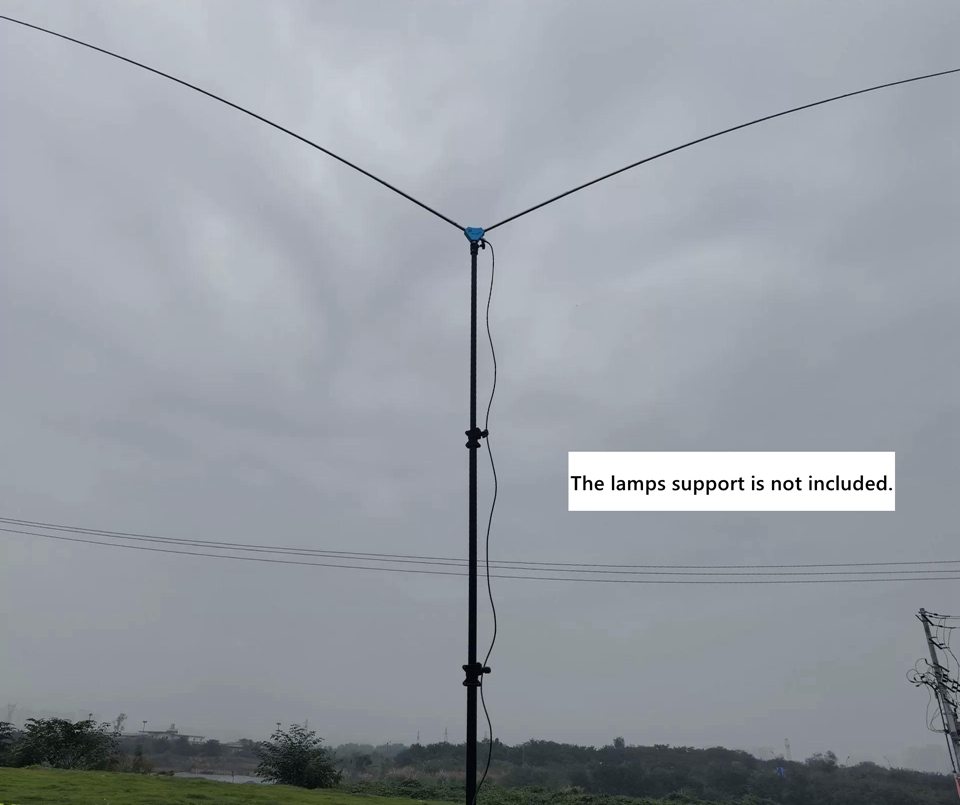

- Be sure to use wind ropes to secure during installation to avoid damaging the rods.
