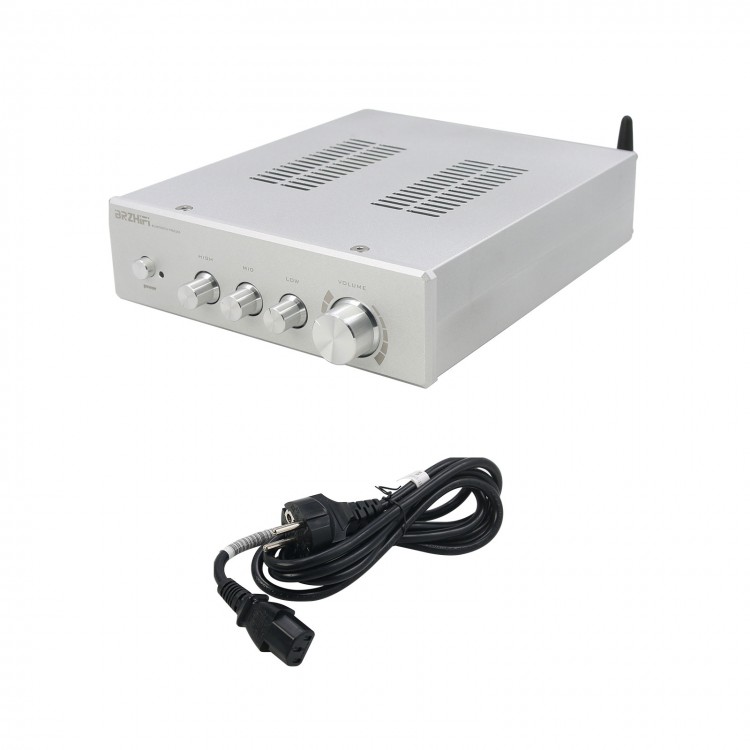

Bluetooth 5.0 Amplifier HiFi Power Amp 300Wx2 Digital Power Amplifier Assembled TPA3255-A
TPA3255:
TPA3255 is a high-performance Class D power amplifier chip. It has Class D efficiency and can bring true high-end sound quality circuits. The device features an advanced integrated feedback design and a proprietary high-speed gate driver error correction function. This technology allows the device to maintain ultra-low distortion throughout the entire audio frequency band while exhibiting perfect sound quality. The device operates in AD mode. When THD is 10%, it can drive up to two 315W / 4R loads and two 150W (unclipped power) / 8R loads, and has a 2 VRMS analog input interface to support high-performance DAC (Eg TI's PCM5242) seamless connection. In addition to excellent audio performance, the TPA3255 also has the advantages of high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved by 85mR MOSFET and optimized gate driver scheme. Compared with the traditional discrete implementation scheme, this scheme can significantly reduce idle loss.
Description:
All parts of this machine are original. With QC3003 Bluetooth 5.0 chip to achieve wireless music playing of various portable products. The machine is directly powered by 220V power supply, easy to use. The all-aluminum chassis is of fine workmanship, while ensuring good heat dissipation.
Features:
- Adopt original TPA3255 chip.
- Built-in high-power HIFI dedicated high-efficiency switching power supply, direct plug 220V.
- High-precision chip resistors ensure a good signal-to-noise ratio.
- Special inductance for audio to ensure clear and powerful sound.
Basic Performance Parameters:
- Working method: Class D
- Working voltage: AC 88-264V (international voltage can be used)
- Quiescent current: 60mA
- Work efficiency: > 90%
- Output Power:
* 315W/4Ω, distortion 10%
* 185W/8Ω, distortion 10%
* 260W/4Ω, distortion 1%
* 150W/8Ω, distortion 1%
- Frequency response: 20Hz to 20KHz
- Dynamic range:> 100 dB
- Signal to noise ratio: (SNR)> 111dB
- Machine size: 183 * 52 * 189 mm
- Machine Weight: 0.95KG
Package Included:
- 1 x Set of Power Amplifier
Note: It is assembled and ready to use.
