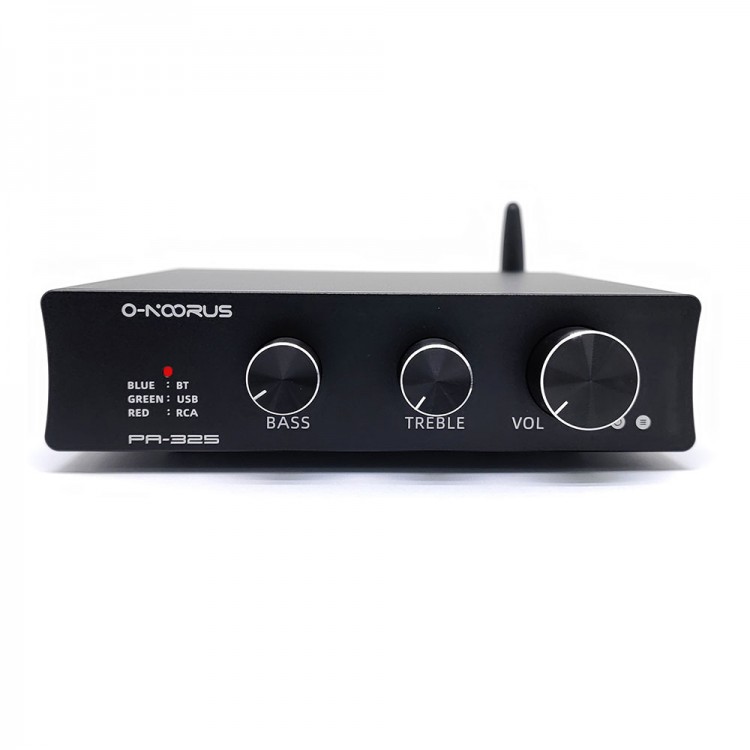

O-NOORUS PA-325 PA325 300Wx2 Digital Power Amplifier Power Amp of High Resolution for Speakers
Product Introduction:
- HiFi-level Bluetooth stereo 2.1-channel home theater amplifier with exquisite appearance and excellent performance parameters.
- It adopts electronic volume control chip NJW1194 from Japan. High level of integration to avoid interference from other signals

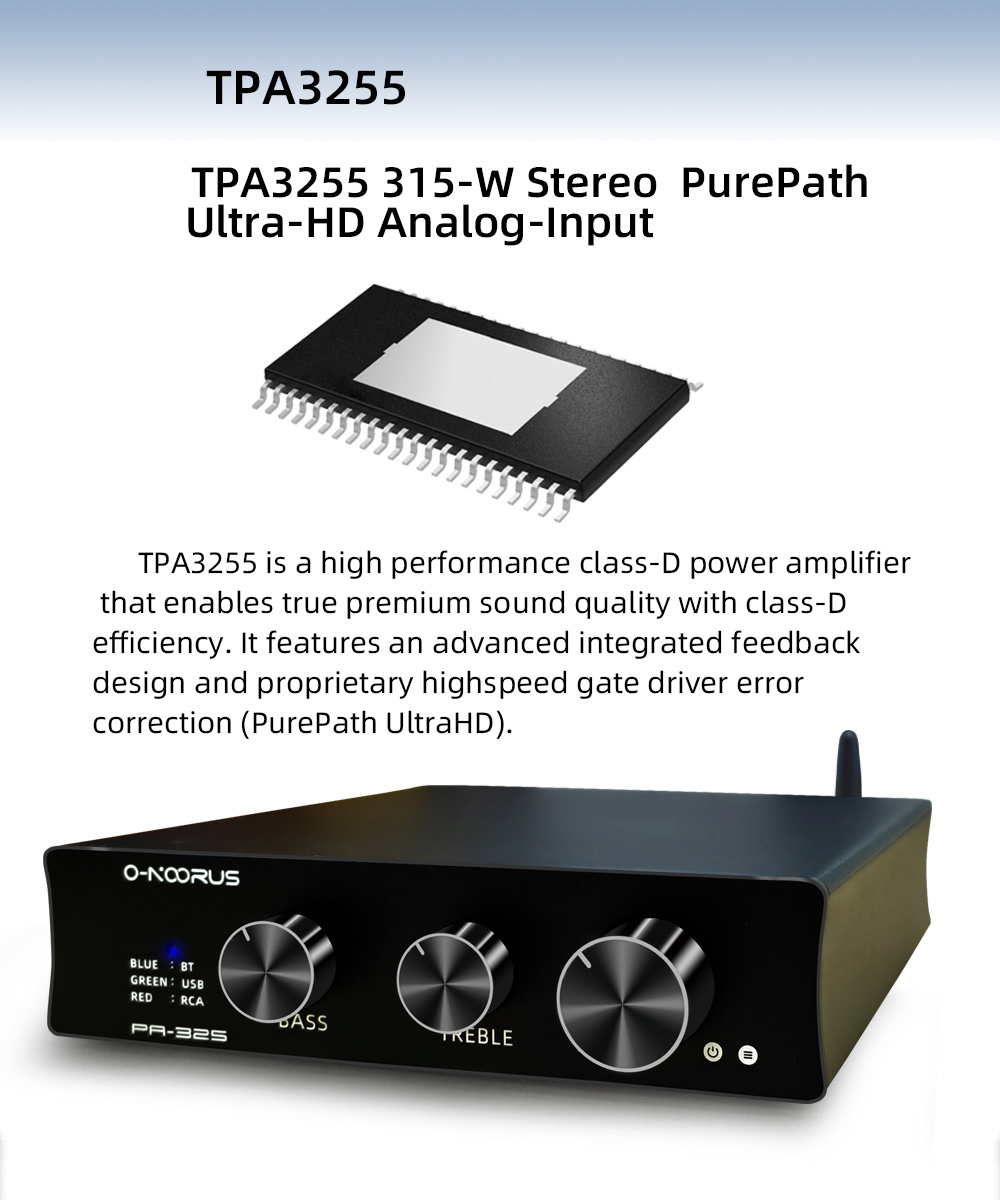

- TPA3255, power up to 150Wx2 (4Ω 24V power supply)
Properties:

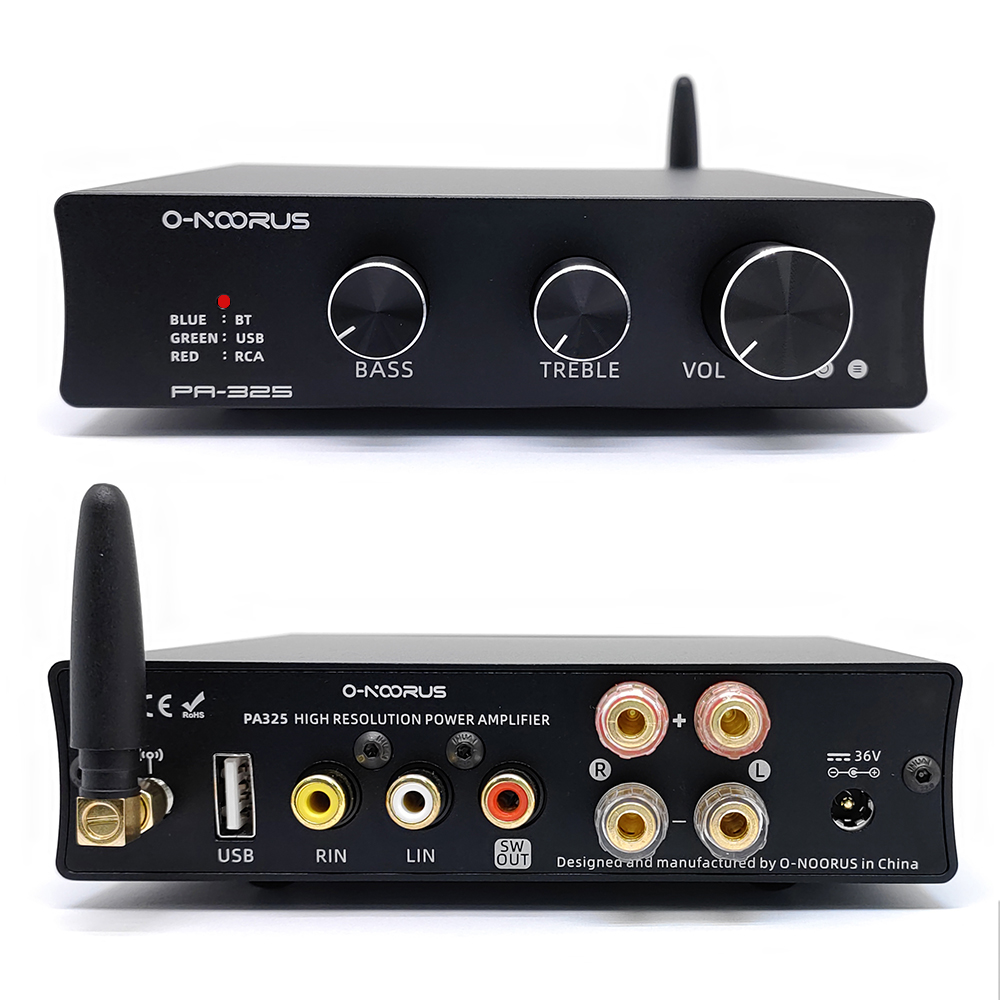

- Model: PA325 (PA-325)
- Input: Bluetooth, PC-USB, RCA and USB
- Output: passive speaker, subwoofer and active speaker
- Amplifier IC chip: TPA3255
- Electronic volume: NJW1194
- Treble/Bass: NJW1194
- Power adapter: 24V/6.75A
- U disk support: WAV/APE/FLAC/MP3
- Bluetooth version: 5.0, supporting SBC and AAC
- Size: 145 x 136 x 40mm/5.7 x 5.4 x 1.6"
Performance:
- Frequency range: 10Hz-30kHz
- Input sensitivity: 200mv
- THD+N Ratio: 0.084%

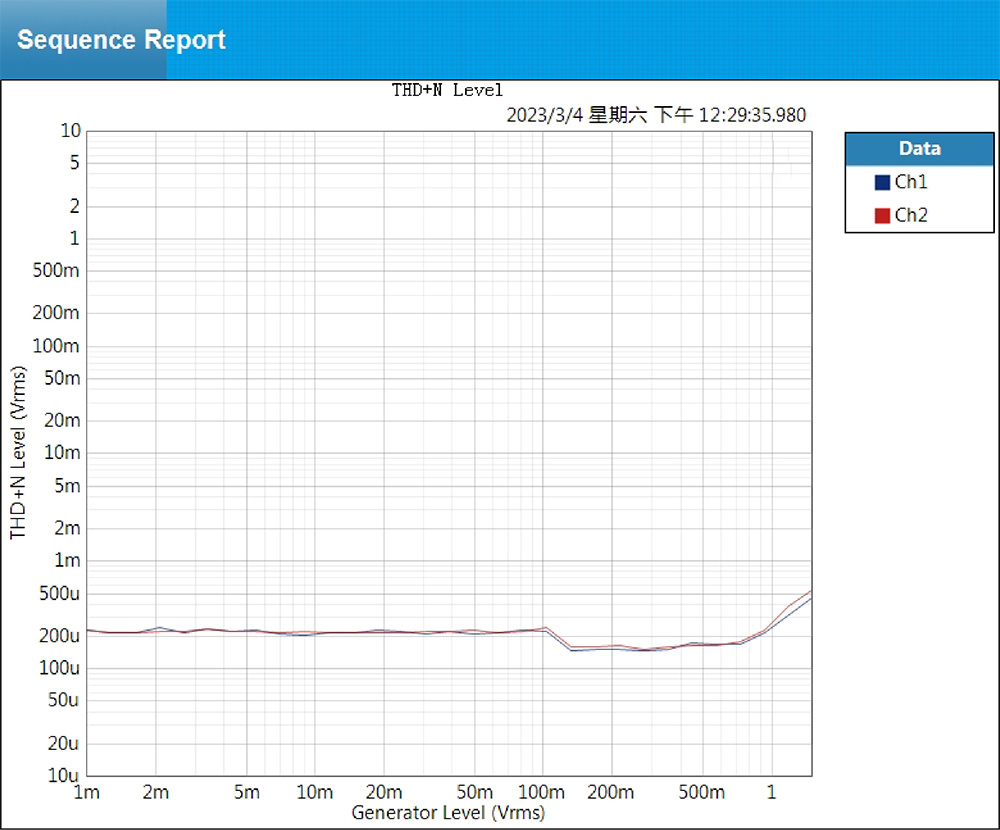

- THD+N Level: 3.626 mVrms
- THD Ratio: 0.097%
- THD Level: 4.788 mVrms
- Signal to Noise Ratio: 103.974 dB
- Noise Level: 95.1 uVrms
- Maximum power: 150W * 2 (4)
- Terminal impedance: 2 Ohms - 8 Ohms
Package Included:
- 1 x PA325 amplifier
- 1 x 24V 6.75A power adapter
- 1 x USB data cable
- 1 x Bluetooth antenna
- 1 x Manual
