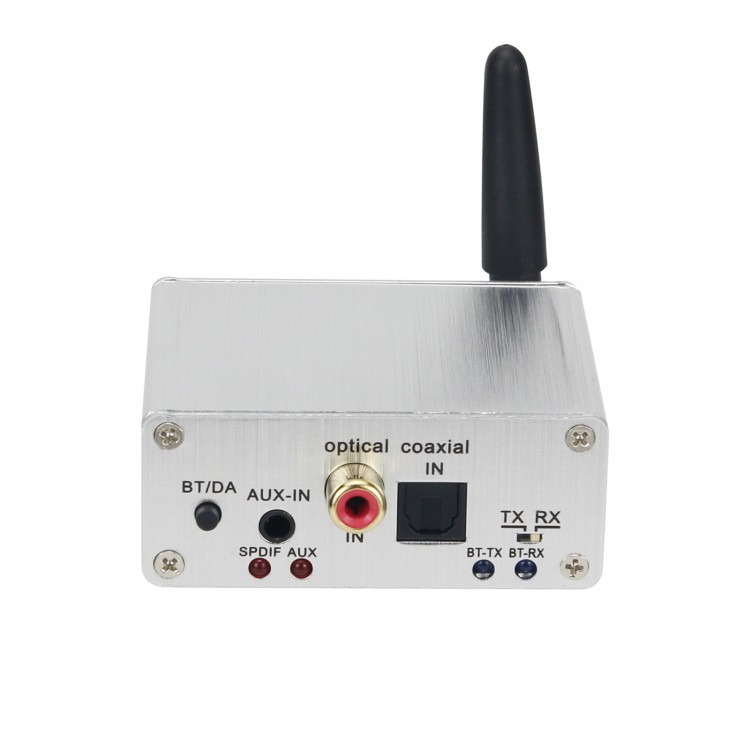

Bluetooth 5.0 Transmitter Receiver Aluminum Alloy Coaxial Optical 30MS Low Latency Headset Output

Bluetooth 5.0 Transmitter Receiver Aluminum Alloy Coaxial Optical 30MS Low Latency Headset Output

Advantages:
- AUDIO-OUT: 3.5MM stereo output. Support 8 ohm/16 ohm headphones
- Receiving mode: support optical output, coaxial output, analog output. Realize optical coaxial input to analog stereo signal output (Bluetooth reception to optical digital signal; Bluetooth reception to coaxial digital signal; Bluetooth reception to analog stereo signal; Optical coaxial input to analog stereo signal)
- Transmitting mode: support optical input, coaxial input, analog input, computer USB data input (Optical input to Bluetooth signal; coaxial input to Bluetooth signal; analog stereo input to Bluetooth signal; computer USB input to Bluetooth signal)
- Two identical products can be connected to each other (the same two boards are connected using an independent unique protocol (for Actions) to achieve 30mm low latency)

Functions:
1. Bluetooth receiver. It is paired and connected with mobile phones, tablets, and other devices to realize the output of optical coaxial digital signals and left and right stereo analog signals. Users can use connection ports to output signals (optical coaxial and stereo signals do not need to be switched, and the default is to output at the same time)
2. In Bluetooth receiving mode, optical coaxial digital signal can be converted to left and right channel stereo output signal. Users need to connect TVs, computers, set-top boxes, game consoles and other digital signals with optical fiber coaxial to the optical coaxial input of this product through optical coaxial cable. Then it can realize this function by switching to SPDIF mode. Avoid buying a bunch of audio converters to save users money.
3. Left and right channel stereo to Bluetooth transmission. Connect the left and right channel signals of TV, computer, set-top box, game console, etc. to the AUX input of this product through an AUX cable. Then the product button switches to AUX signal access mode to realize this function. Use a device with Bluetooth receiver to pair and receive, such as Bluetooth speakers, Bluetooth headsets. If the transmitter and receiver use the same two boards for pairing, the effect will be better and the delay will be lower.
4. USB signal cable to Bluetooth transmission mode. After inserting a TYPE-C mobile phone charging cable into your computer, the product will switch to USB signal access mode by pressing the button. At this time, a hardware device named Actoin audio will be updated on the computer to take over the audio output of the computer. The audio signal is transmitted to this product via USB data communication and sent via Bluetooth. Then use a device with Bluetooth receiver to pair and receive, such as Bluetooth speakers, Bluetooth headsets. At this time, the computer is empowered with Bluetooth in seconds. If the transmitter and receiver use the same two boards for pairing, the effect will be better, and the delay will be lower.

Specifications:
- True stereo output
- Bluetooth reduction distortion: 0.15%
- Total harmonic distortion + signal-to-noise ratio: 95db
- Audio DAC and ADC: 24-bit (24bit)
- Chip module: 24bit-192K digital audio analysis capability
- CPU: 240MHZ RISC-32 CPU processing core
- DSP: 400MHZ CEVA digital signal processing core
- Bluetooth version: 5.0 compatible with V4.2/V4.2LE/V2.1+EDR
- Bluetooth protocol: support Bluetooth 5.0 and support A2DP, AVRCP, HFP, SPP, BR HID HOST, BR HID DEVICE, BLE HID and other Bluetooth protocols. Support SBC and MSBC encoding
- Transmit and receive delay: support for ACTX-LL low delay, as low as 30MS
- Size: 6.5 x 7.0 x 2.5 cm/2.6 x 2.8 x 1"
- Net Weight: 0.15 kg/0.3 lb

Package Included:
- 1 x Bluetooth Transmitter Receiver
- 1 x Antenna
