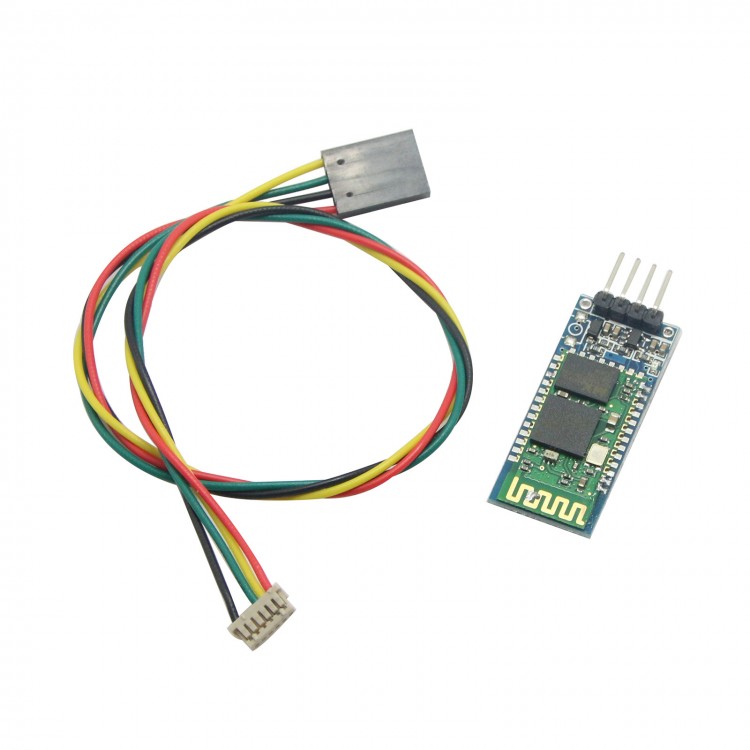

Bluetooth Module Bluetooth Data Link for Amp 2.5/ 2.6 Flight Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.56
  • Price in reward points: 96 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.37 $9.18 $8.89 $8.51 Contact US
Quantity:

Bluetooth Module Bluetooth Data Link for Amp 2.5/ 2.6 Flight Control

Description:

- Connect to your vehicle using Bluetooth!
-  This Bluetooth data link module allows you to connect a Pixhawk or APM autopilot to a Bluetooth-compatible Android device using DroidPlanner or Andropilot ground station apps.
- Leave your telemetry radio and OTG cable at home, and make a direct Bluetooth connection for pre-flight mission planning and vehicle setup.
- APM cable (five-position DF13 to FTDI) 20 cm

Includes:
- Bluetooth module
- one cable

Specs:
- Dimensions : 1.4" x 0.6" x 0.17"
- Weight 9.6 g (0.3 oz)
- Operation voltage: 3.6 to 6 V
- I/O level: 3.3 V
- Typical -80dBm sensitivity
- Up to +4dBm RF transmit power
- UART interface with programmable baud rate
- Default baud rate: 57600
- Supported baud rates: 9600, 19200, 38400, 57600, 115200, 230400, 460800
- Pairing code: 1234
- Auto-connect to the last device on power as default
- Permit pairing device to connect as default
- Integrated antenna
- Range: 10 m

Note: This module is intended for pre-flight ground use only. It is not a replacement for an RC transmitter and receiver. The range of the connection is limited to standard Bluetooth range (10 m).
