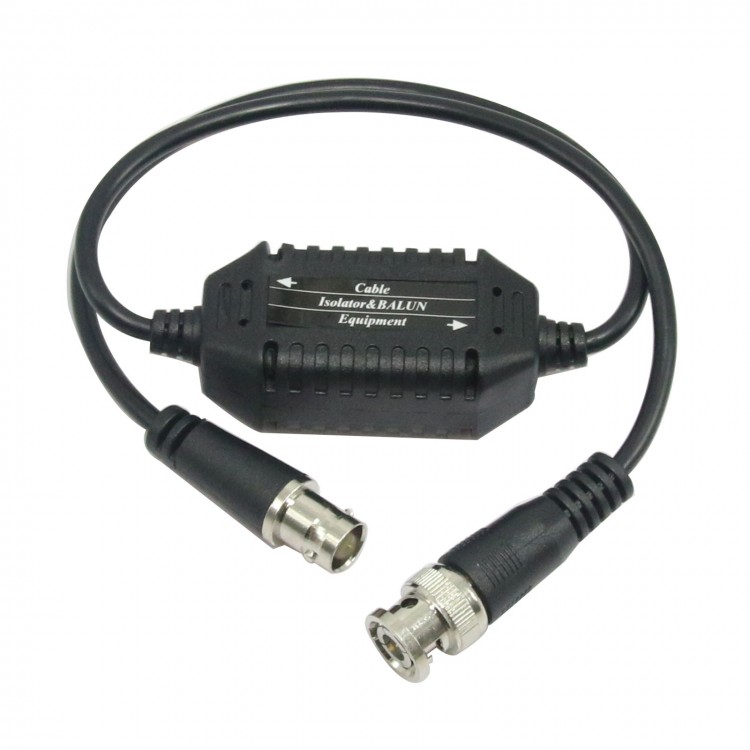

BNC CCTV Ground Loop Isolator Filter GB001

Description:

- Video Ground Loop Isolator could reduce "Ground Loop Interference" with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.

Specification:
- 100% brand new and high quality
- BNC male to BNC female with mini cable 15cm on both sides
- Passive, no power required
- Prevents video-signal distortion caused by video ground loops
- Eliminates picture tearing , cross talk and rolling
- Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra - interference rejection
- Built in TVS for surge protection
- Insertion loss: 0.5dB
- Frequency response: 0-3dB at 10Mhz
- Input / output resistance: 75ohm
- Isolation voltage: DC 600V
- Insulation resistance: 100m ohm
- Transient voltage suppressors: 12Vrms
- Cable length: 50cm( approx)
