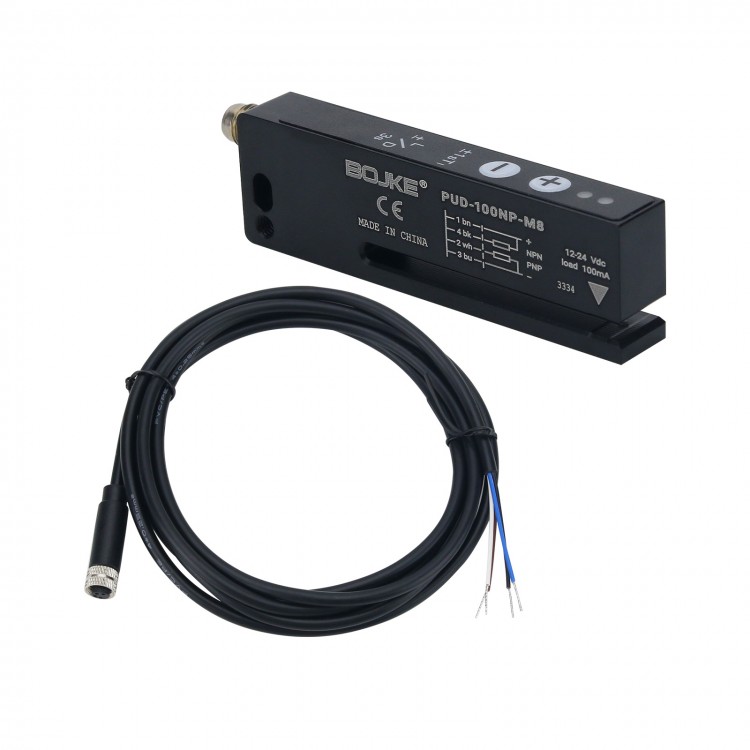

BOJKE PUD-100NP-M8 Universal Label Sensor NPN PNP for Labeling Counting Positioning Label Stripping
Description:

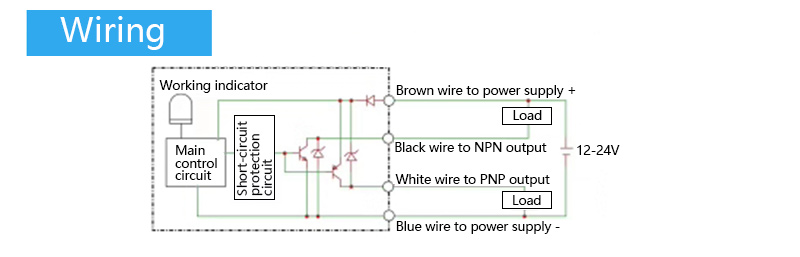

PUD-100NP-M8 is a universal label sensor. It enables NPN and PNP output. It is simple to set up. Four-wire wiring method (wire 2m/6.6ft in length), NPN output and voltage DC12~24V. Wiring method: brown wire to positive pole, blue to negative pole, black to NPN output and white to PNP output.
It is widely used in labeling, counting, positioning and label stripping.
The plug-in type label sensor makes it more convenient to replace and debug. It is highly recommended.
Technical Parameters:
- Model number: PUD-100NP-M8
- Power supply voltage: 12-24VDC±10%, floating P-P less than 10%
- Current consumption: less than 20mA
- Output status: NPN and PNP are output simultaneously. NO/NC can be switched
- Detection output: NPN and PNP collector open circuit output, maximum current 100mA, external maximum voltage 30VDC and residual voltage less than 1.5V
- Response time: less than 100uS
- Protection circuit: reverse connection protection of power supply; output short-circuit or overload protection
- Indicator: Red: function indicator; Green: Output LED
- Outlet method: M8 aviation plug
- Ambient temperature/humidity: -25°C to 55°C; 35% to 85% relative humidity
- Material and protection class: metal housing and IP65
- Vibration resistance: 10 to 55Hz, double amplitude: 1.5mm and 2 hours for X, Y and Z axis respectively
Operating Instructions:
1. Threshold learning: press buttons + and - at the same time over 1S. When the red light is off, release the buttons. When the red light flashes, you can pull labels back and forth to learn;
2. Switch NO/NC: press buttons + and - at the same time over 3S. When green indicator light is switched (normally open/normally closed has been switched), you can release the button;
3. Fine-tune the threshold: Press button + or - to fine-tune the threshold.
Package Included:
- 1 x Label Sensor
