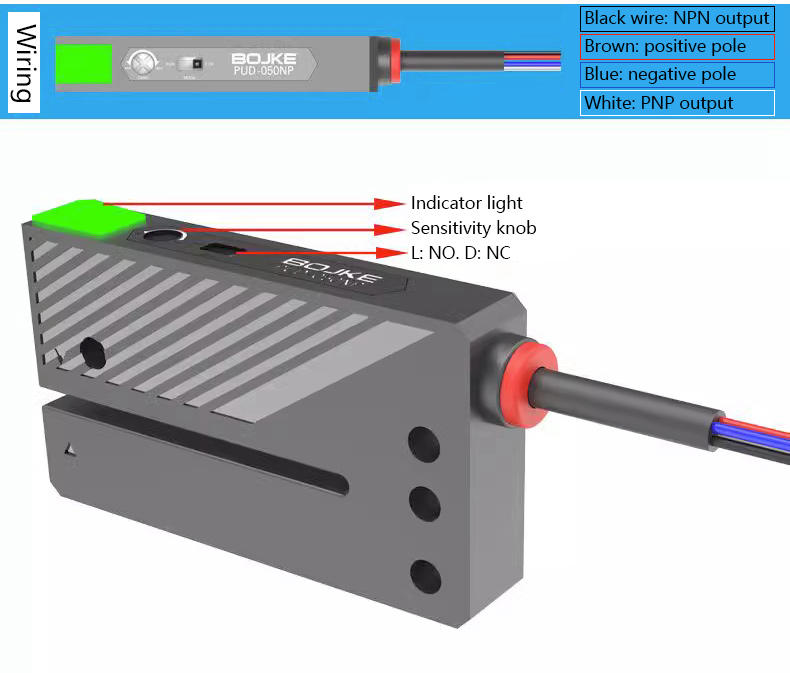

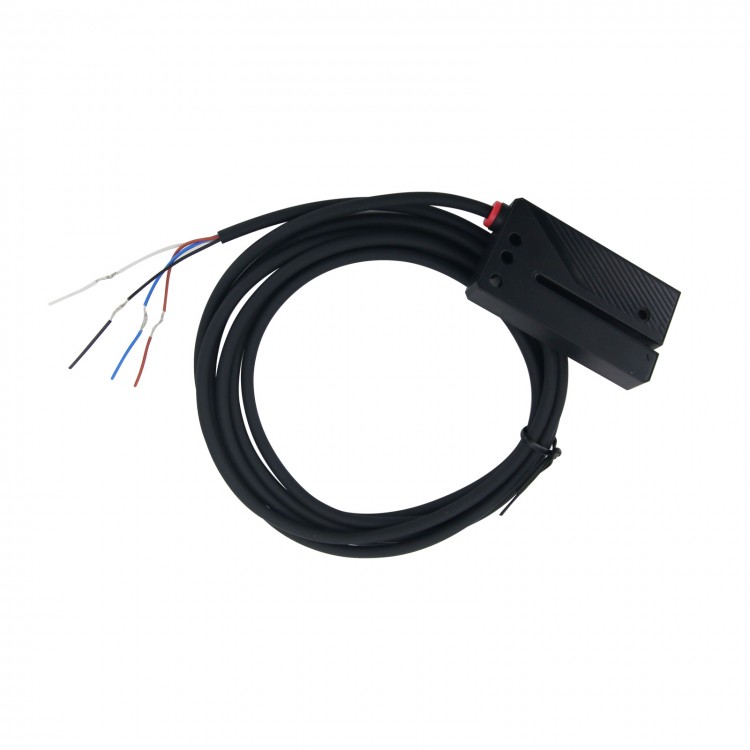

BOJKE PUD-050NP Label Sensor Widely Used in Labeling Counting Positioning and Label Stripping
Description:
PUD-050NP is economical and practical. If you do not have high requirements for accuracy and speed (5 times in 1 second or less), you can choose this one.
It is widely used in labeling, counting, positioning and label stripping.
Technical Parameters:
- Model number: PUD-050NP
- Model/Category: NPN output
- Detected objects: Non-transparent labels
- Connection: 2m/6.6ft power cord
- Power supply: 12-24VDC
- Label width: 2mm/0.08"
- Label clearance: 2mm/0.08"
- Control output: Transistor open-collector output
- Sensitivity adjustment: knob + external control line
- Maximum output current: 100mA
- Current consumption: 25mA
- Power supply with reverse connection protection: Built-in
- Short circuit and overload protection: Built-in
- Switching mode: Light/dark switching

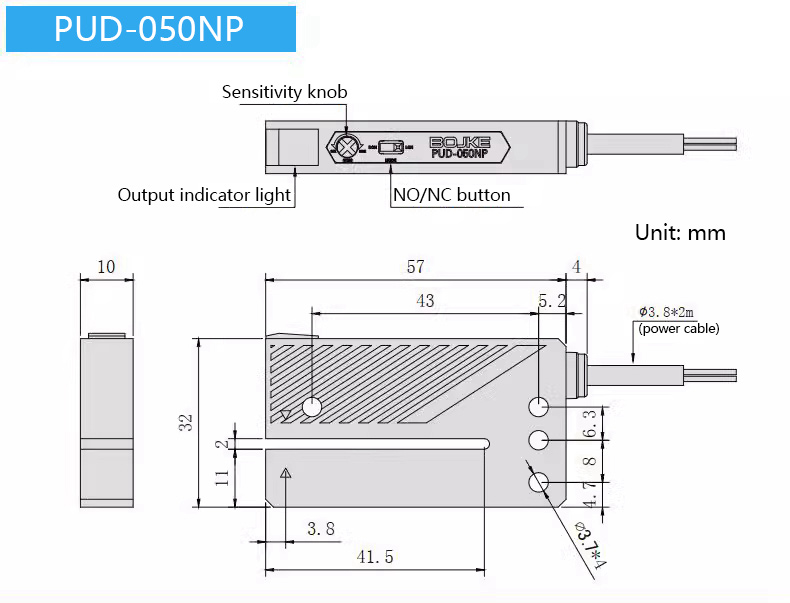

- Dimensions: 61 x 10 x 32mm/2.4 x 0.4 x 1.3"
- Housing material: Plastic
Package Included:
- 1 x Label Sensor
