Boscam FPV 5.8Ghz 200mw Transmitter TS351 with 80TVL COMS Camera PAL for FPV QAV250 Quadcoppter

Boscam FPV 5.8Ghz 200mw Transmitter TS351 with 80TVL COMS Camera PAL for FPV QAV250 Quadcoppter

5.8Ghz 200mW transmitter(TS351) Specifications:
- 5.8Ghz 200mW transmitter(TS351). This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 2km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.

Transmitter Features:
- Output impedance: 50Ohm
- Output power: 21~23dBm
- Channels: 8
- Transmitter operating voltage: 7~15VDC / 150mA
- Receiver operating voltage: 5VDC
- Operating temp: -10~85C
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75Ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K/Ohm
- Weight: 25g
- Antenna connector: RP-SMA
- Dimensions: 55x26x17mm

Channels
- 5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

Camera Description:
- Image sensor: 1/3 inch
- Pixel: 720*576 (PAL only)
- Definition: 800TVL
- Min illumination: 0.01 Lux/F1.2
- SNR: >50dB
- Automatic gaining control: automatic
- White balance mode: automatic
- Backlight compensation: automatic
- Electric shutter: 1S-1/1000 sec
- Working voltage: DC12V ±1V
- Working current: 45mA
- Working temperature/ appropriate:  -20℃--60℃/0%～98%
- Size: 32*32mm
- Weight: 13g
- Lens type: 2.8mm non infrared lens(100 degree)

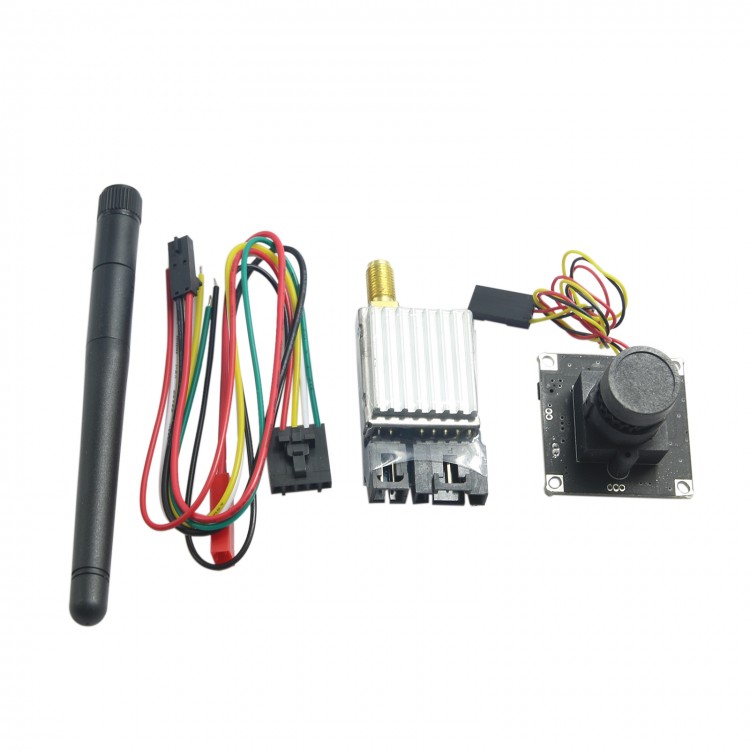

Package Include:
- 1 x Boscam FPV 5.8Ghz 200mw Transmitter TS351
- 1 x 800TVL COMS Camera PAL
