FPV 5.8Ghz 200mw Transmitter & RC805 Receiver & 800TVL Camera & HD Monitor Set with Holder for DJI Phantom QVA250
Features:
Small size and lightweight.
High output power, low power consumption, and low harmonic radiation of the transmitter.
Easy 8 channels for selection via the micro dip switches.
The transmitting distance is up to 2 kilometers in the open area.
Ideal for FPV, wireless remote control aircraft, wireless remote control vehicle and so on.
Specifications:
| Wireless transmitter | |
| Model no. |
TS351 5.8G 200mW 8 channel AV transmitter |
| Modulation | Wideband FM modulation |
| Video format | NTSC / PAL |
| Output impedance | 50Ohm |
| Output power | 22dBm (21~23dBm) |
| Channel frequency |
CH1 5705/ CH2 5685/ CH3 5665/ CH4 5645 CH5 5885/ CH6 5905/ CH7 5925/ CH8 5945 MHz |
| Operating voltage | 12V (7.0-15V) |
| Supply current | 150mA |
| Operating temperature | -10 ~ +85? |
| Video band width | 8.0MHz |
| Audio carrier frequency | 6.5MHz |
| Video input level | 1.0Vp-p (0.8~1.2Vp-p) |
| Video input impedance | 75ohm |
| Audio input level | 0.5~2.0Vp-p |
| Audio input impedance | 10Kohm |
| Antenna connector | SMA |
| Product size | Approx. 5.5 * 2.6 * 1.7cm / 2.2 * 1.0 * 0.7in (No including antenna) |
| Product net weight | Approx. 25g / 0.88oz (No including antenna) |
| Wireless receiver | |
| Model no. | RC805 |
| Receiving frequency | 5725 ~ 5865MHz; 8 Channels |
| Receiving sensitivity | -90dBm |
| Frequency control | Built-in frequency and phrase lock loop |
| Double lines AV output | Analog AV signal output |
| Antenna connectors | Inside the needle |
| Power supply voltage | 6.5V ~ 12V |
| Supply current | 150mA |
| Operating temperature | -10 ~ +50? / +14 ~ +122? |
| Storage temperature | -20 ~ +60? / -4 ~ +140? |
| Operating humidity | 85% RH |
| Housing color | Black |
| Product size | Approx.7.5 * 5.4 * 1.6cm / 3.0 * 2.1 * 0.6in(No including antenna) |
| Product net weight | Approx. 42g / 1.47oz (No including antenna) |
| Total information | |
| Package size | Approx. 13.6 * 6.7 * 7.2cm / 5.4 * 2.6 * 2.8in |
| Package weight | Approx. 177g / 6.24oz |
7 Inch Monitor Specification:
- display: TFT-LCD digital high-definition screen, make the image clearer, more realistic color;
- Resolution: 800 (H) × RGB × 480 (V) HD resolution;
- Display format: 16:9. Entertainment and rear view dual display format;
- Power consumption: 7.5W
- Rated Voltage: DC 9V ~ 14V
- Signal System: PAL / NTSC / AUTO Compatible with all Signal System;
- Interface: 2 AV video interface, 1 standard power interface 12. Operating Temperature: -15 ° C to 50 ° C
- Storage Temperature: -20 ° C to 80 ° C
- no signal blue power is applied to the signal input automatically start
FPV Monitor Mount Holder Features:
- Model:FPV-TV
- Suitable for the transmitter with metal bracket
- Material: Carbon fiber
- Light weight, High strength
- Suitable for 7inch or 8inch monitor
- Compatible with futaba 9c 10c JR 9c WFLY transmitter etc
800TVL Camera Description:
- Image sensor: 1/3 inch
- Pixel: 720*576 (PAL only)
- Definition: 800TVL
- Min illumination: 0.01 Lux/F1.2
- SNR: >50dB
- Automatic gaining control: automatic
- White balance mode: automatic
- Backlight compensation: automatic
- Electric shutter: 1S-1/1000 sec
- Working voltage: DC12V ±1V
- Working current: 45mA
- Working temperature/ appropriate: -20℃--60℃/0%～98%
- Size: 32*32mm
- Weight: 13g
- Lens type: 2.8mm non infrared lens(100 degree)

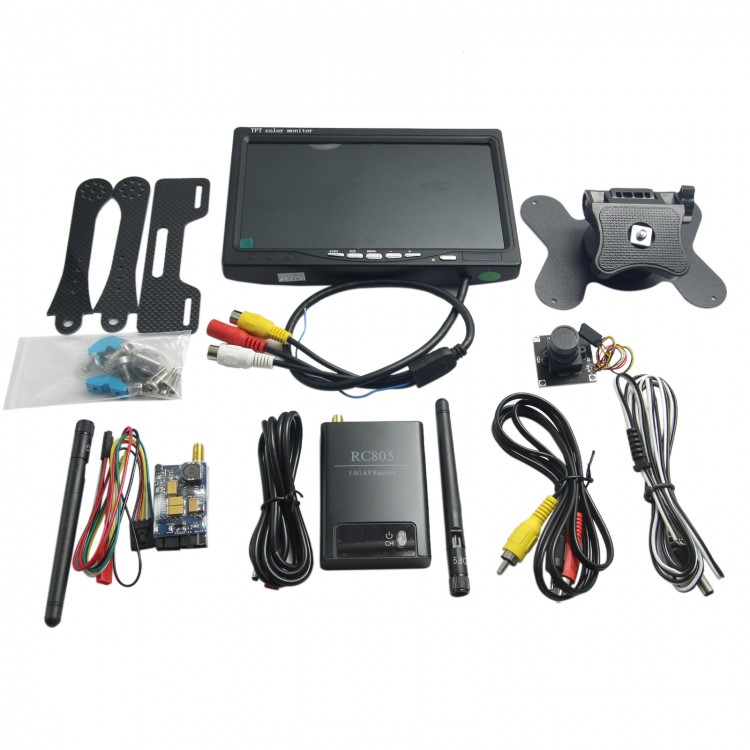

Package List:
- 1 x 5.8G 200mw TS351 Transmitter
- 1 x 5.8G RC805 Receiver
- 1 x 7" FPV LCD Color Monitor Video Screen FPV Device for Rc Airplane Multicopter Car
- 1 x Carbon Fiber Monitor Holder
- 1 x FPV HD 800TVL Camera
