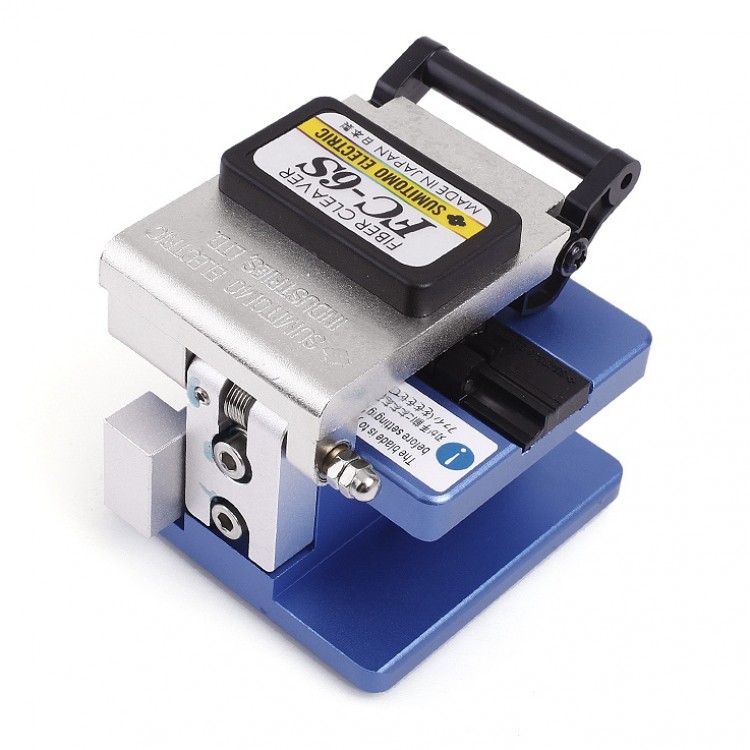

Brand New SUMITOMO FC-6S Optical Fiber Cleaver Cutter Cutting Tools 250 ~ 900um
Introduction:
- The FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.
- It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving
Specification:
- Provides approximately 36,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade
Applicable fibers | Singlemode or Multimode Use |
Fiber Diameter | 125um |
Coating Diameter | 250um ~ 900um |
Typical Cleave Angle | 0.5 Degrees |
Cleave Length | 9 - 16mm (Single Fiber - 0.25mm Coating) |
10 - 16mm (Single Fiber - 0.9mm Coating) | |
Blade Life Time | 36,000 cleaves (3,000 per blade position) |
Cleaver Dimensions | 65 * 63 * 63mm |
Weight | 475g |
