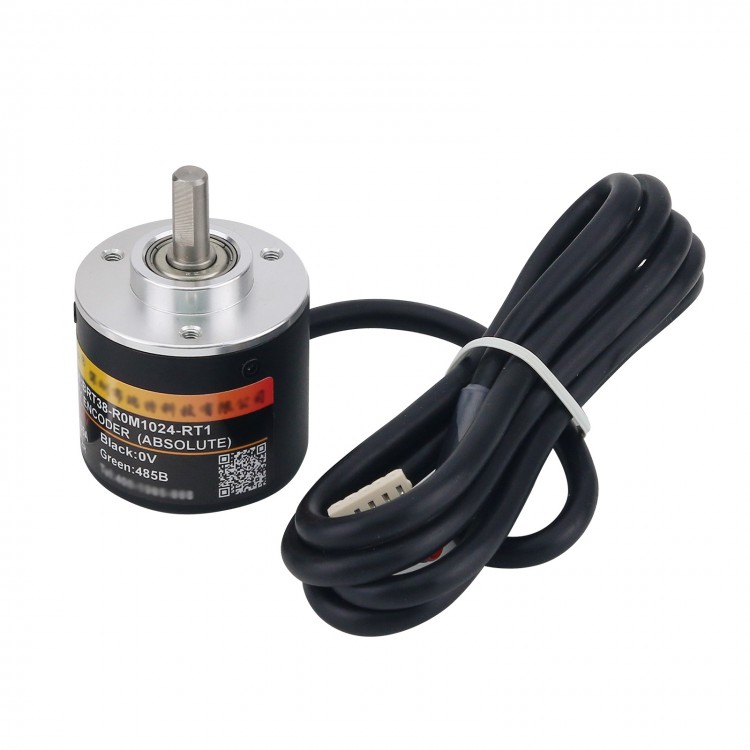

BRT38-R0M1024-RT1 Absolute Encoder Industrial Rotary Encoder (10Bit 6MM Shaft 38MM RS485 5-24V)

BRT38-R0M1024-RT1 Absolute Encoder Industrial Rotary Encoder (10Bit 6MM Shaft 38MM RS485 5-24V)

Features:
- The absolute encoder supports PLC for Siemens, Xinjie, Omron, Mitsubishi, Delta, etc. Support PLC with a RS485 interface
- Provide detailed connection example tutorials and professional PLC technical support
- The rotary encoder has passed tests before delivery
- The product has a two-year guarantee
- It can be used to test angle, displacement and rotation speed
- Power-off memory: After rebooting, it returns the value before the power outage. No reset operation is required
- It supports RS485 and 5-24V wide voltage
- Supported acquisition equipment include PLC, recorder, MCU, computer and serial port screen
- Free host computer software: Parameters (baud rate, ID and return mode) can be set through the software
- High accuracy and linearity. It adopts high-precision chip, high-precision magnet and clock-grade precision gears
- Chip advantages: based on advanced anisotropic magneto-resistive technology, 0~360° absolute angle position detection is enabled
- The angular output delay can be as fast as 10 microseconds
- The operating temperature is -40 to 85°C
- Automatic nonlinear calibration mode, countless interactions and automatic calculation of compensation, achieving an INL of <±0.07°
- Strong anti-interference performance: with double-layer magnetic shield protection, it has passed EMC test

Specifications:
- Shaft diameter: 6mm/0.2"
- Body outer diameter: 38mm/1.5"
- Resolution: 10bit
- Wide voltage: 5-24V
- Cable length: 1.2m/3.9ft default

Wiring:
- Red: power supply +
- Black: 0V (GND)
- Yellow: Zero (ZR)
- Green: RES485B
- White: RS485A

Attention:
1. Please check the voltage on the encoder label;
2. Yellow cable: under normal circumstances, it is not connected. Contact with the yellow line should be avoided, otherwise it may cause a short circuit and communications is impossible;
3. Zero setting function: yellow wire connected to black wire to achieve encoder zeroing;
4. Restore factory settings: yellow wire is connected to black wire after power failure. Power on, hold for 2 minutes and then reset. Separate the two cables after reset.

Package Included:
- 1 x Absolute Encoder
