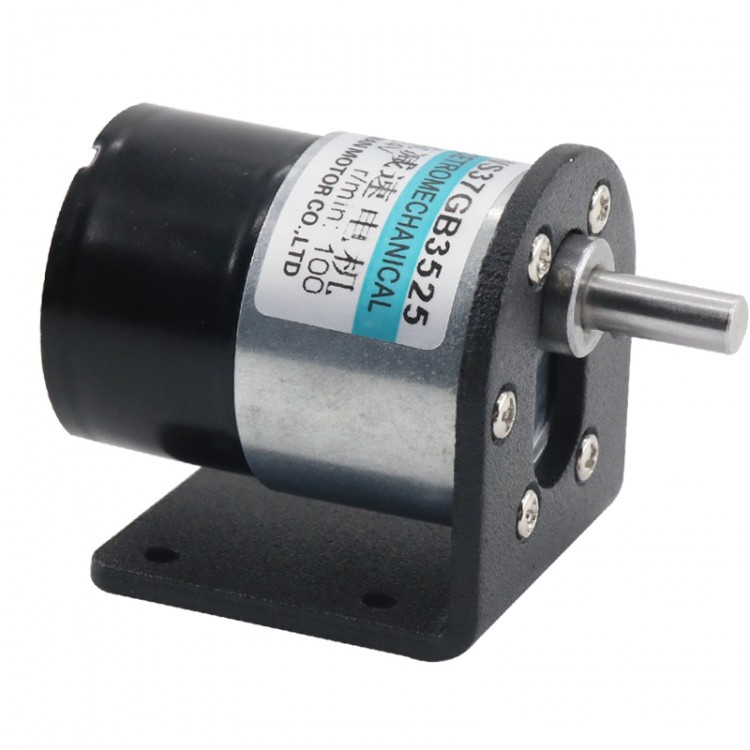

Brushless DC Gear Motor 12V 100RPM Low RPM DC Motor XD-WS37GB3525

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.37
  • Price in reward points: 224 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.92 $21.48 $20.80 $19.91 Contact US
Quantity:

Brushless DC Gear Motor 12V 100RPM Low RPM DC Motor XD-WS37GB3525

Parameters:

- Model: XD-WS37GB3525
- Voltage: DC 12V
- No-load Speed: 100r/min
- No-load Current: 0.16A
- Load Speed: 93r/min
- Load Current: 0.65A
- Rated Torque: 3kg.cm
- Stall Current: 2A
- Power: 7W
- Ratio: 50
- Gearbox Length: about 24mm
- Shaft Diameter: 6mm
- Adjustable Speed: Yes
- CW/CCW: Yes
- Weight: 160g

Features:
- Life span up to 30000hours
- Metal gear for stable and high torque
- Copper motor for longer service life
- Over-current protection: when the current is 2A, it will automatically cut off power
- Pulse width modulation: when the voltage is 0-5V, it will speed up
- Support CW CCW:
  Red Wire to +; Black wire to -; White wire not in use (CCW)

  Red wire to +;
  White and Black wires in parallel to - (CW)

  Blue wire: PWM wire to adjust speed, connected to 0-5V pulse width governor
 Yellow wire: FG signal wire outputs Hall signal, 1/6 cpr for basic pulse

Package Included:

- 1 x DC Gear Motor
