BRZHIFI NXC02 Dual ES9038PRO Headphone Amplifier Digital Hifi Bluetooth DAC Audio Decoder Silver

BRZHIFI NXC02 Dual ES9038PRO Headphone Amplifier Digital Hifi Bluetooth DAC Audio Decoder Silver

Features:
- New Structure and Fully Balanced Audio Decoder: ES9038PRO x 2. Professional decoding. One decoding chip on the left and right channels. The chips are fully independently powered and grounded for optimal performance
- Bluetooth 5.1 QCC5125 module: support for LDAC, AAC, SBC, and APTX. Support 24bit 96KHz HD audio transmission for LDAC

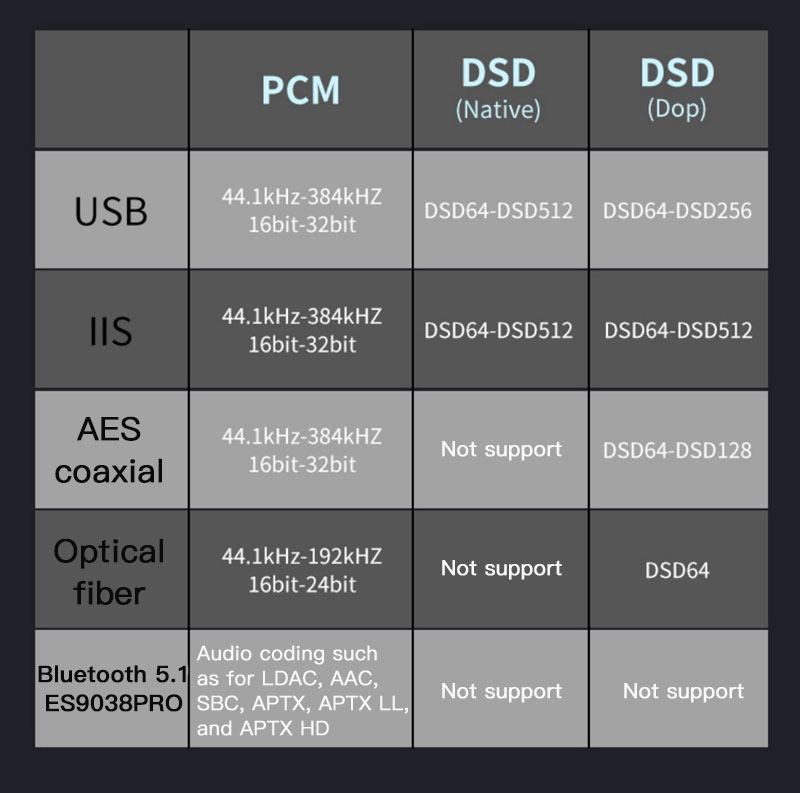

- Support DSD64, DSD128, DSD256 and DSD512; PCM 32bit 384k
- Referring to USB interface for Amanero: support DSD64-DSD512. Your perfect PC Hifi choice
- LED HD display
- TPA6120 headphone amp
- Fully balanced
- 1:1 professional component ratio
- A smoother viewing experience: By connecting the decoder to a TV to create a home theater, you can have a more immersive experience while watching movies and dramas
- IIS-HDMI signal input: PC-USB is suitable for operating systems such as for Windows, Linux, Android, and Apple. It can be connected through data cables of different interfaces. HDMI-IIS is suitable for digital interfaces or digital turntables with HDMI interface. It cannot be used for HDMI interfaces of computers, TVs, etc.
- Fine craftsmanship and professional voice
- Its effect is better than that for XMOS
- Analog LPF circuit: Fully discrete class A circuit specially tuned for ES9038PRO chips
- Imported transformer: audio dedicated transformer with independent voltage regulation, multi-stage filtering, and left and right separation
- Rigorous design, reasonable layout, fine workmanship, and premium materials
- Upgraded sound quality: New core decoding chips with a unique design structure allow us to explore a new listening experience
- Material upgrade: 4-layer immersion gold PCB circuit board, a new architecture scheme, imported audio special components, and strict manual re-inspection
- Function upgrade: high-definition large screen with five adjustable brightness; Fully in-line op amp is adopted

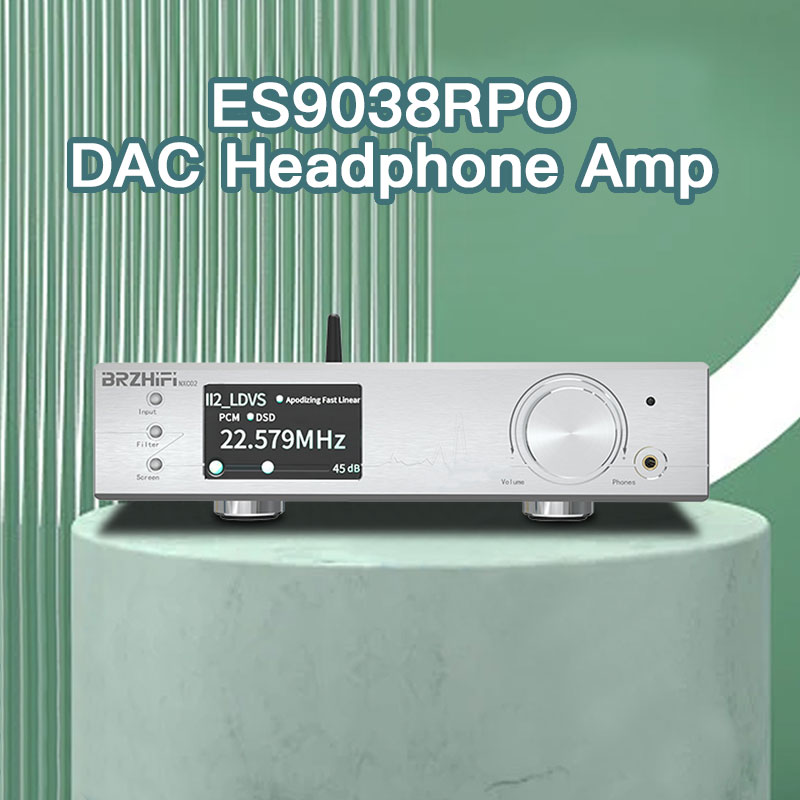

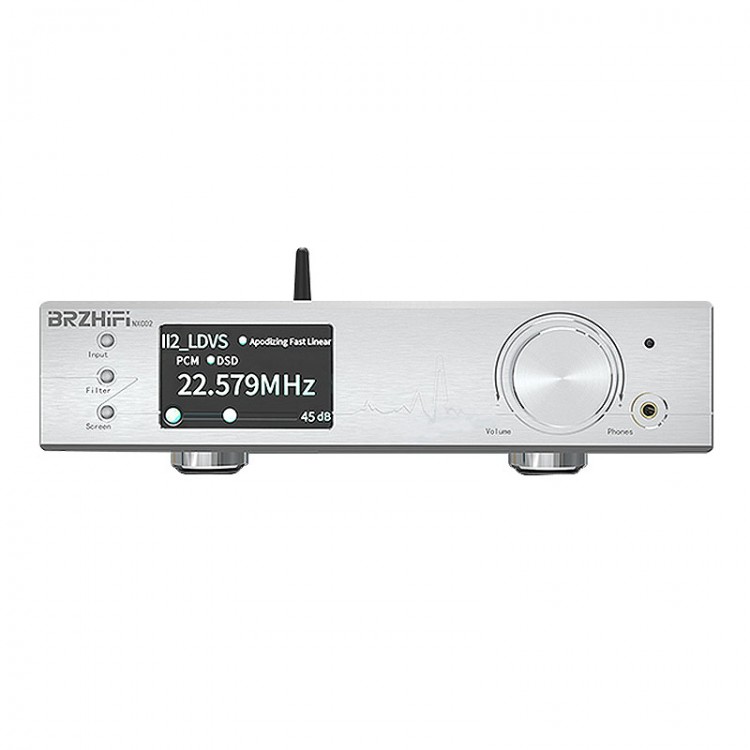

Front Panel:
Input: switch input modes
Filter: switch filter modes
Screen: Long press to turn it on/off; short press to adjust the brightness of screen
With an OLED display
Volume: Long press to adjust volume; short press to be mute
Phones: AUX 3.5MM headphone amp output port

Rear Panel:
XLR-R: balanced output of right channel
RCA-R/L: RCA single-end output
XLR-L: balanced output of left channel
AES: AES coaxial input
OPT: optical fiber input
USB: USB-PC input
IIS-LVDS: HDMI-IIS input
BLE: Bluetooth antenna port
COA: coaxial input
With a power switch and a socket

Specifications:
- Model: NXC02
- Solution: dual ES9038PRO decoding chip
- Frequency response: 20Hz-20kHz+/-0.08dB
- Line input: RCA output level single-ended 2.5Vrms at 0dBFS; Balanced 5.1Vrms at 0dBFS
- International voltage: AC100V-240V (manual adjustment)
- XLR interface definition: European/Japanese standard (1: ground, 2: - pole, and 3: + pole)
- Product size: 240 x 195 x 55mm/9.4 x 7.7 x 2.2" (excluding protruding size)
- Net weight: 2.18kg/4.8lb

Package Included:
- 1 x Headphone Amp DAC
- 1 x USB Cable
- 1 x Bluetooth Antenna

Note:
- Remote control is not included.
