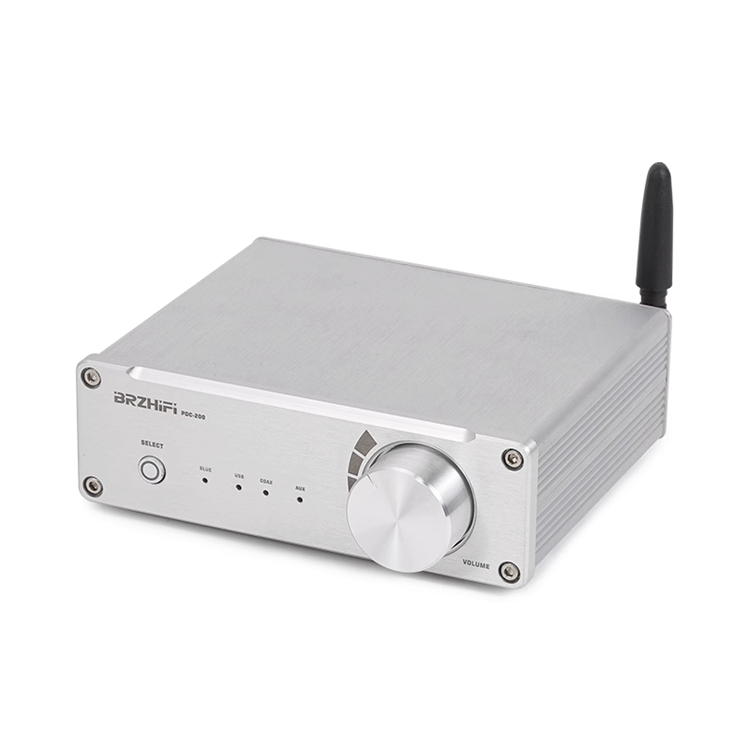

BRZHIFI PDC-200 2x130W Power Amp Digital Power Amplifier Bluetooth Amplifier PDC200 for PC Cellphone

BRZHIFI PDC-200 2x130W Power Amp Digital Power Amplifier Bluetooth Amplifier PDC200 for PC Cellphone

Features:
- HIFI amplifier with ultra-low distortion: The digital amplifier has low distortion, low noise, and large dynamic range. In terms of transparency and resolution of sound quality, its low-frequency sound is shocking and excellent. It consumes very little power and generates less heat. It is small and saves space. At present, it is becoming the mainstream of modern power amplifiers for home use, and can also be used as a car power amplifier. The harmonic distortion of digital amplifiers is as low as 0.005%.
- TPA3250 amplifier chip: TPA3250 is a high-performance class D power amplifier chip. It has a circuit with class D efficiency and is capable of delivering truly high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate actuator error correction (for PurePath Ultra HD). This technology allows the device to maintain ultra-low distortion and sound quality over the entire audio frequency band. Compared with the sound effects of ordinary amplifiers, it can retain more sound details, as if you were on the spot.
- Bluetooth 5.1 connection: With built-in Bluetooth receiver chip, it supports a variety of Bluetooth transmission protocols. It supports for APTX-HD/APTX HD decoding technology, SBC, AAC, APTX-ADAPTIVE and LDAC. It accurately reproduces the full audio high transmission rate, transparent detail restoration, and improves HIFI sound quality!
- QCC5125 HD lossless Bluetooth 5.1 module. It supports seamless connection for Android and Apple phones in order to enjoy lossless music. Bluetooth transmission distance is over 10m/32.8ft. It supports for APTX-HD, LDAC HD transmission protocol and APTX-LL low latency technology. It supports for aptX HD 48khz and LDAC 96khz HD audio transmission.
- 130W+130W high power.

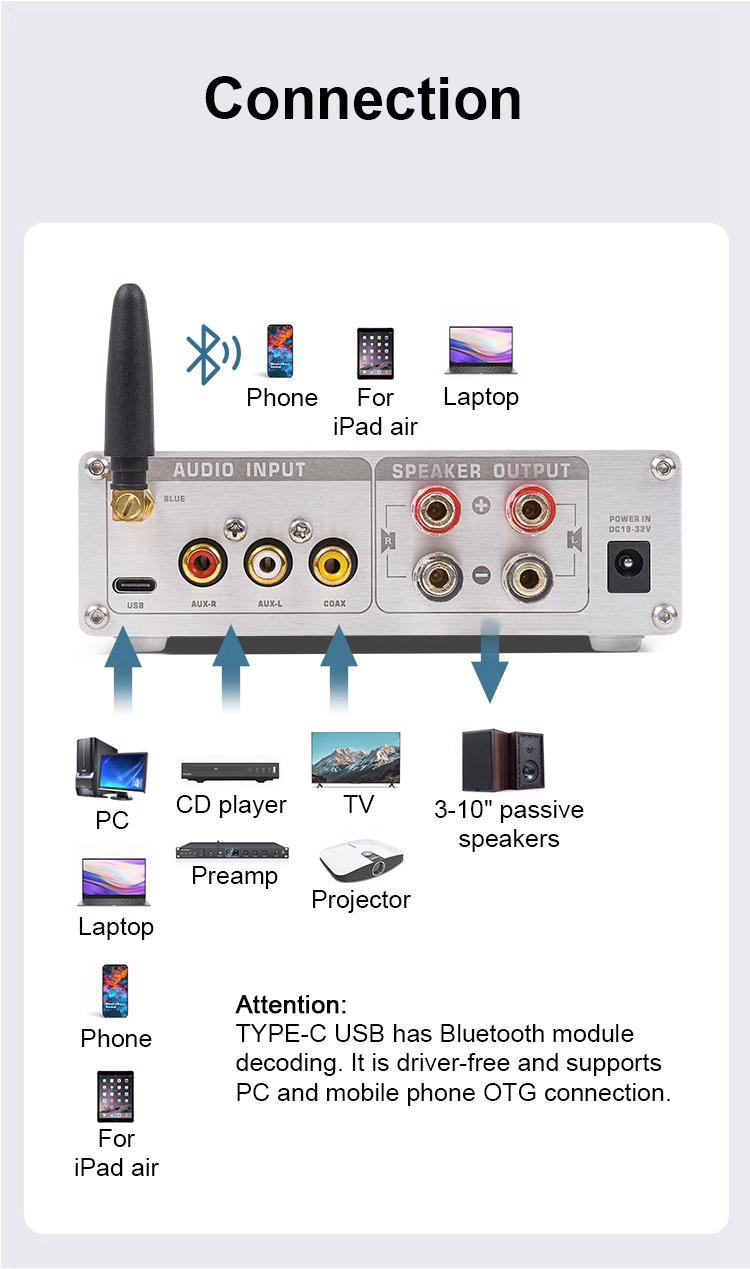

- It supports coaxial, Bluetooth, computer USB sound card and analog input.
- TYPE-C input port can be connected to your mobile phone and computer.
- It adopts PCM5102A independent Bluetooth decoding chip, enabling lossless output.
- 10A super large volume ultra-large current shielded sealed output inductors and the loss is very low. Thus, its low-frequency sound is very full, and the penetration of high-frequency sound is very good.
- NE5532 op amps provide easy control of treble and bass for excellent sound.
- High-speed filter capacitor array has large capacity and higher specific power, which can instantly discharge large current, with short charging time, high charging efficiency and long cycle life.
- Aviation-grade material and internal structure layout: Using aviation aluminum shell and anodizing process, it is lightweight and scratch-resistant, wear-resistant, and it is not easy to fade. The powerful circuit module design makes the sound quality excellent in detail and emotion, allowing people to enjoy music.

Specifications:
- Model number: PDC-200 (PDC200)
- Power amplifier chip: TPA3250
- Bluetooth chip: QCC5125
- Supported protocols: For SBC/AAC/APTX/APTX-HD/APTX Adaptive/LDAC
- Signal input: AUX/COAX/BT/TYPE-C USB
- Power output: 2*130W 4Ω; 2*70W 8Ω
- Bluetooth/coaxial/TYPE-C USB input: support 44.1~96khz (16~24bit)
- Frequency response range: 18Hz~25kHz
- Distortion: 0.005%
- Signal-to-noise ratio: 110dB
- Input voltage: DC19-32V DC5.5*2.5 interface
- Recommended matching: 3-10" passive speakers with fixed resistance

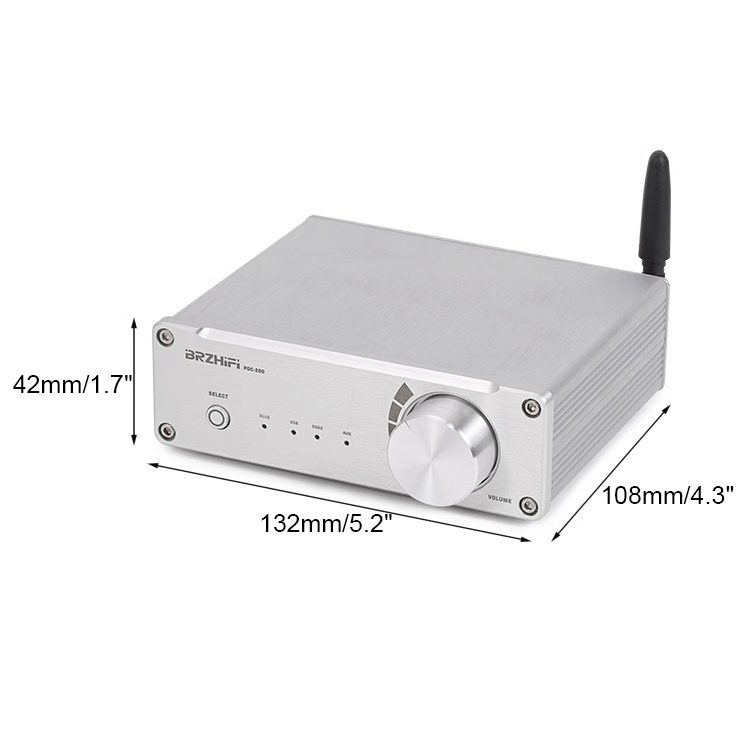

- Product Size: 132 x 108 x 42mm/5.2 x 4.3 x 1.7" (LxWxH)
- Weight: 0.46kg/1lb
- Warranty: 2 years

Package Included:
- 1 x Amplifier main unit
- 1 x 3.5mm to dual RCA signal cable
- 1 x User manual/warranty card/product quality certificate
- 1 x Bluetooth antenna

Note:
- Power supply is not included in the package. A DC power supply needs to be purchased. You can use the power supply of your laptop or a switching power supply, and the power supply voltage is DC19V-32V.
