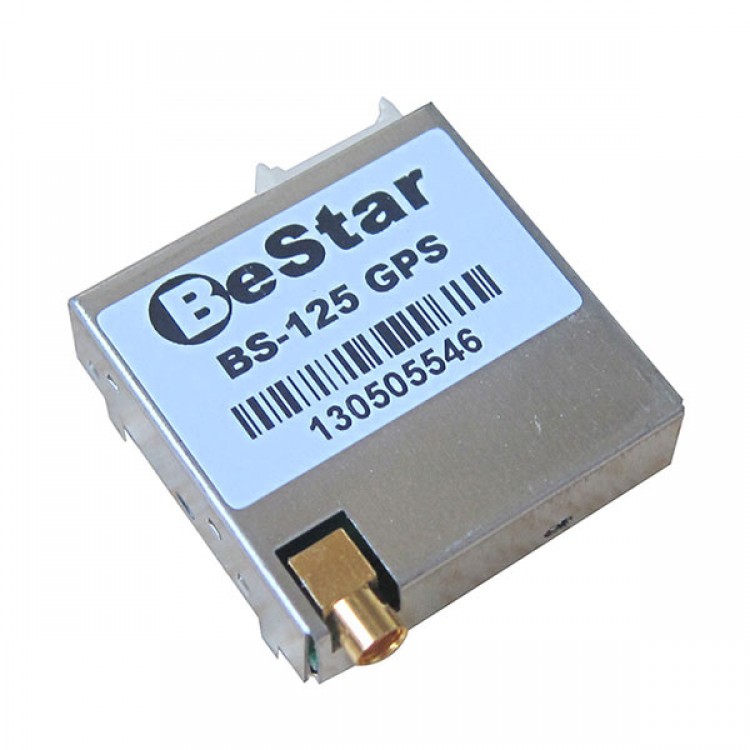

BS-125 GPS Module Group Ublox Chip Internal Core High Precision High Sensitivity
Pins definition:
- VCC
-TX
- RX
- BOOT
- GND
- 1PPS
Parameters:
- Size: 25.4*25.4*7mm
- Channel: 50 channel GPS L1 C/A code
- Frequency: L1, 1575.42MHz
- Support SBAS:WAAS,EGNOS,MSAS
- Max updating speed rate: 5Hz
- Precision: positioning: 2.5M, SBAS: 2M
- Cold start: 27s
- Warm start: 3s
- Hot start: 1s
- Acquisition sensitivity: 147dbm
- Tracking sensitivity: -162dbm
- Speed limitation: 500m/s
- Height limitation: 50000m
- Power supply: 3.6---6V
- Back up battery: 1.4V-3.6V
- Consumption: 117mW(3.0V) continous mode
- Antenna type: active or passive
- Weight: 1.6G
- Working temp: -4---85degree
- Storage temp: -40----85degree
- Satisfying ROHS
- Interface: UART
- Time impulse: 0.25Hz-1khz
- Agreement: NMEA-193 data agreement
