CAN Analyzer CANOpen J1939 DeviceNet USBCAN-2 USB to CAN Compatible with ZLG Support Windows Linux

CAN Analyzer CANOpen J1939 DeviceNet USBCAN-2 USB to CAN Compatible with ZLG Support Windows Linux


Description:

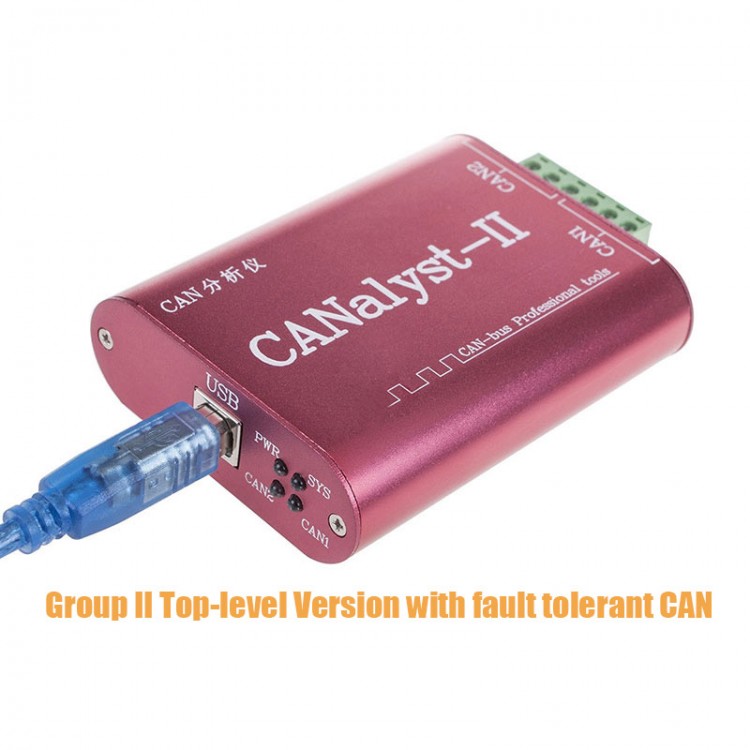

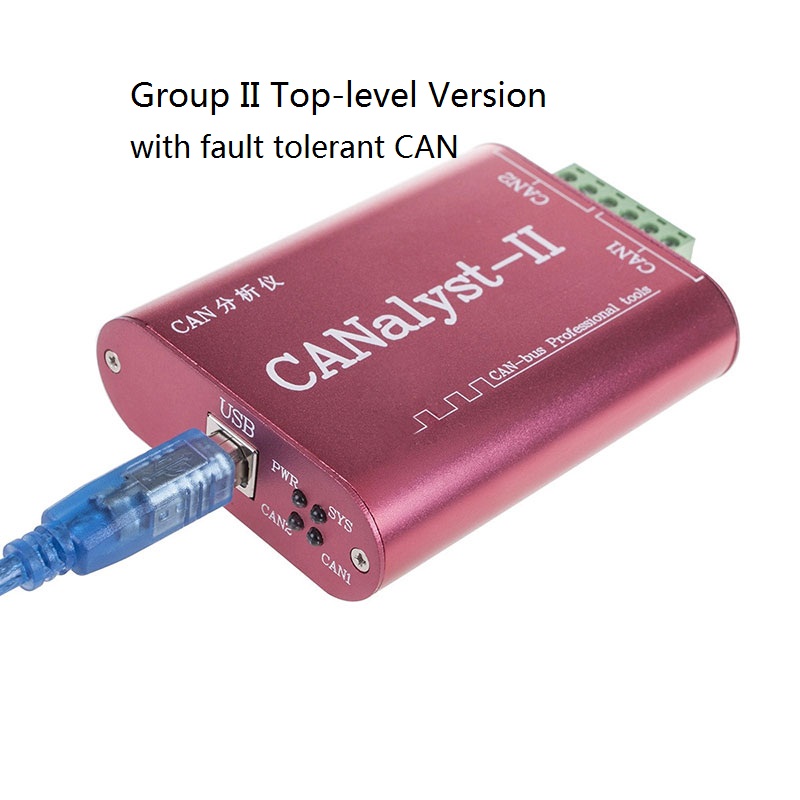

- Group II Top-level Version with fault tolerant CA
- Support Windows + Linux system
- Support X86, ARM platform
- Support Ubuntu versions, Raspberry pi,VMware virtual machine
- Provide 32bit, 64bit Development Library
- Support remote software, firmware online upgrading
- USB drive integrated into the development labrary
- The files in the same labrary, suitable for any kernel version
- Provide Linux secondary development samples
- Windows and Linux using the same Library function, fully transplant when the second development
- Software language supports Chinese and English
- Support CANopen, SAE J1939,DeviceNET,iCAN,etc.
- Support offline smart relay function
- Support automatic baud rate detection, relay and transparent transmission function
- Support  ZLG ZOPC_Server OPC software
- Support bus load rate / utilization / traffic
- Metal shell
- USB/ CAN1/ CAN2, fully isolated
- Built in GDT, TVS and other protections
- 2.0mm, PCB
- Built in EPCOS TDK Common mode choke
- 2* 120Ohm resistance for each channel
- Up to 8500frame/s for two channels at the same time

Specification:
- 32BIT 80M processoe, 512K flash, 128K SRAM
- Online program technology (Write FLSAH online), and can store CAN information and status
- 10K-1M ,arbitrary configuration
- 10K-1M ,arbitrary detection
- Support win10/win8/win7/xp (64bit/32bit), Linux,  USB1.1/USB2.0/USB3.0 and tablet OTG; win10 64bit+USB3.0 will be great

Performance and technical indicators：
- Protocol conversion between USB CAN and l bus;
- CANalyat-II  analyzer , with 2 CAN interface;
- USB interface supports USB2.0, compatible with USB1.1;
- Supports CAN2.0A and CAN2.0B protocols, supports standard frame and extended frame;
- Supports two-way transmission, CAN transmission, CAN receiving;
- Supports data frame, remote frame format;
- SCAN controller baud rate between 10Kbps-1Mbps, optional, software configuration;
- SCANalyst-II analyzer: the CAN bus interface with high speed magnetic coupling, isolated DC-DC power; the three ends of the complete isolation (isolation between USB bus and CAN bus ;isolation between CAN1 and CAN2)
- Maximum flow: two CAN channels (at the same time running) respectively, to receive 8500 frame /s, send 8500 frame /s; (two channels at the same time to receive 8500 frame /s, USB speed of up to 17000 frame /s speed, not lost frame)
- CAN send buffer capacity for each frame (channel 1000 failed to send automatic retransmission), CAN buffer capacity is 2000 frames per channel;
- USB  bus for directly power supply, no need to external power supply;
- CANalyst-II  analyzer, isolation module insulation voltage: 2500V;
- Operating temperature: -40 ~ 85 deg C ;
- Shell size: 92*45*24.5mm.
- Compatibility: library compatible with  ZLG ZLG-USBCAN interface adapter

Typical applications
- PC or laptop's USB interface to send and receive CAN bus network
- CAN network data collection, data analysis;
-  CAN bus - USB gateway;
- USB interface to CAN network interface;
- Extend CAN bus network communication length;
- Industrial field CAN network data monitoring;
- Debugging and testing of CAN-bus  network;
- CAN2.0A/2.0B  packet analysis;
- ICAN  protocol analysis;
- DeviceNet protocol analysis;
- CANopen protocol analysis;
- SAE J1939 protocol analysis

Features:
- Suitable for CANopen, SAE J1939 , DeviceNET, iCAN,etc. protocal analysis And supports User customized protocal analysis
- Support CANalyst-II analyzer CANpro protocal V1.50
- Support CAN relay function ,achieve the data in the same or different baud rate real-time high-speed switching of 2 channels CAN
- Under relay, real time monitoring CAN1/2 data switching through PC, ans send the bus data.
- Suitable for Windows XP, Windows 7/8; support CAN2.0A/2.0B
- Can display the CAN frame or protocol message in two ways, the historical record and the latest record
- Support iCAN, DeviceNet, CANopen, J1939 SAE and other CAN-bus network based on the analysis of the high-level protocol
- User can customize the high level protocol based on CAN-bus network
- Can send protocol frame, simulation operation
- With trigger function
- With a filtering display function, can not display the specified protocol frame
- Can save the data to the file, but also can be stored in real time
- Data files can be imported, to facilitate the view previously saved to the file data
- Can work in listening mode (i.e. not sending a ACK bit or error frame, and therefore does not interfere with the CAN-bus system)
- Can be set according to the number of columns in the list of data classification
- Can use the CAN protocol to send ordinary files or CAN frame data files, can also be set to trigger the transmission of ordinary files or CAN frame data files
- Can use the CANPro script to define a high level protocol based on CAN-bus
- With CANPro script to set the filter display, the custom protocol frame color, receive trigger and other functions
- Can send CAN frames using the CANPro script

Package list:
- 1 x CAN Analyzer
