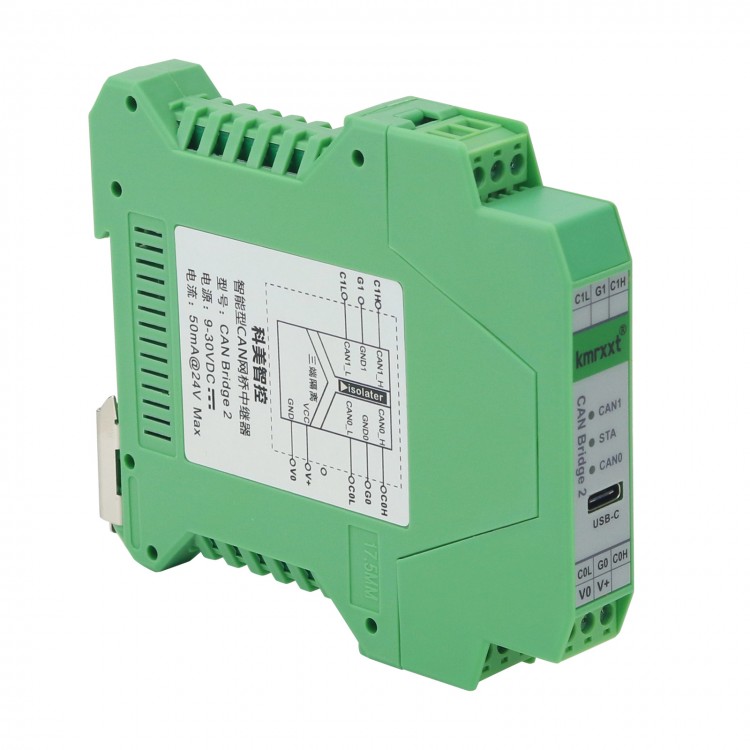

CAN Bridge 2 Industrial CAN Bus Repeater CAN Bus Bridge 1500V Isolation with 1 Input 1 Output

CAN Bridge 2 Industrial CAN Bus Repeater CAN Bus Bridge 1500V Isolation with 1 Input 1 Output

Description:

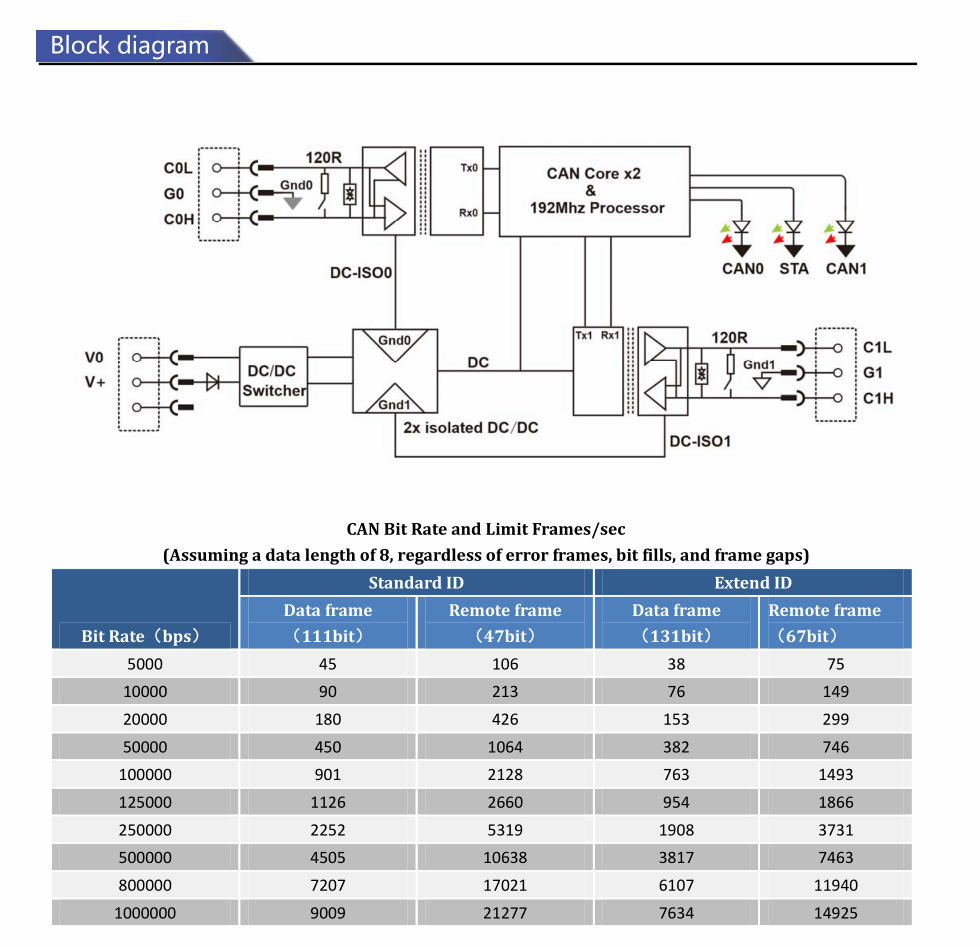

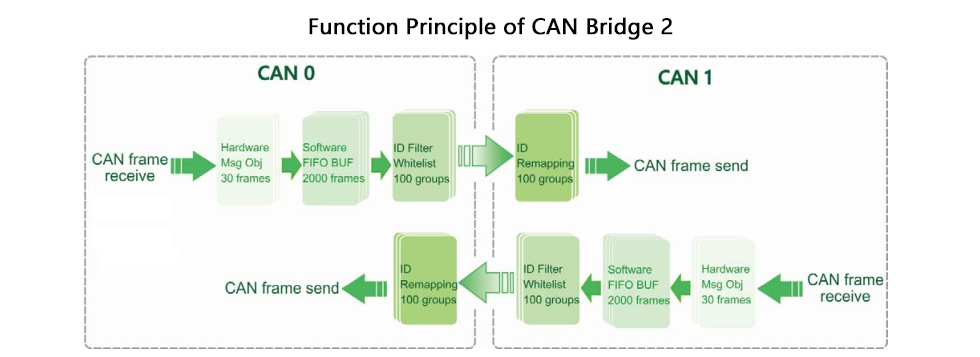

CAN Bridge 2 is a cost-effective industrial class CAN bus bridge repeater, which has 2 independent electrically isolated CAN bus interfaces, realizes the relay function of the CAN bus, and can store and forward data between CAN networks of different bit rate. It is widely used in automotive electronics, industrial automatic control, security systems, intelligent instruments and other occasions. Connect PC through USB type-c interface, and you can easily configure the communication baud rate, ID filtering and ID remapping of each channel.

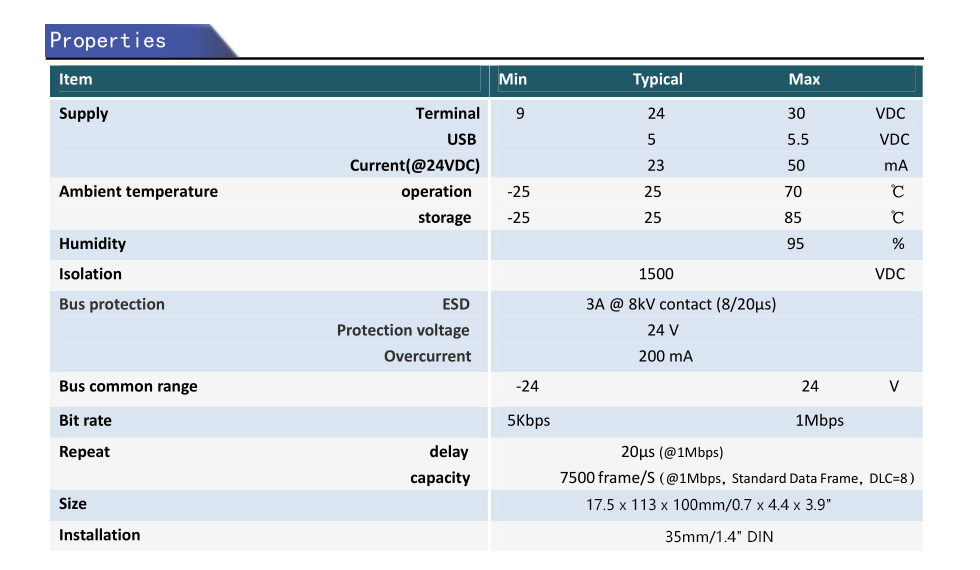

Features:
* 2 CAN ports
* Easy to use USB Type-C configuration interface
* CAN2.0A/B standard, 5K-1Mbps bit rate configurable setting
* Friendly configuration software, providing rich diagnostic information
* Support 100 groups of ID filtering and ID remapping setting
* 110 nodes bus load capacity, compatible with 24V CAN system
* High-quality 3-way/4-way isolation with enhanced ESD protection
* 20μs forwarding delay, 2x2000 frame FIFO buffer
* 9-30VDC wide voltage power supply, status LED indication
* Thin modular design, removable terminals, standard 35mm DIN rail installation

Typical Applications:
1. Isolation protection, interference suppression, bus fault analysis and diagnosis;

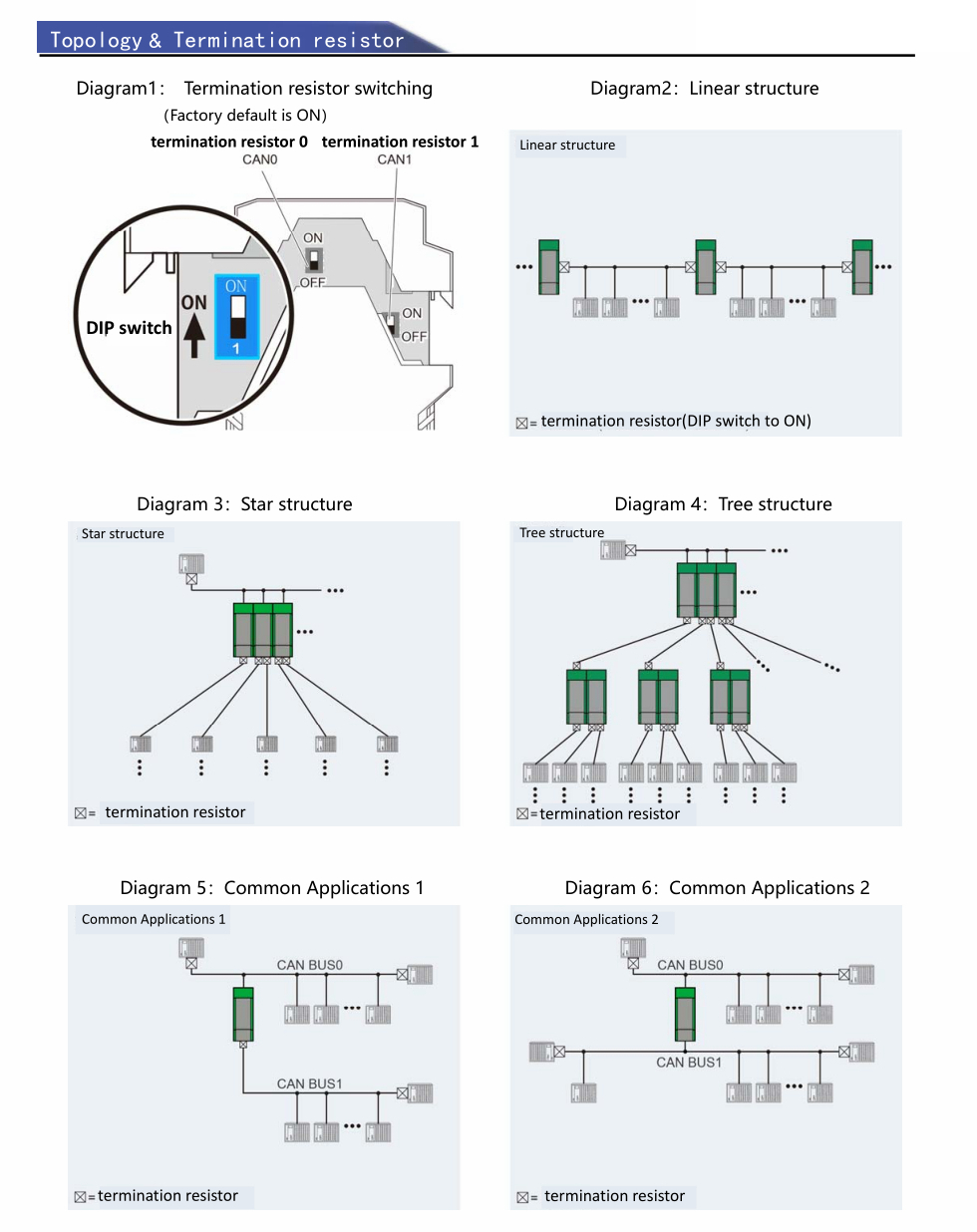

2. Repeater, network expansion, and change of network topology;
3. Realize CAN network interconnection with different bit rate;
4. Support ID filtering to selectively forward data and control network segment load;
5. Support ID remapping to reassign ID and distinguish devices.

Package Included:
* 1 x CAN Bus Bridge

Packaging Details:
* G.W.: 0.25kg
