CAN Recorder CAN Bus Data Recorder Offline Recording Broadcasting Offline Playback Relay For SD Card

CAN Recorder CAN Bus Data Recorder Offline Recording Broadcasting Offline Playback Relay For SD Card

Power Supply:
1. Battery power supply: Built-in 2500mAh battery, can run for 15 hours without connecting to a power supply.
2. USB power supply: 5V power supply via USB cable, which can be connected to mobile phone charger/computer.
3. DC power supply: 9V-35V power supply, 0.5A.

Main Functions:

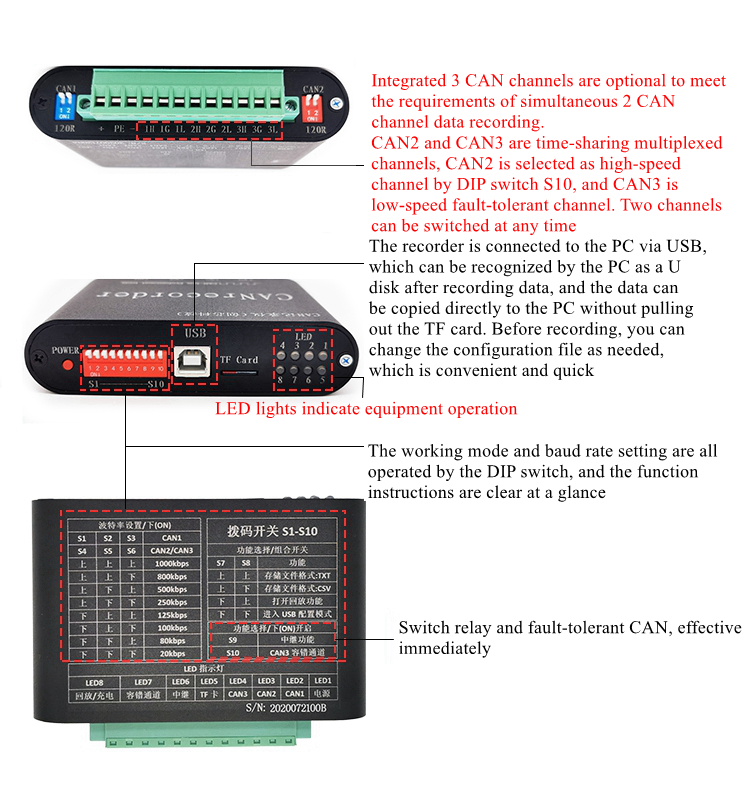

1. Offline recording and broadcasting: no need to connect to a computer, and directly supply power to record all the data of CAN bus.
2. TF card storage: for 32G class 10 high-speed TF card, can store 350 million frames of CAN data.
3. TF card storage capacity limitation: unlimited, optional. The measured 512G can store 5.6 billion frames of CAN data.
4. Offline playback: Saved data can be directly sent back to CAN bus as it is, similar to analog equipment sending signals.
5. Offline relay: Intelligent relay between CAN1 and CAN2, direct forwarding, or rewrite forwarding.
6. All types of CAN lines: support high-speed/low-speed/fault-tolerant/single-wire CAN/comfort/entertainment CAN lines.
7. Built-in clock: It can save the received Beijing time for each frame of data.
8. Data storage format: txt, csv, asc, CAN.

Interfaces:

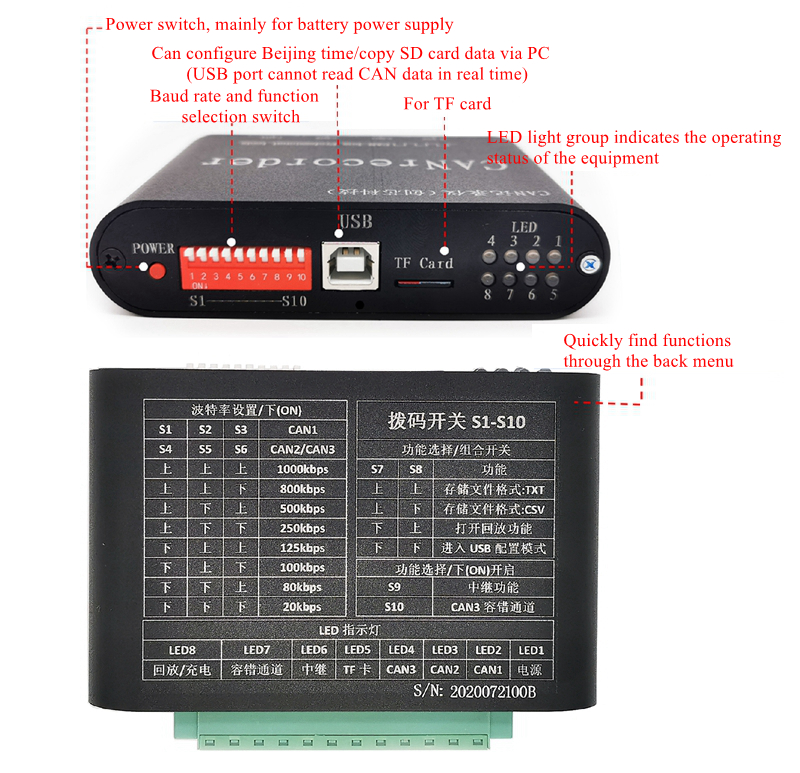

1. POWER: Power switch, mainly for battery power supply.
2. S1-S10: Baud rate and function selection switch.
3. USB: Beijing time can be configured through PC/copy TF card data (USB port cannot read CAN data in real time).
4. TF Card: for TF card (not included).
5. LED1-8: LED indicator lights.
6. +PE-: Switching power supply input.

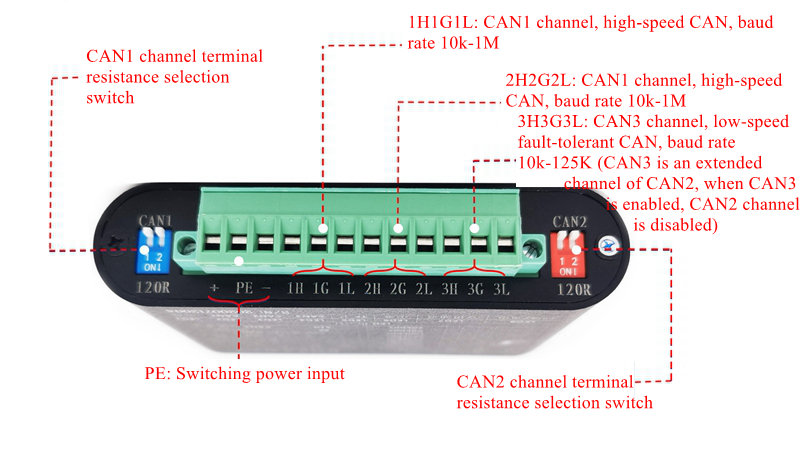

7. 1H/1G/1L: CAN1 channel, high-speed CAN, baud rate 10k-1M.
8. 2H/2G/2L: CAN2 channel, high-speed CAN, baud rate 10k-1M.
9. 3H/3G/3L: CAN3 channel, low-speed fault-tolerant CAN, baud rate 10k-125K (note: CAN3 channel is an extended channel of CAN2 channel, when CAN3 channel is enabled, CAN2 channel is not available).
10. CAN1 120R: CAN1 channel terminal resistance selection switch.
11. CAN2 120R: CAN2 channel terminal resistance selection switch.

Features:
① A 32-bit industrial-grade core processor with a clock speed of up to 180MHz, with 512KB Flash and 256KB SRAM.
② A rechargeable battery can continuously record 8+ hours of work for a long time. At the same time, it supports energy-saving settings. When the battery is powered, the working time can be set as needed, and it will automatically shut down when the set time is reached to achieve energy saving.
③ With USB interface, it can be operated by PC.
④ CAN bus baud rate supports DIP switch configuration between 20Kbps~1000Kbps, which is simple and easy. Automatic detection can also be configured without setting.
⑤ The frame rate of dual-channel simultaneous recording can support 10000+fps, and the frame rate of single-channel can support 20000+fps.
⑥ Unconditional relay can reach 9000+fps.
⑦ Support to obtain automobile VIN code, which is convenient for collecting automobile CAN data.
⑧ Support offline playback of data, true recovery of recorded situations.
⑨ The configuration file is automatically saved to the internal storage. When the configuration file in a TF card is detected to be damaged or non-existent, it can be automatically reversed when it is turned on. It can also work when a new TF card is replaced.
⑩ The new firmware can be upgraded by putting it into a TF card, which is simple and efficient.

More Details:
- The recorded data can be saved as TXT or CSV file. The recording style is clear and concise, you can get the required information at a glance, and analyze the data immediately after you get the recording file
- According to the needs of users, set the size and number of each stored file in the configuration file
- In addition to the basic recording function, this product also provides an editable relay mode. For example, when the channel CAN1 receives a standard frame/extended frame of a specific ID/specific data, it forwards a standard frame/extended frame of another ID/data to the channel CAN2. Users can configure required functions according to actual needs
- This product can provide a playback function, and the record file retains the time stamp information (accurate to ms) of each frame of data received to truly restore the recorded scene, providing strong support for data analysis
- This product provides convenient program upgrade function. Put the upgrade firmware into a TF card, and the device can automatically detect the firmware file and complete the upgrade after turning on the device. The upgrade file is automatically deleted after the upgrade is completed, and the upgrade result is displayed in text

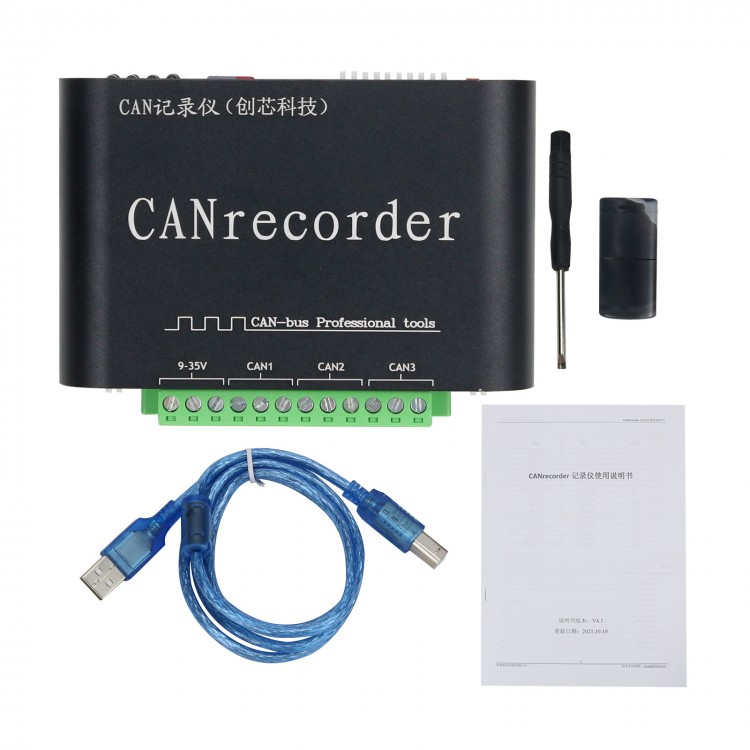

Package Included:
- 1 x CAN Recorder

Note:
- TF card pictured is not included, for demonstration purposes only. Thank you for your understanding!
