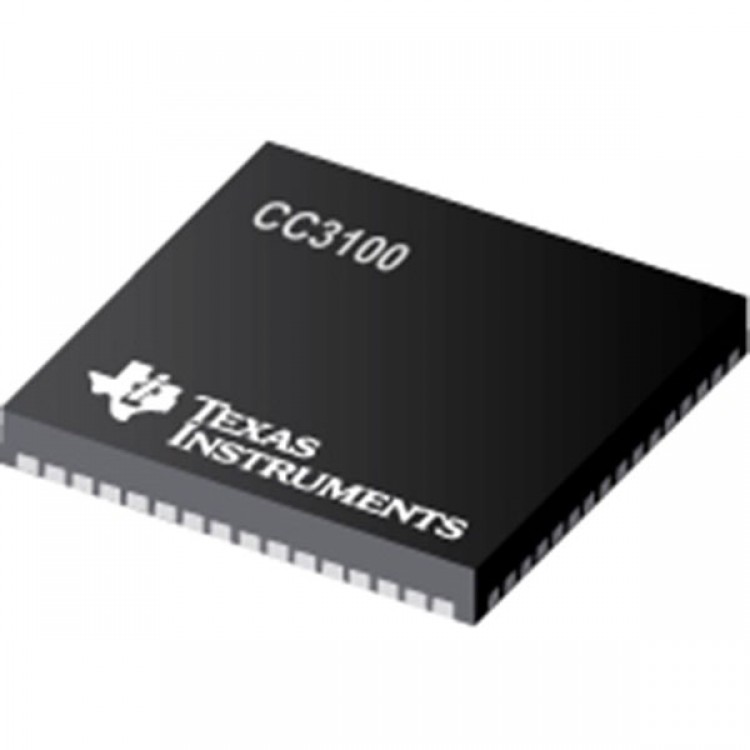

CC3100R11MRGCR CC3100 SimpleLink™ Wi-Fi Module Chip

CC3100R11MRGCR CC3100 SimpleLink™ Wi-Fi Module Chip

Description
- Connect any low-cost, low-power microcontroller (MCU) to the Internet of Things (IoT). The CC3100 wireless networking solution is part of the new SimpleLink Wi-Fi family that dramatically simplifies the implementation of Internet connectivity. The CC3100 device integrates all protocols for Wi-Fi and Internet, which greatly minimizes host MCU software requirements. With built-in security protocols, the CC3100 solution provides a robust and simple security experience. Additionally, the CC3100 device is a complete platform solution including various tools and software, sample applications, user and programming guides, reference designs and the TI E2E™ support community. The CC3100 device is available in an easy-to-layout QFN package.
- The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a-Chip and contains an additional dedicated ARM MCU that completely offloads the host MCU. This subsystem includes an 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3100 device supports Station, Access Point, and Wi-Fi Direct modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols.
- The power-management subsystem includes integrated DC-DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiringabout 4 μA of current.
- The CC3100 device can connect to any 8, 16, or 32-bit MCU over the SPI or UART Interface. The device driver minimizes the host memory footprint requirements requiring less than 7KB of code memory and 700 B of RAM memory for a TCP client application.

Features
- CC3100 SimpleLink Wi-Fi Consists of Wi-Fi Network Processor and
- Power-Management Subsystems
- Wi-Fi Network Processor Subsystem
- Featuring Wi-Fi Internet-On-a-Chip
- Dedicated ARM MCU
- Completely Offloads Wi-Fi and Internet Protocols from the External
- Microcontroller
- Wi-Fi Driver and Multiple Internet Protocols in ROM
- 802.11 b/g/n Radio, Baseband, and Medium Access Control (MAC),
- Wi-Fi Driver, and Supplicant
- TCP/IP Stack
- Industry-Standard BSD Socket Application Programming Interfaces (APIs)
- 8 Simultaneous TCP or UDP Sockets
- 2 Simultaneous TLS and SSL Sockets
- Powerful Crypto Engine for Fast, Secure Wi-Fi and Internet Connections
- with 256-Bit AES Encryption for TLS and SSL Connections
- Station, AP, and Wi-Fi Direct™ Modes
- WPA2 Personal and Enterprise Security
- SimpleLink Connection Manager for Autonomous and Fast Wi-Fi Connections
- SmartConfig™ Technology, AP Mode, and WPS2 for Easy and Flexible Wi-Fi
- Provisioning
- TX Power
- 18.0 dBm @ 1 DSSS
- 14.5 dBm @ 54 OFDM
- RX Sensitivity
–95.7 dBm @ 1 DSSS
–74.0 dBm @ 54 OFDM
- Application Throughput
- UDP: 16 Mbps
- TCP: 12 Mbps

Host Interface
- Interfaces with 8-, 16-, and 32-Bit MCU or ASICs Over SPI or
- UART Interface
- Low External Host Driver Footprint: Less Than 7KB of Code Memory and
- 700 B of RAM Memory Required for TCP Client Application
- Power-Management Subsystem
- Integrated DC-DC Supports a Wide Range of Supply Voltage:
- VBAT Wide-Voltage Mode: 2.1 to 3.6 V
- Preregulated 1.85-V Mode

Advanced Low-Power Modes
- Hibernate with RTC: 4 μA
- Low-Power Deep Sleep (LPDS): 115 μA
- RX Traffic (MCU Active): 53 mA @ 54 OFDM
- TX Traffic (MCU Active): 223 mA @ 54 OFDM, Maximum Power
- Idle Connected: 690 μA
