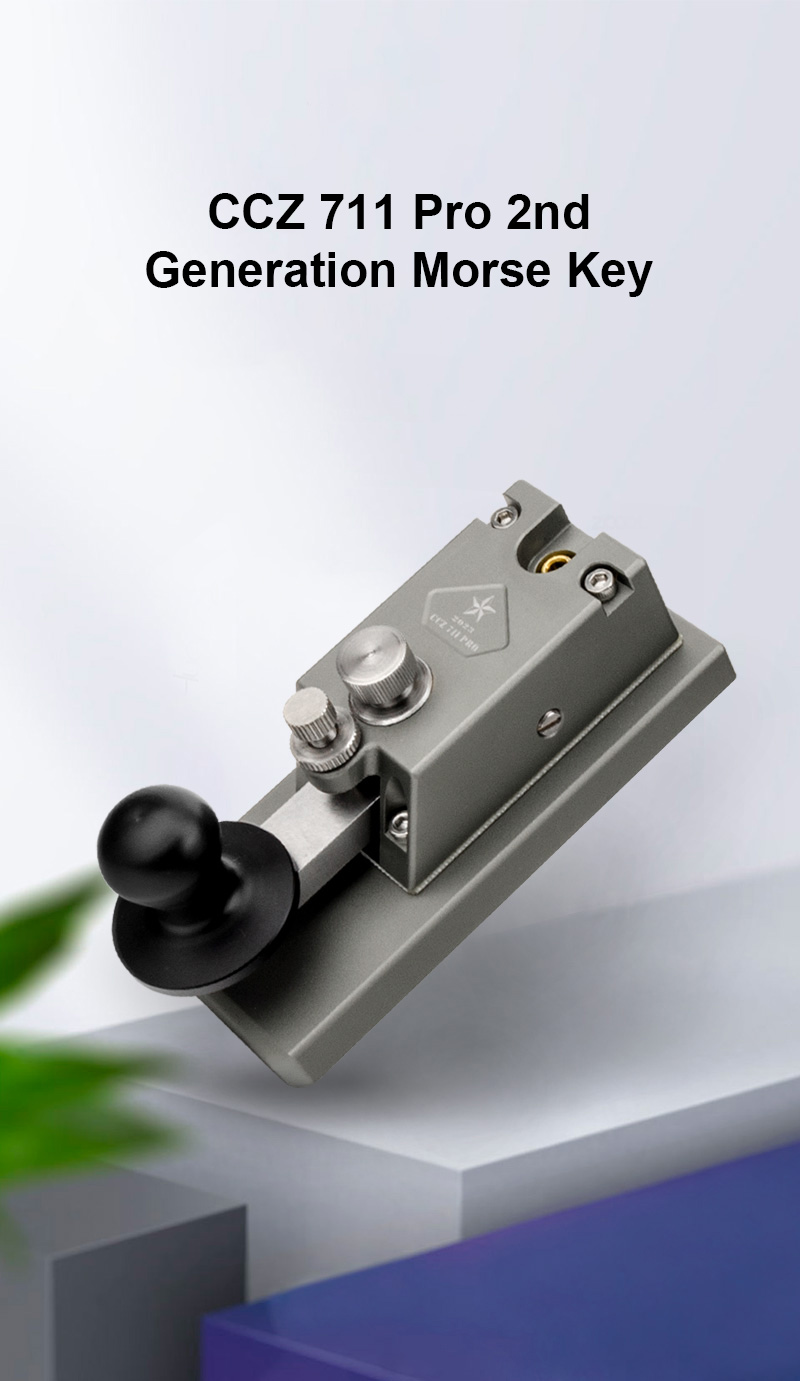

CCZ 711 Pro 2nd Generation Morse Key CW Key with Magnetic Force Feedback + HAMCUBE Mini CW Trainer

CCZ 711 Pro 2nd Generation Morse Key CW Key with Magnetic Force Feedback + HAMCUBE Mini CW Trainer

Features of CCZ 711 Pro CW Key:
CCZ 711 Pro Morse Key with Magnetic Feedback
* Magnetic straight key
* Compact and refined
* Anodized surface finish
* 3.5mm connector

Magnetic Torque Adjustment with a Single Strong Magnet
* By rotating the magnetic knob just half a turn, you'll feel a noticeable change in torque. This is made possible by a new micro-adjustment magnetic technology using a narrow gap.

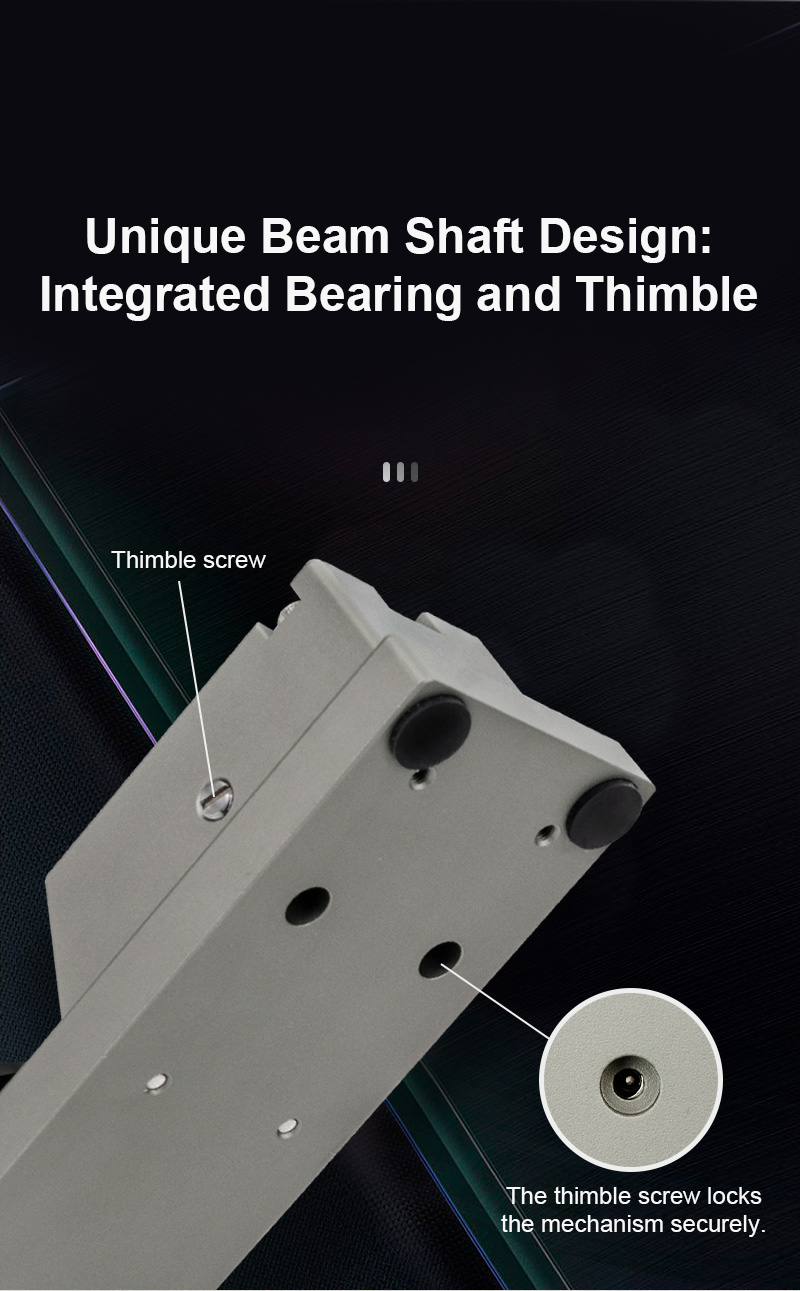

Unique Beam Shaft Design: Integrated Bearing and Thimble
* The countersunk bearing on the beam shaft pairs with the housing thimble, ensuring smooth bearing rotation and secure thimble positioning.
* Designed for rugged portability in field use, this keyer prioritizes compactness over traditional thimble reliability. Since the thimble aligns precisely with the bearing's inner bore and slides freely within it, this design prevents corrosion-induced seizing and failure.

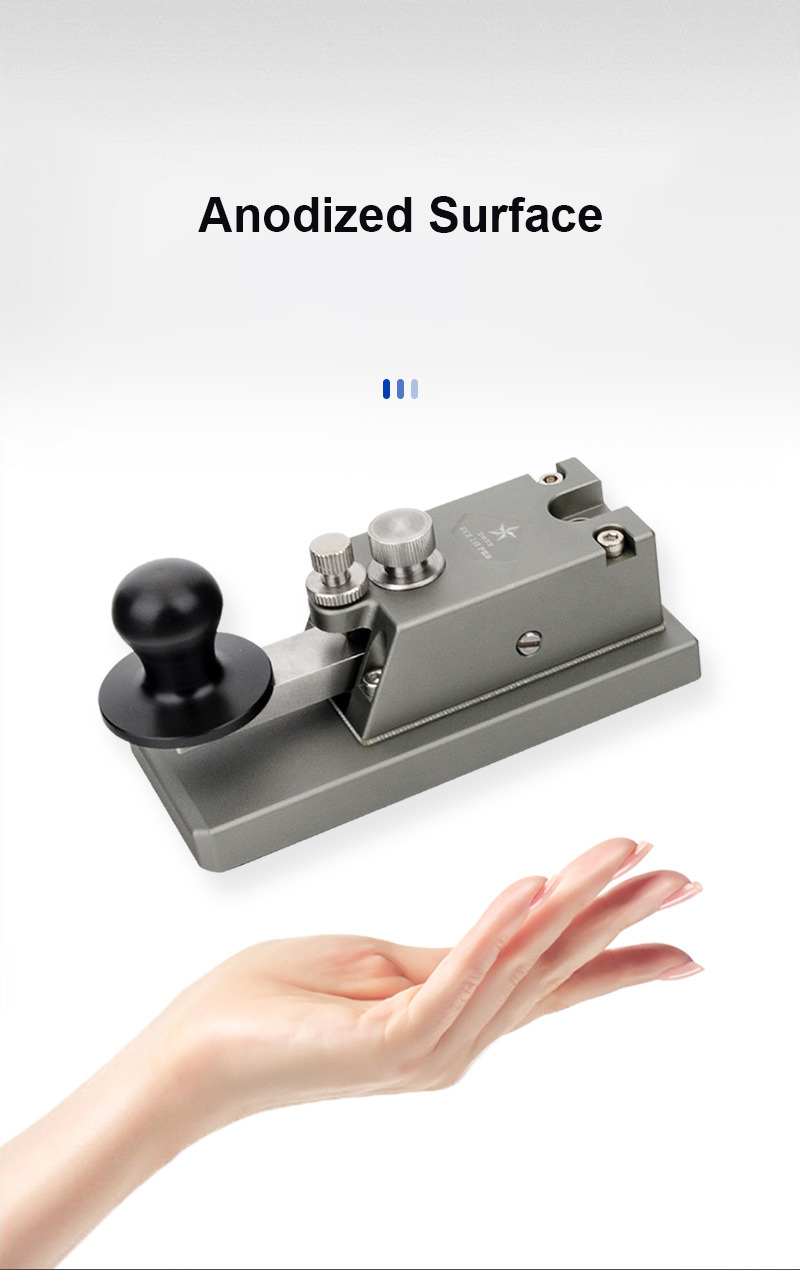

Anodized Surface
* The key top cover and base are CNC-machined from 6061 aluminum alloy. The body has a gunmetal gray finish with anodized surface treatment.

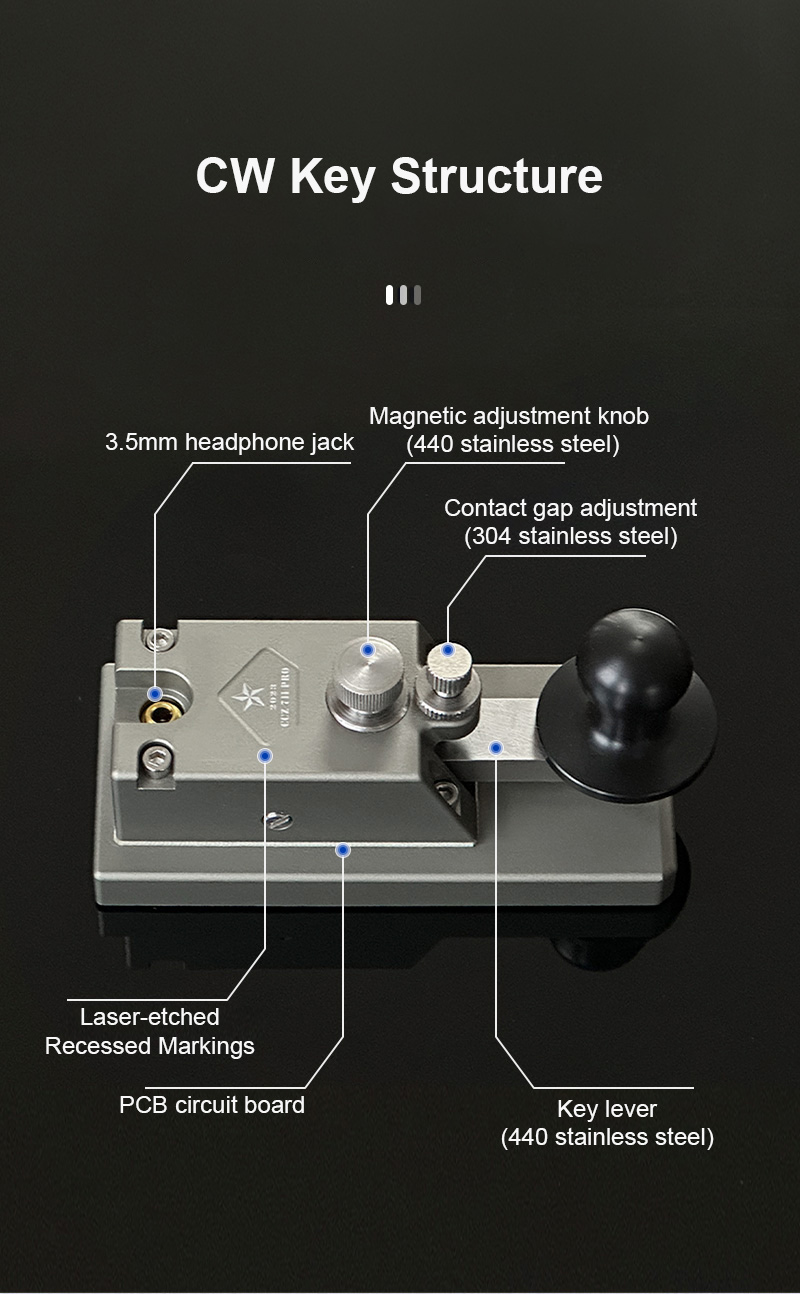

Upgraded with PCB Between Top Cover and Base
* 3.5mm headphone jack
* Magnetic adjustment knob (440 stainless steel)
* Contact gap adjustment (304 stainless steel)
* Laser-etched Recessed Markings
* PCB circuit board
* Key lever (440 stainless steel)

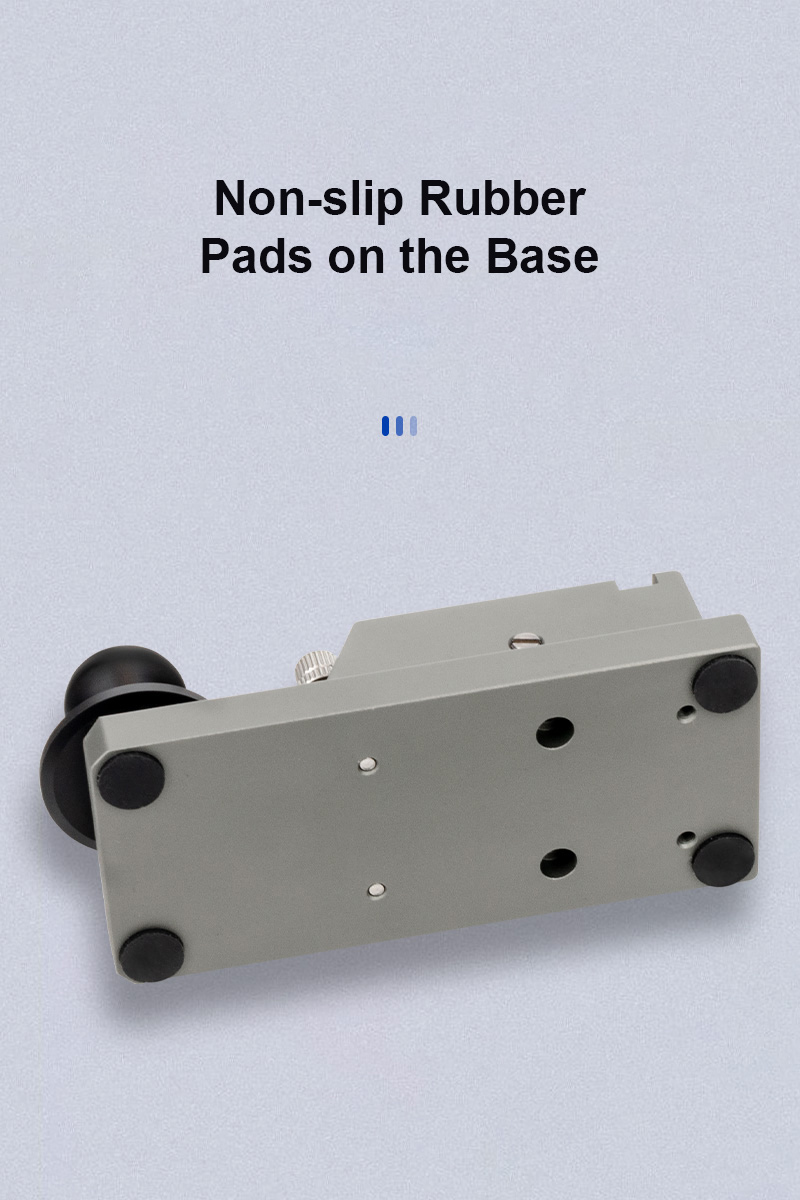

Non-slip Rubber Pads on the Base
* They ensure stability and prevent wobbling. Aside from mounting screw holes and non-slip pads, the bottom has no wire channels, resulting in a cleaner overall look.

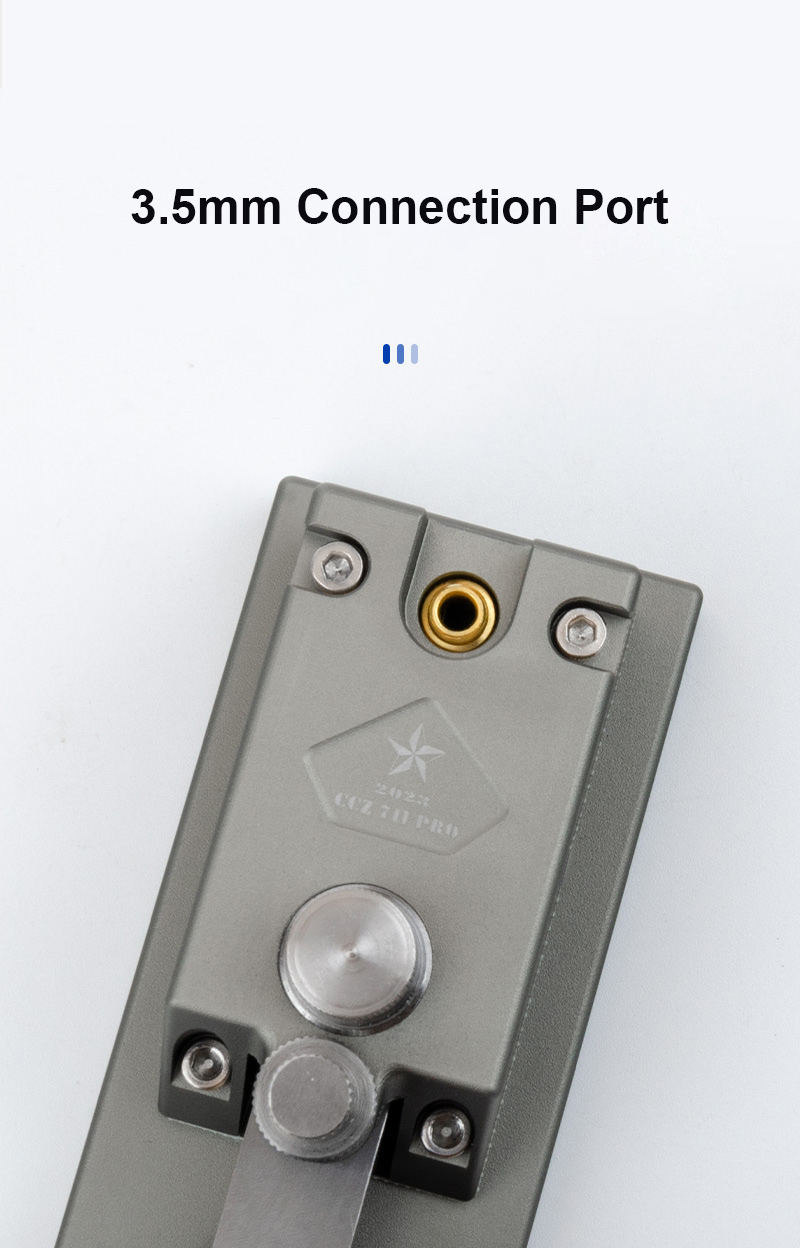

3.5mm Connection Port
* The new version retains a standard 3.5mm headphone jack, allowing enthusiasts to freely choose suitable AUX audio cables.
* It is recommended to use a 90° angled 3.5mm plug cable.

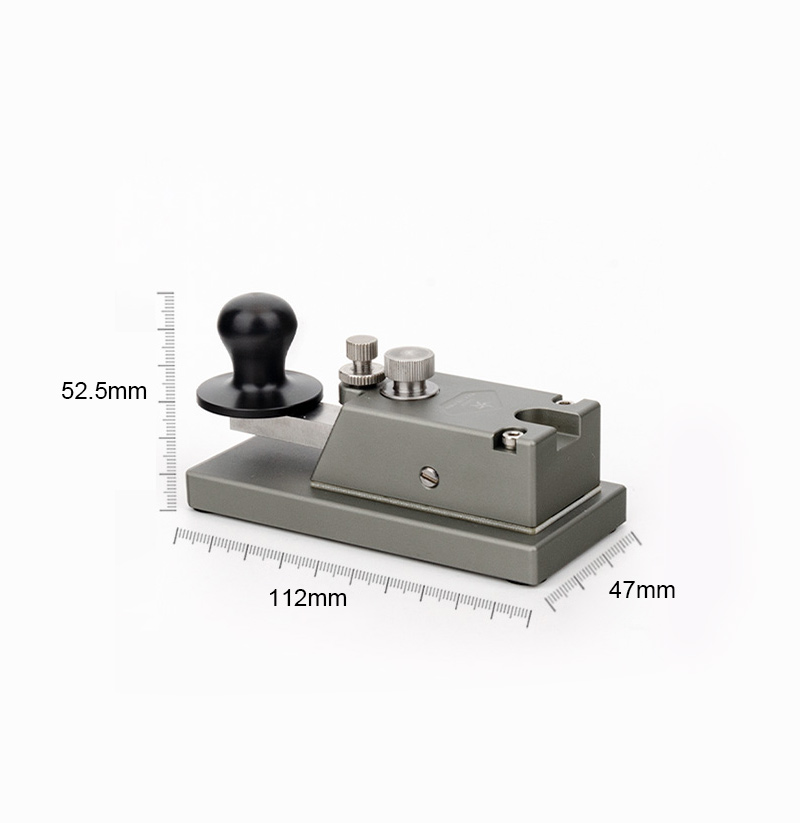

Specifications of CCZ 711 Pro CW Key:
* Weight: Approx. 310g
* Connection Port: 3.5mm
* Main Material: Aluminum Alloy

Features of CW Trainer:
- Mixed code sending in Chinese and English
- CW full-process assisted learning
- CW communications assistant
- Built-in 8 groups of custom character storage units, each unit has 60 English characters, which enables one-key transmitting
- Be connected to PC and mobile phone to send codes in Chinese and English

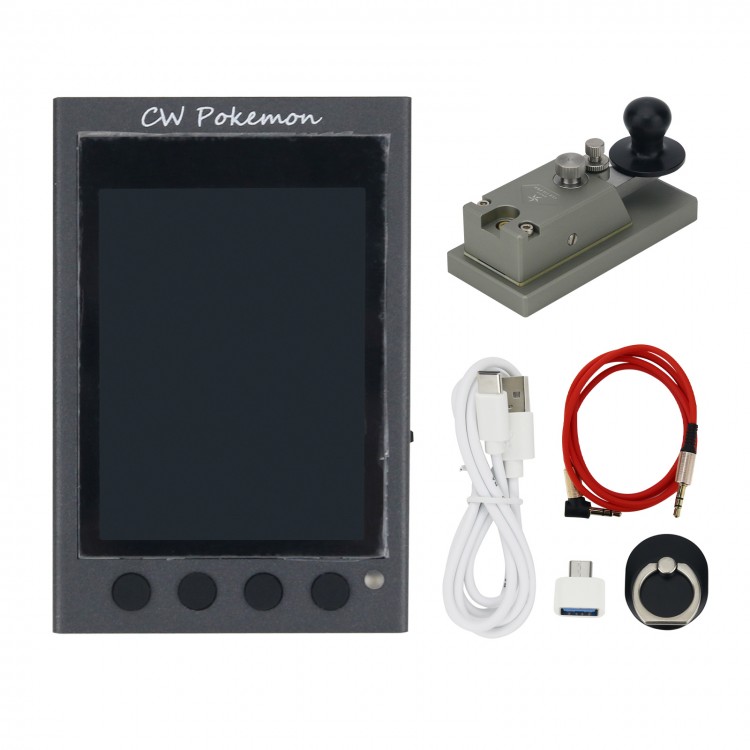

Package Included:
- 1 x Set of Morse Key + CW Trainer

Packaging Details:
- Weight: 0.75kg
