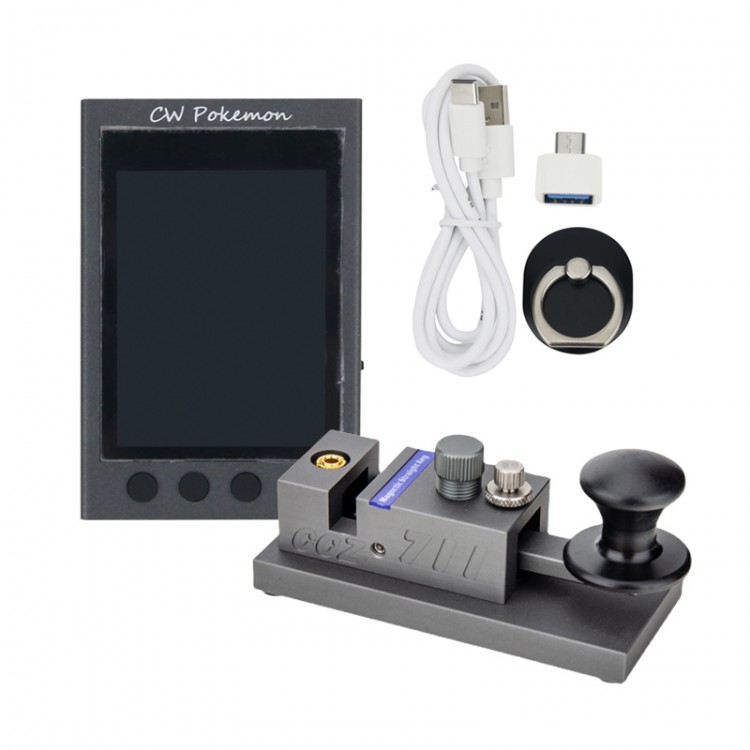

CCZ 711 Second Generation CW Key Magnetic Straight Key + PRO CW Trainer 2.8" Screen For Ham Radio

CCZ 711 Second Generation CW Key Magnetic Straight Key + PRO CW Trainer 2.8" Screen For Ham Radio

Morse Key:
Features:
- Manual Morse code key with magnetic feedback
- Magnetic push-pull rebound design (the upper and lower double magnetic circuits rebound) is adopted. Adjustable magnetic force provides users with comfortable rebound feedback. The adjustment range is about 400g~1000g/0.9-2.2 lb
- Compact size and fine workmanship. Small size 105 x 47 x 32mm/4.1 x 1.9 x 1.3". Comfortable to use
- Simple design. 115mm/4.5" depth ensuring stable performance
- The body in grey has been anodized (there will be slight color difference due to different production batches)
- The top with a 3.5mm connection port

Parameters:
- Item name: CCZ 711 CW Key
- Product Type: DIY manual Morse code key
- Product size: 105 x 47 x 32mm/4.1 x 1.9 x 1.3" (main part)
- Connection port: 3.5mm connection port
- Main body material: aluminum alloy; hard anodized surface treatment

CW Trainer:
- 2.8" large screen; 16M large capacity
- Electrostatic sprayed metal shell
- 10-hour duration time. It can last for 20 hours when the decoder board is closed. Charged one time and it can be used for a week in daily practice; it can guarantee a whole day of outdoor communications
- The whole process of CW learning assists training. Throughout all training stages of code memory, code reading, code listening and transcription, and code sending
- Four shortcut function areas, each area has four shortcut function keys. Shortcut keys cover common practice functions, custom phrases and common settings for daily communications, making it easier and faster to use. Support all Chinese characters contained in the Chinese codebook, and support mixed Chinese and English telegraph reception and transmitting messages
- Rich functional interfaces make it more convenient to use. Compatible with manual telegraph keys and automatic Morse keys. Can be connected with earphones or speakers, radio audio input, radio key control signal output. USB TYPE-C interface for charging and upgrading
- A computer and mobile phone (OTG conversion) can control an external shortwave radio station through PRO trainer for CW sending and receiving
- Easy to practice. Small size (88 x 58 x 22mm/3.5 x 2.3 x 0.9") enables one-handed operation. It can also be stuffed into a bag. In fast-paced modern life, you can make full use of fragmented time, train anytime, anywhere in the subway, cafes and the like
- Extremely light, weighing only 193g/0.4 lb. The main board and decoder board each use a 32-bit chip for ARM, with a main frequency of up to 240MHz, and a strong processing speed. The compact body integrates up to 8 functional interfaces, with strong extended functionality

Package Included:
- 1 x Set of Morse Key With CW Trainer

Note:
- Due to manual measurement, please allow slight error.
- There will be slight color difference of the CW key due to different production batches. Please make sure that you don't mind before purchasing. Thank you!
