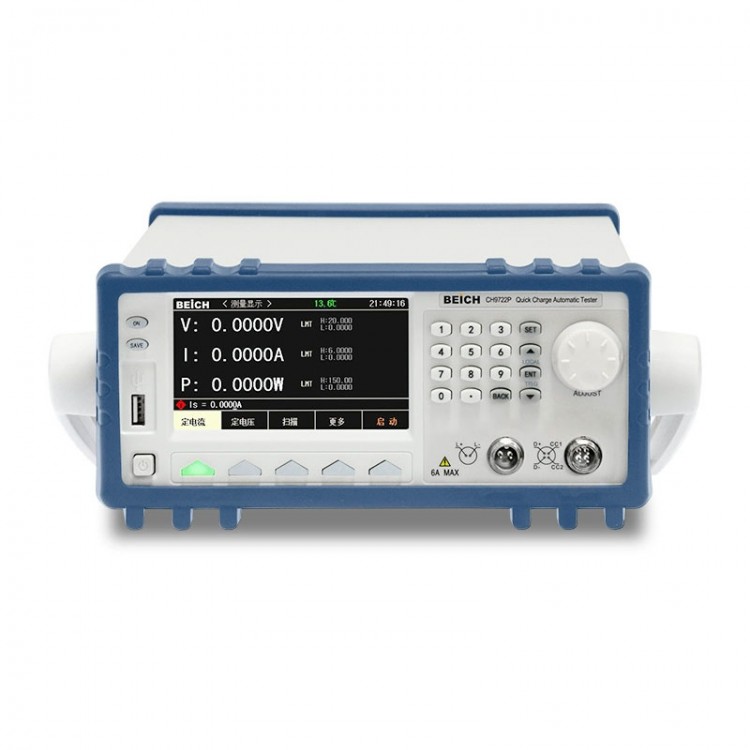

CH9722P 150W 60V 6A Automatic Quick Charge Tester Electronic Load Tester with CC/CV/CR/CP Test Modes

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,103.97
  • Price in reward points: 11040 Reward Points: 110
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,081.89 $1,059.81 $1,026.69 $982.53 Contact US
Quantity:

CH9722P 150W 60V 6A Automatic Quick Charge Tester Electronic Load Tester with CC/CV/CR/CP Test Modes

Features:

- High-precision automatic quick charge tester supports automatic trigger
- CC mode: In constant current mode, an electronic load consumes a constant current regardless of whether input voltage changes
- CV mode: In constant voltage mode, an electronic load will draw enough current to maintain the input voltage at the set voltage
- CR mode:In constant resistance mode, an electronic load is equivalent to a constant resistance, and the electronic load will change the current linearly with the input voltage
- CP mode: In constant power mode, an electronic load will consume a constant power. If the input voltage rises, the input current will decrease and the power will remain at the set power
- Multiple protection: With over-voltage, over-current, over-power and over-temperature protection and reverse polarity connection alarm, etc., it is more reliable and safer to use
- 4.3" color screen is clear and intuitive. TFT HD color screen display and Chinese/English operation interface can be used with numeric keypad and knob to set data. The operation interface is highly user-friendly, with a concise and clear display interface
- Quick to test: It can be used to test chargers supporting fast charging protocols such as FCP/SCP/PD3.0+USBpps/PD2.0/QC2.0/QC3.0/QC4+/MTK PE2.0/D+/D-
- USB data storage: A USB HOST port makes it convenient to record data and upgrade firmware.
- The 4.3-inch color screen can display load and fast charging voltage trigger interface at the same time
- 12 protocols, ripple test and OCP (over-current protection) test are supported
- It supports protocol detection to automatically obtain the charging protocol carried by your chargers
- Powerful list test mode, automatically triggered voltage, and CC1/CC2 and D+/D- automatic flip
- With a decoder chip, it can be used to test charging cables for iPhone
- It supports mixed protocol list programming and multi-port switched for continuous testing
- High display resolution: voltage up to 0.1mV and current up to 0.1mA
- Copy the screen with one click, easily save and transfer the content displayed on the screen
- Handler and RS232 interfaces facilitate signal output and data communication
- Dimensions: 215 x 350 x 88mm/8.5 x 13.8 x 3.5" (WxDxH)
- Standard chassis size makes it easy to put on a shelf

Package Included:
- 1 x CH9722P
