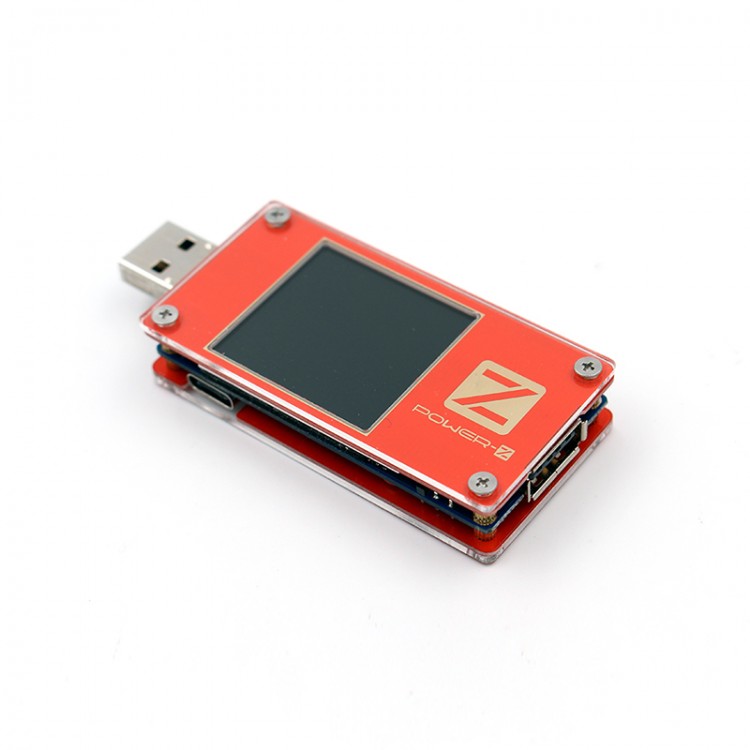

ChargerLAB POWER-Z USB PD Tester MFi identification PD decoy instrument KT001

Features:

The POWER-Z KT001 can be used to test all the phone, rechargeable chargers, chargers, and USB PD Type-C notebooks, and the charging voltage and current of the tablet. Support QC3.0, QC2.0, AFC, FCP, PD trigger and has the agreement automatic detection function.

Fuction:

- size: 77*35*14mm

- LCD size: 1.44 inch
- LCD type； TFT
- resolution: 128*128
- languange: English/Chinese/ japanese
- interface type: USB-A/Micro USB/Type-C
- interface quantity；5 (1x HID）
- interface impendence: 28m ohm
- operate type: Trackwheel
- Independent power supply; HID 5V
- woking current； 0.4mA/5v
- Voltage accuracy:0.0001V
- current accuracy: 0.00001A
- Voltage measuring range: 4-26V
- current measuring range: 0-6A
- Offline record group number: 350*4 group
- D+/D- voltage display : support
- Screen Rotation: not support
- QC2.0/ QC3.0/ AFC /FCP /USB PD/ trigger； support
- Type-C Line resistance test； support
- MFI data line identification： Auto
- Fast charge protocol automatic detection： Auto asking
- Apple 2.4A accelerate: support
- Clock/ temperature display: support
- USB firmware update； support

Interface:

- The POWER-Z KT001 is equipped with five connectors and two keys.

Interface function: to detect the USB-A male and USB-A mother between the two-way current, Type-C input and Type-C output interface between the two-way current and Type-C input to the USB-A mother Of the current.
USB PD lure switch: the default is off, PD lure when the switch to the "ON" position, after the end of its back to "OFF" position can be.
Click a button shuttle: the main interface switch, option confirmation;
Double-click a button shuttle: exit and so on;
Left key: fast charge trigger, option switch;
Right: Curve information, options to switch.

Package Included:

1 x ChargerLAB POWER-Z USB PD Tester Voltage Current Dual Type-C Meter FL001
