1 x ChargerLAB POWER-Z USB PD Tester Voltage Current Ripple Dual Type-C Meter KM001
Description:
POWER-Z KM001 Update Log: User's Guide, Firmware Client Download and FAQ
ChargerLAB
is a focus on the field of charging the English site, its brand
"POWER-Z" is currently a measure of USB PD instrument can be measured
KM001, powerful to make people surging. With
the previous market can only be used to test the PD instrument is
different from the table fully taking into account the complexity of the
charging physical interface replacement, as well as the diversity of
charging protocols, the most common USB-A interface, MicroUSB port , Type-C interface integrated together, in addition to professional
USB PD measurement, but also can be used to measure QC3.0 / 2.0 and
other fast charge

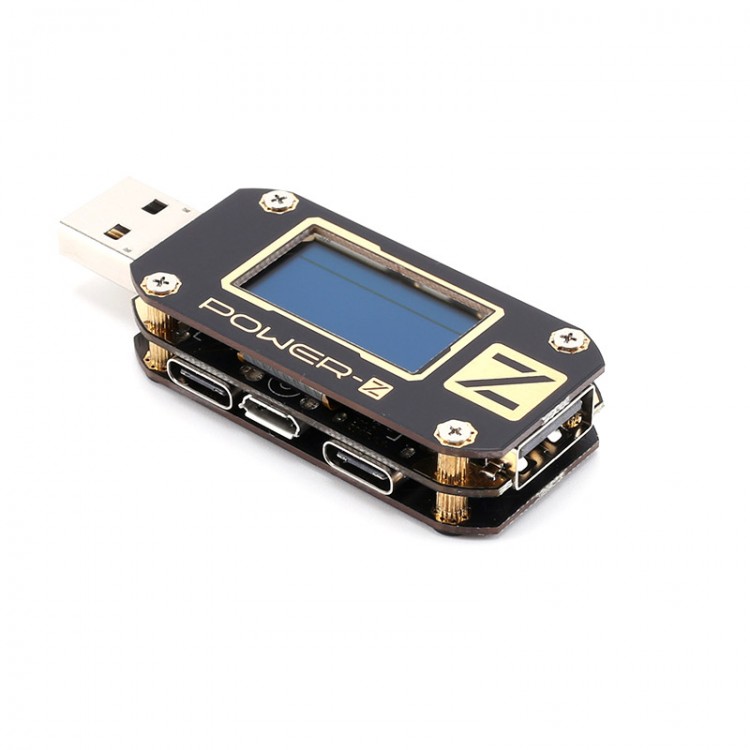

POWER-Z KM001 comes with an OLED screen resolution of 128 × 64. The
front panel with black glass fiber gold-plated, four corners of the use
of immersion gold hole fixed, the appearance and size of the USB table
is no different from ordinary, ordinary users will soon be able to get
started. USB table built-in a measurement accuracy of 0.02%, temperature drift for the 10ppm voltage and current ADC dedicated chip. At
the same time in order to ensure the accuracy of the current, but also
integrates a typical temperature drift of 20ppm, power of 3W
high-quality sampling resistor. Up to 0.01% error.
POWER-Z KM001 This test table integrates a total of six USB ports, to meet the needs of most of the players test. Another feature of it is to support ripple testing. Its function is similar to a micro-oscilloscope, you can test less than 50Hz ripple, the daily use of enough.
Package Included:
