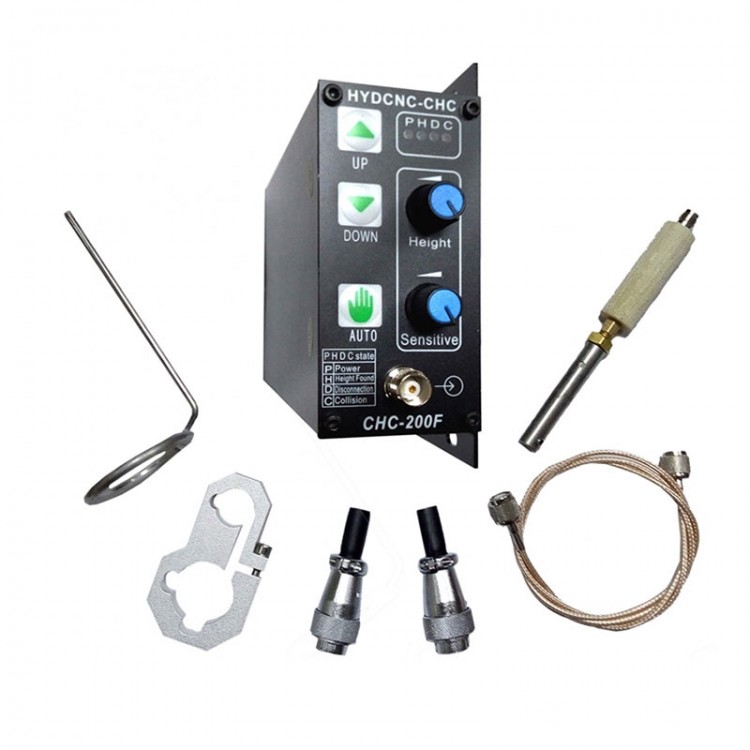

CHC-200F Capacitive Torch Height Controller Kit Torch Height Control For CNC Flame Cutting Machines
Description:
CHC-200F torch height controller is designed with high-performance 32-bit processor for ARM combined with analog circuit design, and its interface installation size is compatible with old versions (CHC-200D, CHC-200E).
It uses a high-performance 32-bit processor for ARM Cortex-M3 core, combined with an analog closed-loop circuit, detects the distance by detecting the capacitance between the metal probe ring and the detected metal workpiece, and automatically follows the device to set heights.
It is suitable for CNC flame cutting equipment, YAG laser cutting and other equipment that requires automatic height adjustment.
Advantages:
- High-speed and stable operation
- Dual-speed mode
- Anti-interference
- Easy installation
- PWM stepless speed regulation
Main Features:
- A new generation of patented products, adding automatic gain control, PWM stepless speed regulation, to achieve high-speed, high-precision, smooth and stable tracking
- Two-speed mode, jog low speed during manual adjustment, long press for high speed operation
- Probe induction automatic recognition and one-key calibration, easy to use, no need for tedious debugging, reducing debugging time
- Automatic detection of anti-collision, disconnection protection function, follow-up signal output
- Power indicator, automatic balance point arrival indicator, high-frequency cable disconnection indicator, probe collision indicator
- Membrane operation panel, dustproof and waterproof, knob adjustment, simple and fast
- Aluminum alloy shell, metal shielding, anti-interference, stable and reliable, good heat dissipation, beautiful appearance, easy installation
Technical Parameters:
- Working voltage: DC 20-36V or AC 24V±10%, 50Hz/60Hz
- Adapted motor: DC 18-24V DC motor
- Drive mode: PWM
- Output current: 1A~4A
- Positioning accuracy: ±0.05mm
- Sensing distance: 1mm~40mm
- High frequency cable length: default 1300mm (200mm~1800mm)
- Working temperature: torch height control -10 to 60℃, high frequency cable -10℃ to 200℃, probe ring -10℃ to 350℃
- Dimensions: 176mm*130mm*50mm
Package Included:
- 1 x Set of Torch Height Controller
