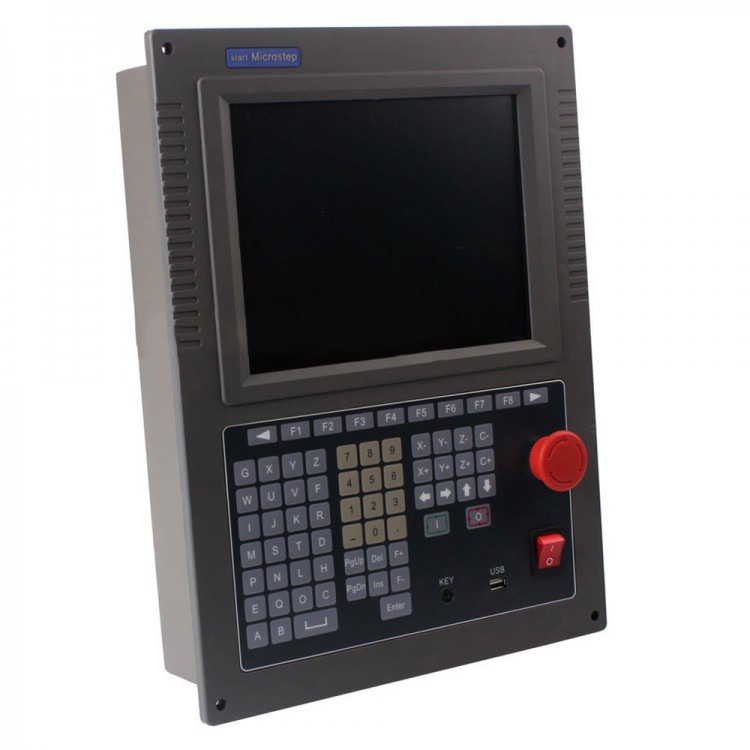

SH-2200H 10.4” Screen CNC Control System For Flame Plasma Cutting Machine THC

Availability: In stock, usually dispatched in 1 business day

  • Price:$483.70
  • Price in reward points: 4837 Reward Points: 48
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $474.03 $464.35 $449.84 $430.49 Contact US
Quantity:

SH-2200H 10.4” Screen CNC Control System For Flame Plasma Cutting Machine CNC Controller

Description:

- SH-2200H flame/plasma CNC cutting controller is specially designed for gantry cutting machines. It has perfect cutting technology and 10.4”color display screen and integrated keyboard panel. It keeps the desgin tradition of and 20-year cutting experience and get all client’s acceptance.

Function Feature

It adopts industrial ARM chip, superlarge scale integrated high-speed hardware interpolator, low consumption, low heat, no need to compulsive heat dissipation, reliable and steady hardware.

Rich software functions, freely change between flame and plasma, adjust preheat delay, piercing troch up and down delay, piercing delay and so on according to different steel plates and machines.

It has following functions, steel plate alignment, kerf compensation, broken point recover, original track back to cut, transfer to cuting, start from random program, piercing point choice, torch random position to adjust and choose, prerun outline, spin parts, mirror, array, zoom in scale and so on.

Cutting program preprocess function, additional electronic gear adjustment, inflexion point auto speedup and speeddown, equal different up and down.

Operating Interface in Chinese and English, dynamic graphic display, dynamic imitating cutting track, real-time display cutitng state and input/output state

There is a standard graphic library and simple nesting function. Convenient operation for users, manual program by in-built or external keyboard

?It’s compatible with IBE, FASTCAM and other CAD/CAM nesting software. U disk reads program and software upgrade.

Handheld remote controller is optional. It has functions of moving, positioning, speedup, speeddown, cutting processing and so on.

Specifications

1. certification ,CE ,ISO
2..cnc control system for gantry cutting machine
3..Industrial ARM7 CPU
4.G code , USB,CAD/CAM

CNC Control System Specifications

1. Industrial ARM process core, large-scale gate array hardware interpolator

2. 10.4” true color LCD display

3. Internal caching preprocessing technology ensures processing continuity

4.Freely shift cutting technology between plasma and flame by one key

5. Embeded features of cutting industry. Automatic ignition

6. New algorithm and small line smoothing functions

7. Stable and continuous process. No pause between program segments

8. Help’s menu with full function prompt. Direct and easy to learn

9. Set acceleration or deceleration freely

10. Newly added arc voltage torch height controller function

11. Dynamic graphic display, scaling, mirroring and rotating of cutting image

12. Electronic gear regulator enables a controller to different machines

13. Perfectly compatible with CAD/CAM and various nesting softwares, such as IBE

14. Deferment, pre-heat, piece, flame radius compensation, continuous regression and power failure recovery

Major Technical Specifications

Model

SH2200H-QG

Processor

Industrial ARM7 CPU

Display

10.4”Color LCD

System offers

Input 16 ports, output 14 ports

Synchronization

2 axes, can extend to 4 axes

Max. speed

When the Pulse Equivalence is 1μ, max speed is 6m/minute

Pulse Equivalency

Electronic gear, numerator and denominator can reach to 1-65535

User’s program space

64M-128M

Machine case size

410*310*119(mm)
