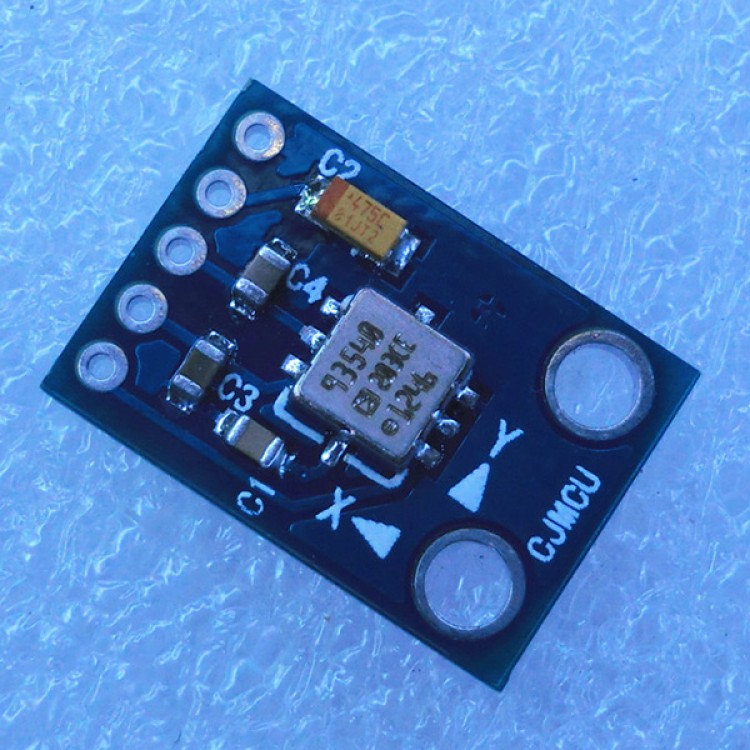

CJMCU - 21 ADXL203CE Module Adxl103 Acceleration Sensor High Precision

CJMCU - 21 ADXL103 Module Adxl103  Acceleration Sensor High Precision

Descriptions:
- The ADXL103 is high precision, low power, complete single- and dual-axis accelerometers with signal conditioned voltage outputs, all on a single, monolithic IC. The ADXL103 measure acceleration with a full-scale range of ±1.7 g, ±5 g, ±18 g. The ADXL103 can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity).

Specifications:
- High performance, single-axis accelerometer on a single IC chip
- 5 mm x 5 mm ×x2 mm LCC package
- 1 mg resolution at 60 Hz
- Low power: 700 µA at VS = 5 V (typical)
- High zero g bias stability
- High sensitivity accuracy
- –40C to +125C temperature range
- X and Y axes aligned to within 0.1deg (typical)
- BW adjustment with a single capacitor
- Single-supply operation
- 3500 g shock survival
- RoHS-compliant

Package included:
-  1 x CJMCU - 21 ADXL103 Module
