CM4-IO-BASE-A Expansion Board CM4 IO Board w/ USB HDMI Adapter For Raspberry Pi Compute Module 4

CM4-IO-BASE-A Expansion Board CM4 IO Board w/ USB HDMI Adapter For Raspberry Pi Compute Module 4

Features:

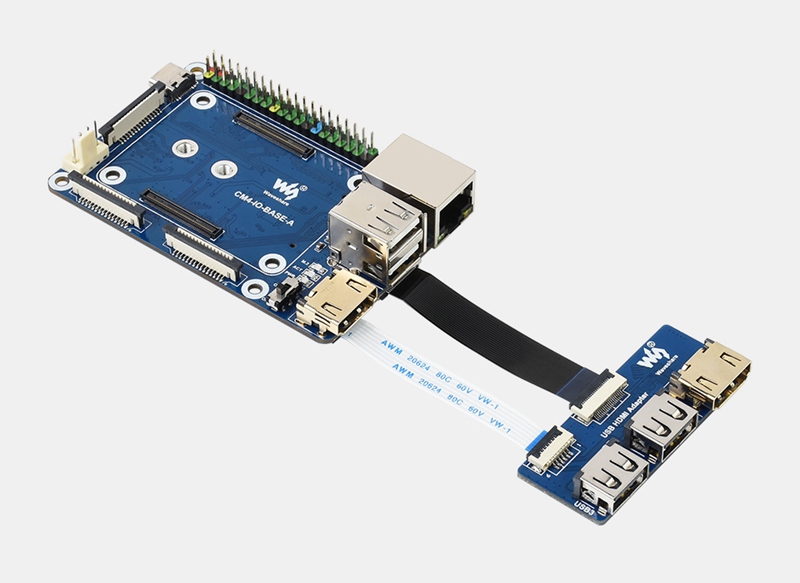

- CM4-IO-BASE-A with an USB HDMI adapter for Raspberry Pi Compute Module 4. More USB and HDMI connectors via FFC
- Mini base board for Compute Module 4. Suitable for evaluating Raspberry Pi CM4 or being integrated into end products. Powerful functions in a credit card sized body
- Connecting with Compute Module 4. Standard CM4 socket and color-coded 40PIN GPIO header for Raspberry Pi. Suitable for Compute Module 4 Lite/EMMC series module

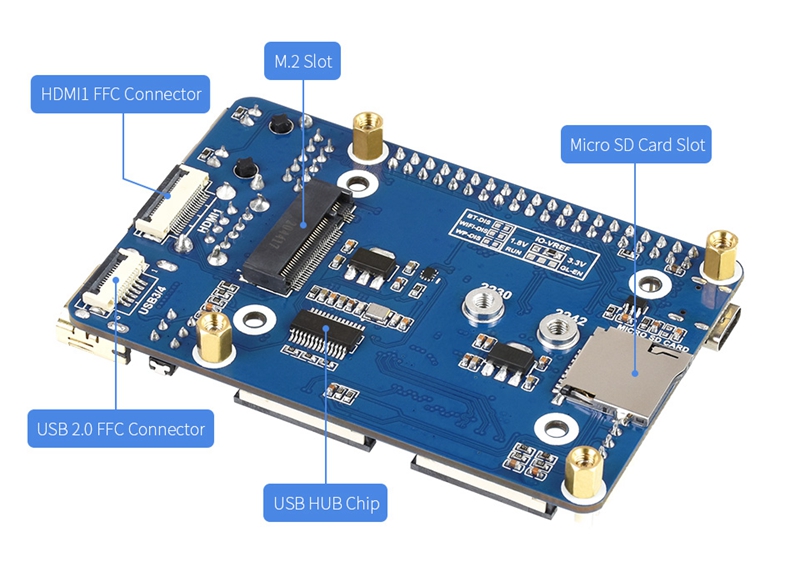

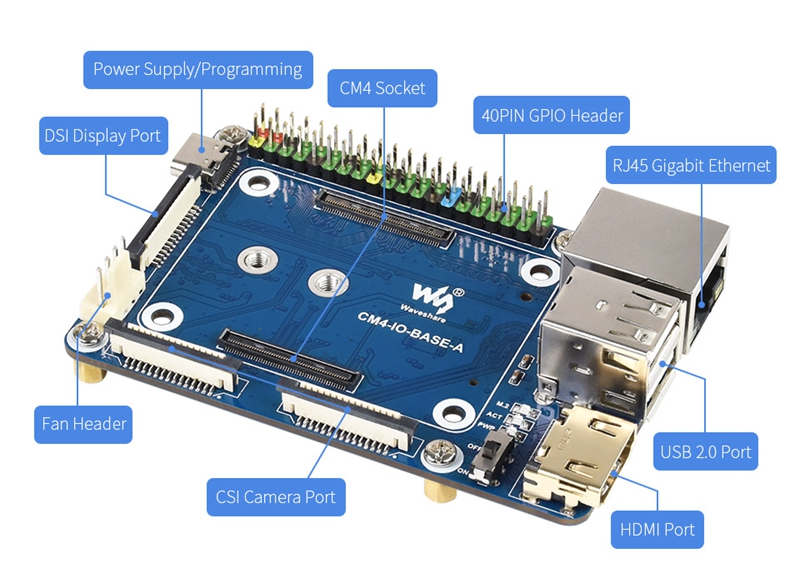

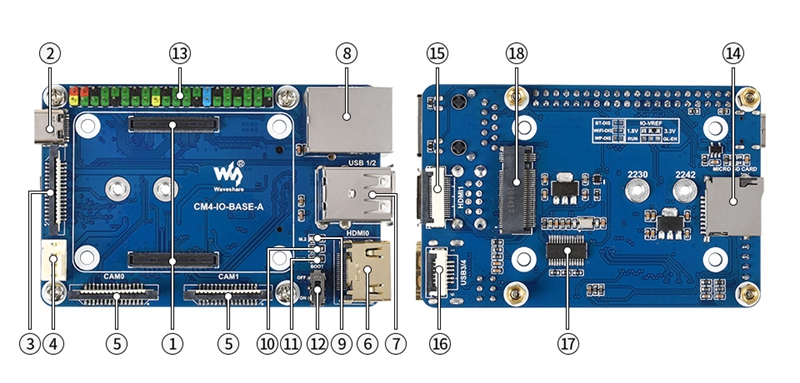

- Compact size and complete functions. Onboard multiple connectors including CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot
- Application Example: such as working with displays and cameras, and working with an additional SSD

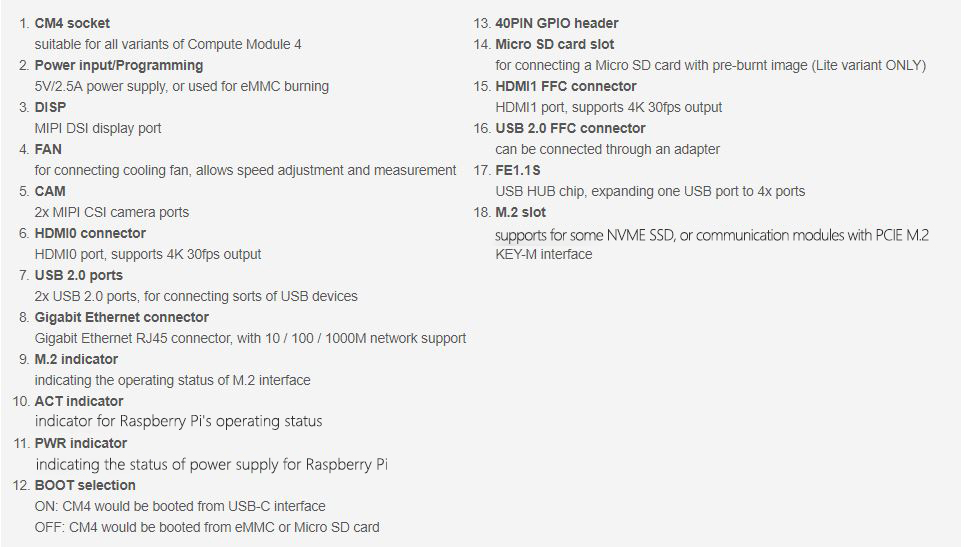

Specifications of CM4-IO-BASE-A:
- CM4 SOCKET: suitable for all variants of Compute Module 4
- NETWORKING: Gigabit Ethernet RJ45 connector. M.2 M KEY, supports communication modules or for NVME SSD
- CONNECTOR: 40PIN GPIO header for Raspberry Pi
- USB: USB 2.0 Type A x 2, USB 2.0 via FFC connector x 2
- DISPLAY: MIPI DSI display port (15pin 1.0mm FPC connector)
- CAMERA: MIPI CSI-2 camera port x 2 (15pin 1.0mm FPC connector)
- VIDEO: HDMI port x 2 (including one port via FFC connector), supports 4K 30fps output
- RTC: N/A
- STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- FAN HEADER: no fan control, 5V
- POWER INPUT: 5V

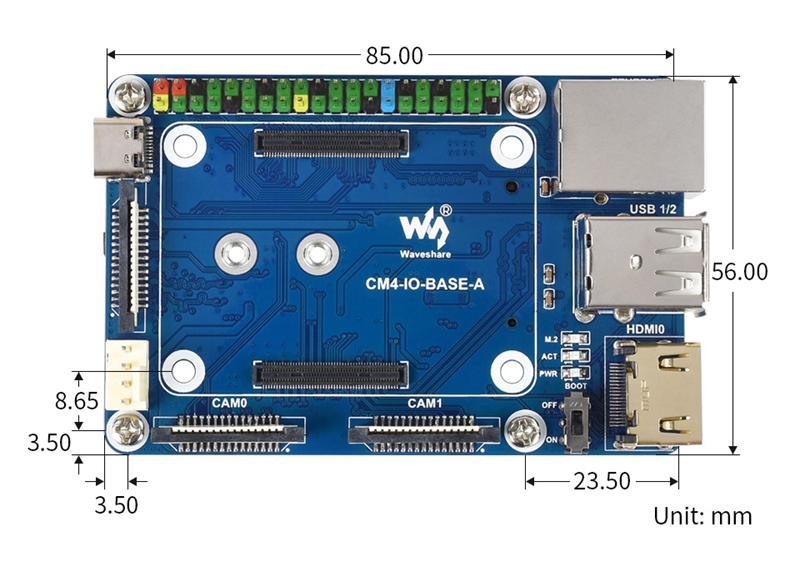

- DIMENSIONS: 85 x 56mm/3.3 x 2.2"

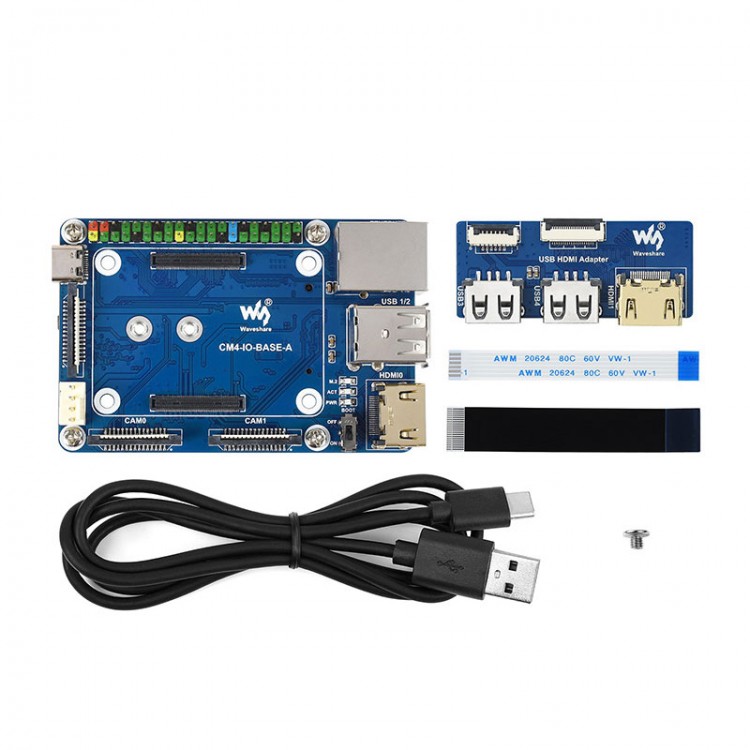

Package Included:
1. CM4-IO-BASE-A x1
2. USB HDMI Adapter x1
3. FFC cable 6PIN 1.0 pitch 60mm/2.4" x1
4. FFC cable 20PIN 0.5 pitch 60mm/2.4" x1
5. USB cable type A to type C 1m/3.3ft x1
6. SSD mounting screw x1
