CM4-IO-BASE-B CM4 IO Board Kit With USB HDMI Adapter USB Cable For Raspberry Pi Compute Module 4

CM4-IO-BASE-B CM4 IO Board Kit With USB HDMI Adapter USB Cable For Raspberry Pi Compute Module 4

Features:
- CM4-IO-BASE-B + USB HDMI adapter

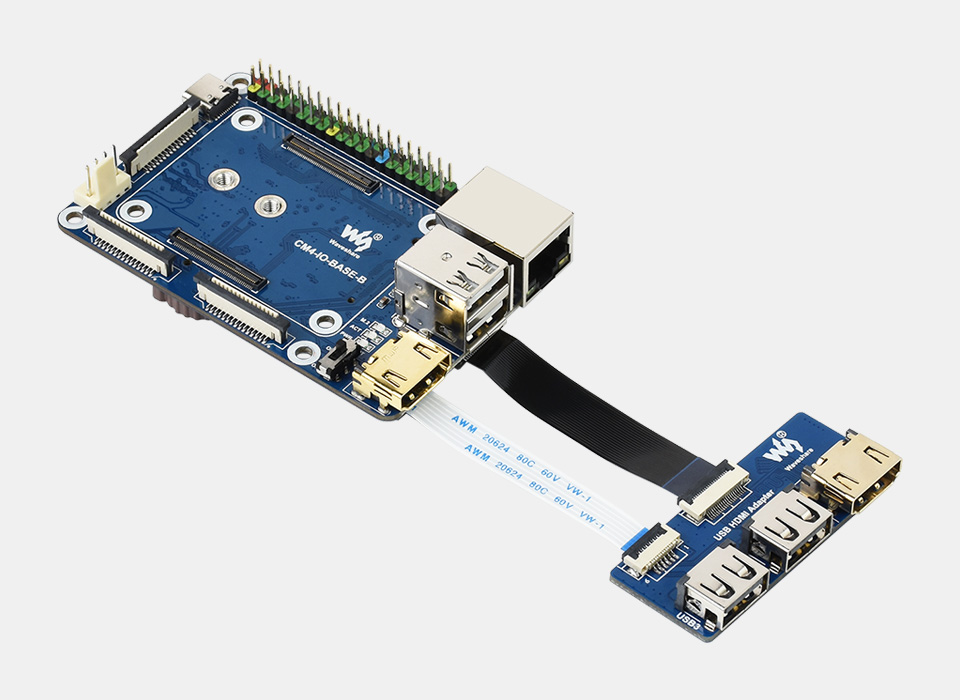

- More USB and HDMI connectors via FFC
- Mini base board for Compute Module 4
- Suitable for evaluating Raspberry Pi CM4 or being integrated into end products
- Powerful functions in a credit card sized body
- Standard CM4 socket and color-coded 40PIN GPIO header for Raspberry Pi. Suitable for Compute Module 4 Lite/eMMC series module

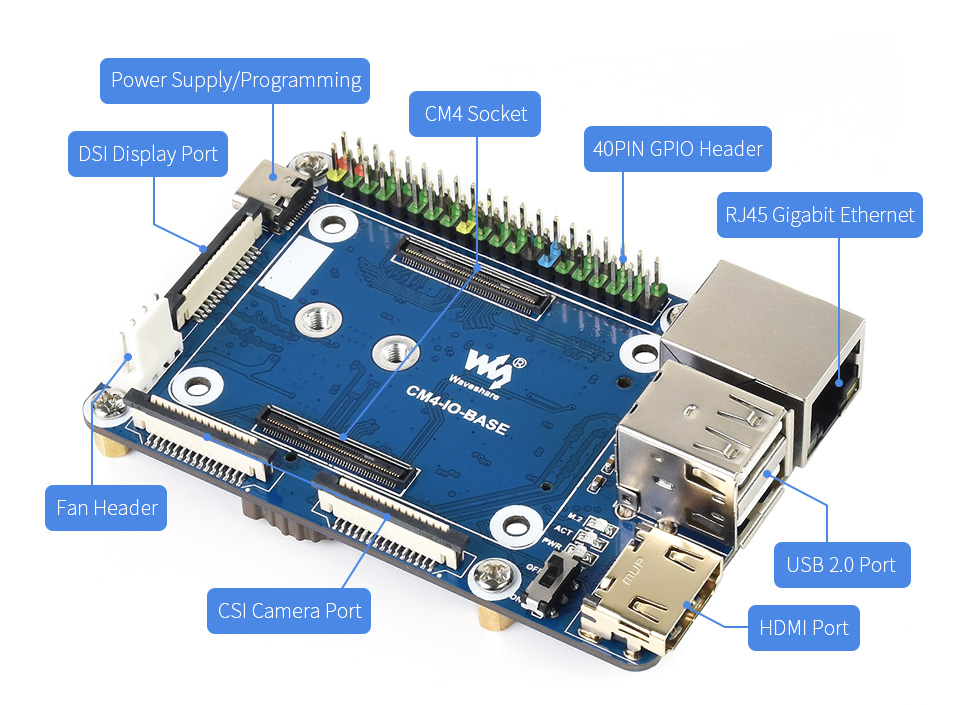

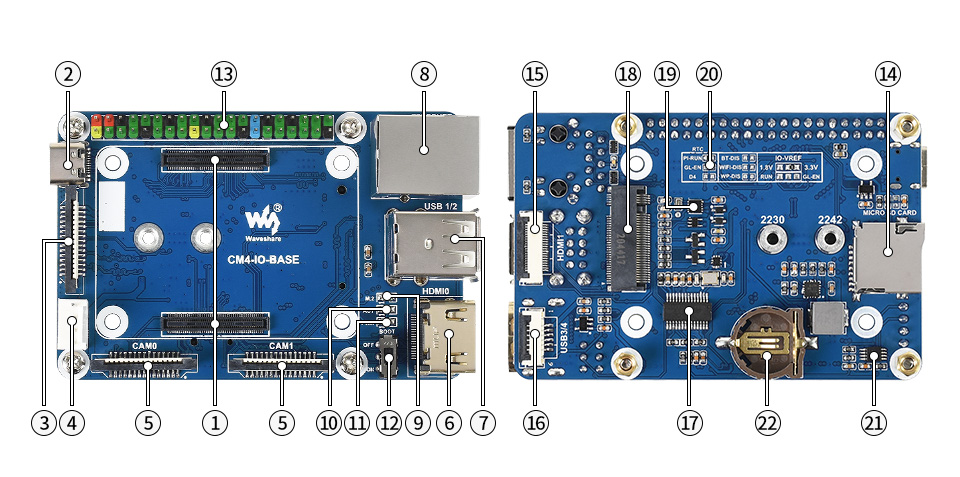

- Compact size with complete functions. Onboard multiple connectors including CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot

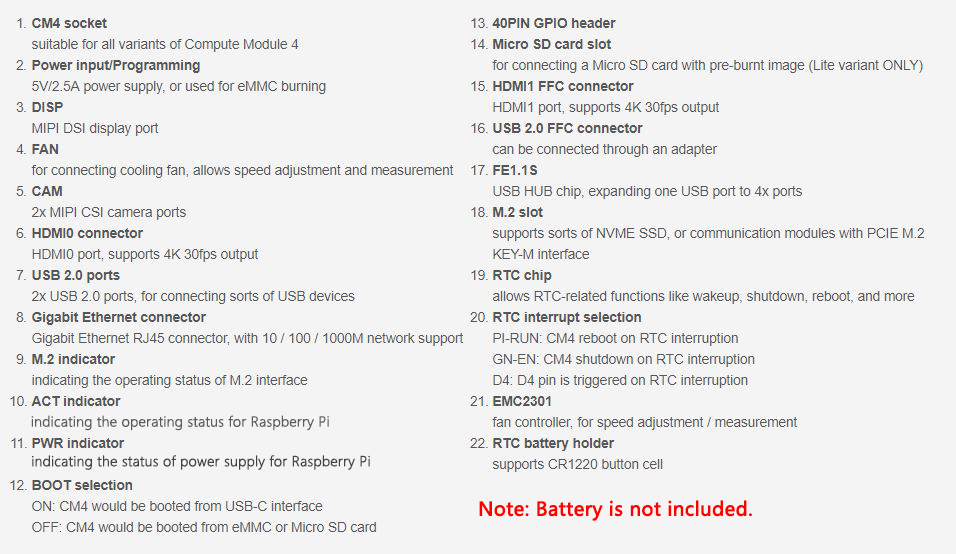

Specifications of CM4-IO-BASE-B:
- CM4 socket: suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector. M.2 M KEY, supports communication modules or NVME SSD
- Connector: 40PIN GPIO header for Raspberry Pi
- USB: USB 2.0 Type A x 2, USB 2.0 via FFC connector x 2
- Display: MIPI DSI display port (15pin 1.0mm FPC connector)
- Camera: MIPI CSI-2 camera port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI port x 2 (including one port via FFC connector), supports 4K 30fps output

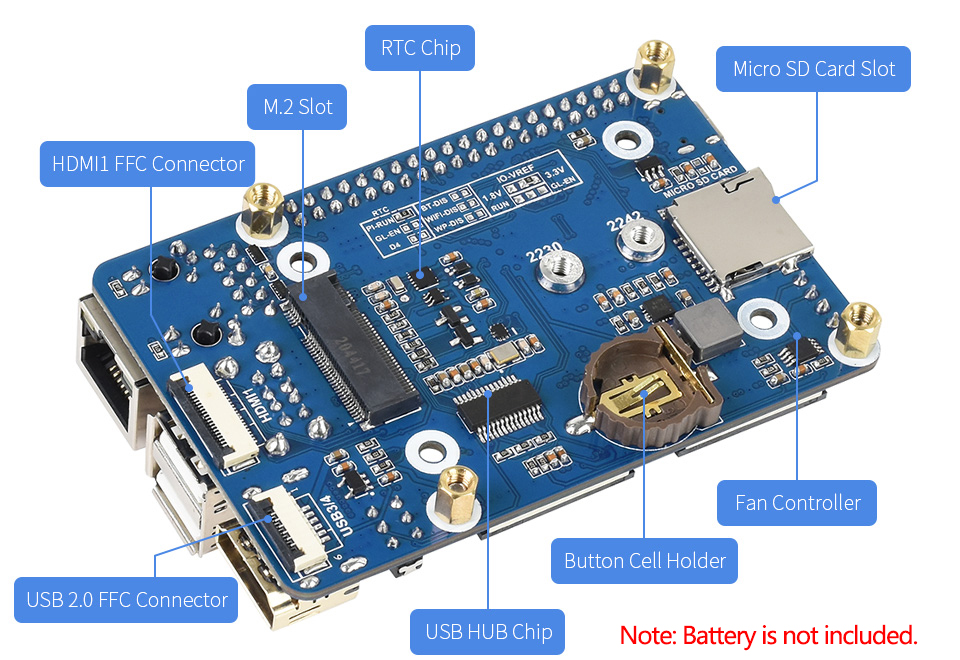

- RTC: Real-time clock with battery socket and ability to wake Compute Module 4 (battery is not included)
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan header: allows speed adjustment and measurement, 5V
- Power input: 5V
- Dimensions: 85 x 56mm/3.3 x 2.2"

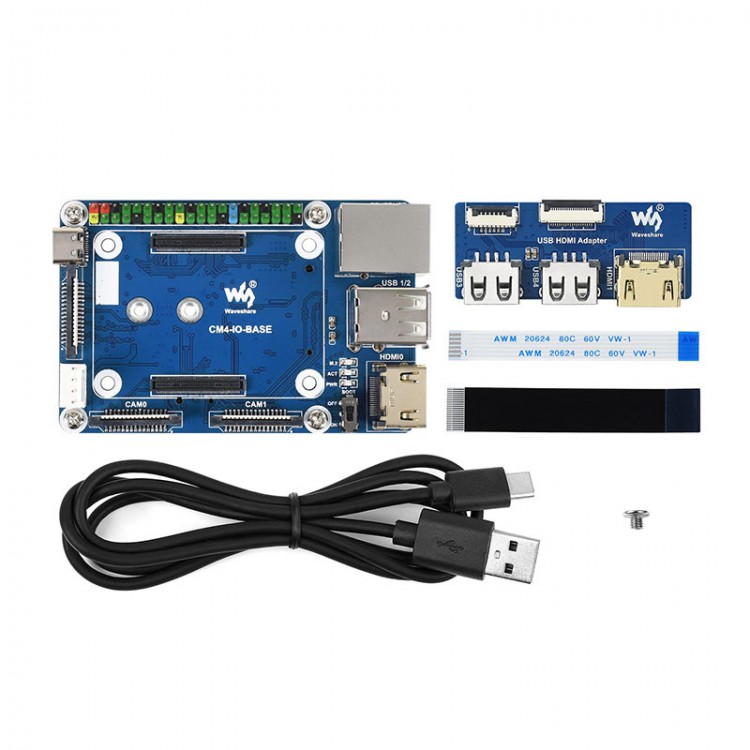

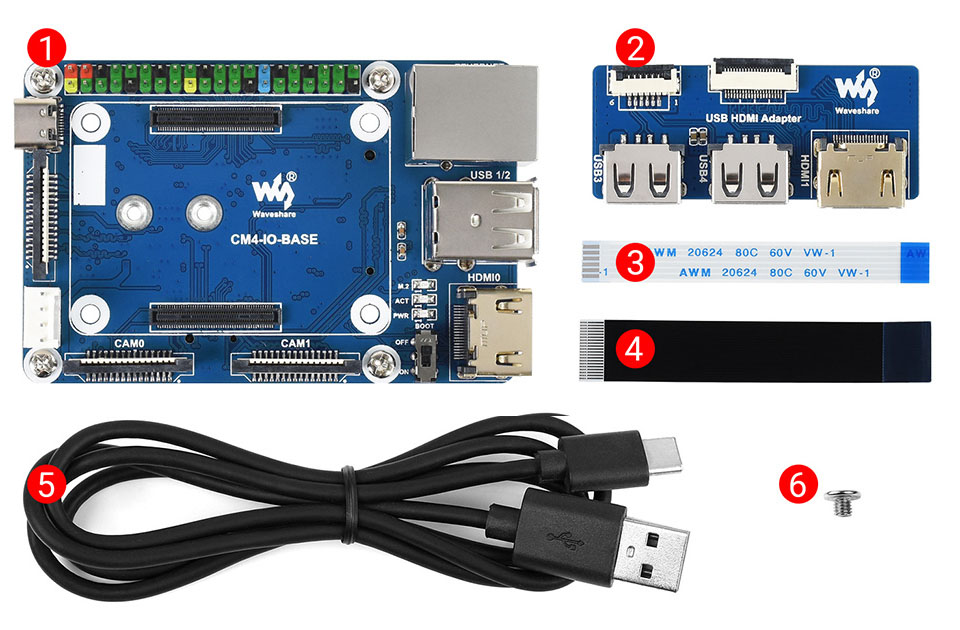

Package Included:
1. CM4-IO-BASE-B x1
2. USB HDMI Adapter x1
3. FFC cable 6PIN 1.0 pitch 60mm/2.4" x1
4. FFC cable 20PIN 0.5 pitch 60mm/2.4" x1
5. USB cable type A to type C (about 1m/3.3ft) x1
6. SSD mounting screw x1

Note:
- Other items mentioned above are not included in the package, for demonstration purposes only. Thank you for your understanding!
- Battery is not included. CR1220 button cell is recommended.
