CNC Driver Board Breakout Board USB MACH3 Engraving Machine 5 Axis with MPG Handwheel Stepper Motion Controller Card
Description:
- Five Optocoupler Isolation Input Signal Interfaces: Limit switch, emergency stop switch, auto tool zero sensor, home switch, NPN sensor switch can be connected.
- 5-Axis: Support for CNC controlled 5-Axis can connect five stepper motor drivers or servo drivers.
- Add The Enable Signal Interface: Can be used to control the driver enable signal.
- Suitable System: Support for Windows XP, for Windows 7 32/64bit, for Windows8, for Windows10 operating system.
- Application: Applicable to all versions of mach3 software.
- Four Universal Output Signal Interfaces: The maximum output 500MA current, can drive relays, solenoid valves, used to control mist, pumps, cylinders, and other equipment.
- Inverter Control Signal Interface: Output 0-10V speed control signal, PWM speed control signal, spindle start control signal, used for mach3 software to control spindle's speed, start and stop.
Specification:
- Package size: 21 x 10 x 10cm
- The power of control card: voltage 12-24VDC, current more than 500MA.

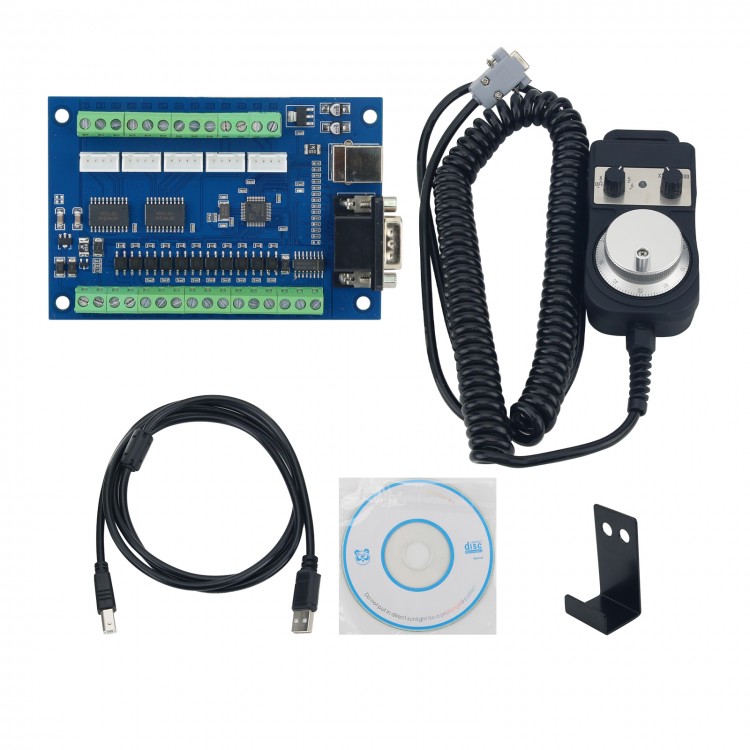

Package Included:
- 1 x CD (If you have not receive the CD, the QR code provided below is the content of the CD. You can extract the content yourself.)
- 1 x Blue 5-Axis Control Card
- 1 x Data Cable
- 1 x MPG Handwheel
