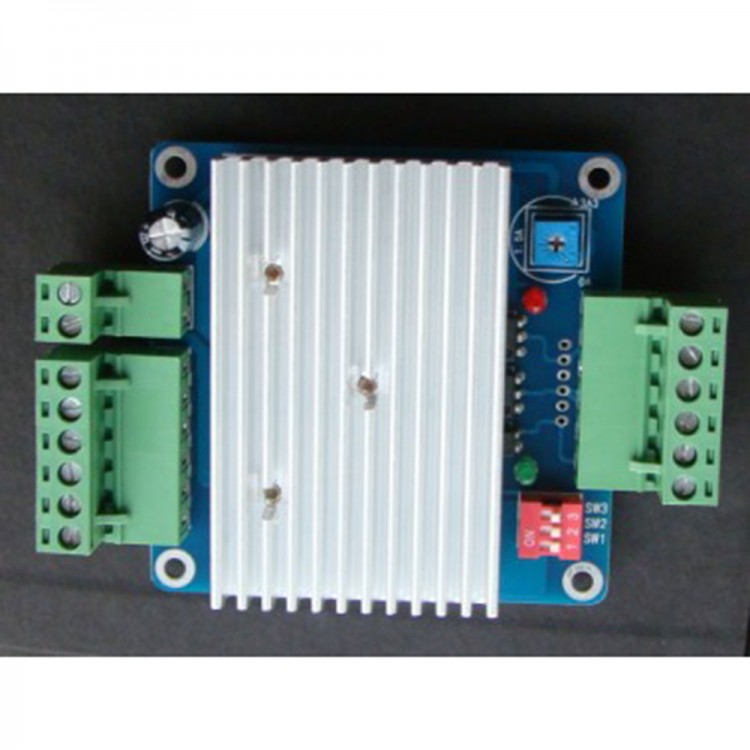

CNC Engraving Machine JC3A3I Stepper Motor Driver Board Controller with Cable for 3.3A 6TVL Motor
Description:
- Working voltage DC 10V-40V.
- High speed optocoupler isolation input, complete isolation to prevent mutual interference.
- Original chip, the internal DMOS tube, (field effect tube).
- Rated maximum output is: + 3.3A, low output impedance, source 0.3, receiver 0.4
- Suitable for 42, 57, 86 step motor within 3.3A 2 phase/4phase/4 tvl/6tvl step motor, but not for over 3.3A ones
- Automatic half flow attenuation.
- Current regulation using potentiometer 0-3.3A no pole setting current.
- Subdivision: the whole step, half step, 4 segments, 8 segments, 16 segments, the maximum 16 subdivision.
- Dimension: 70* 74.5* 30 (MM)
- Protection function, full protection drive, over current protection, overload protection, short circuit protection, fault phase protection, fault line protection, over heat protection, under voltage protection, reverse protection
- With cable for 3-axis developing to 4 axis and 5 axis
Package included:
- 1 x Step Motor Control Driver board
