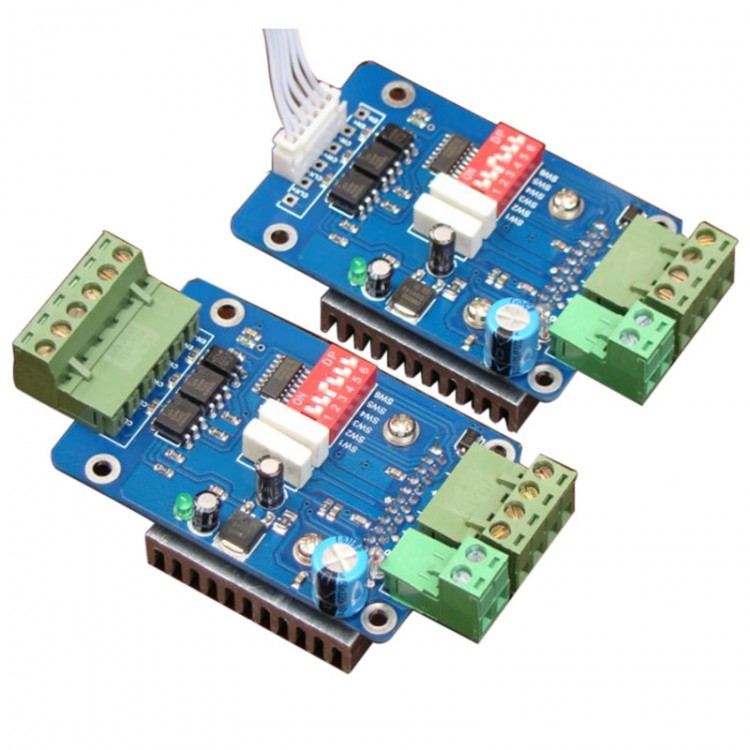

CNC Engraving Machine Step Motor Drive Board Expansion Board TB6560 Single Axis with Radiator

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.53
  • Price in reward points: 155 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.22 $14.91 $14.44 $13.82 Contact US
Quantity:

CNC Engraving Machine Step Motor Drive Board Expansion Board TB6560 Single Axis with Radiator

Description:

- Working voltage :12V-40V DC. (the input port has reverse protection diode and fuse)
- High speed optocoupler isolation input, complete isolation to prevent mutual interference
- Stepper motor driver using TB6560 new original chip, the internal is the DMOS double H bridge, (field effect tube).
- Rated maximum output is: + -3A, 40V, peak 3.5A, low output impedance, source 0.5Ohm, receiving end 0.4Ohm, low voltage shutdown, thermal shutdown protection.
- Suitable for 42, 57, 86 step into the 3.5A two/ four phase / four tvl / six tvl stepper motor, is not suitable for more than 3.5A of the stepper motor.
- Automatic flow attenuation.
- Size: 50*  73*  30 (MM) W*L*H
- Subdivision: full step half step, 1/8  step, 1/16 step, max. 16 segments

Package included:
- 1 x Step Motor Drive Board
